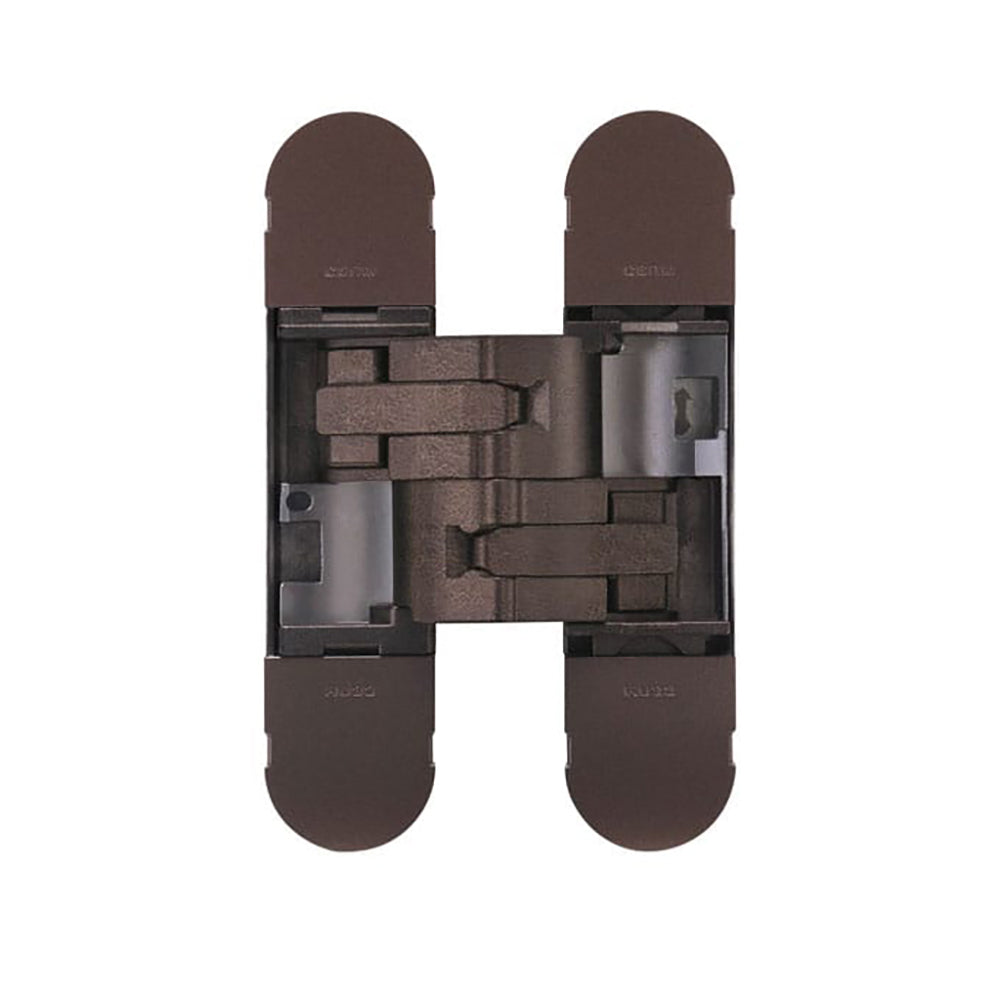

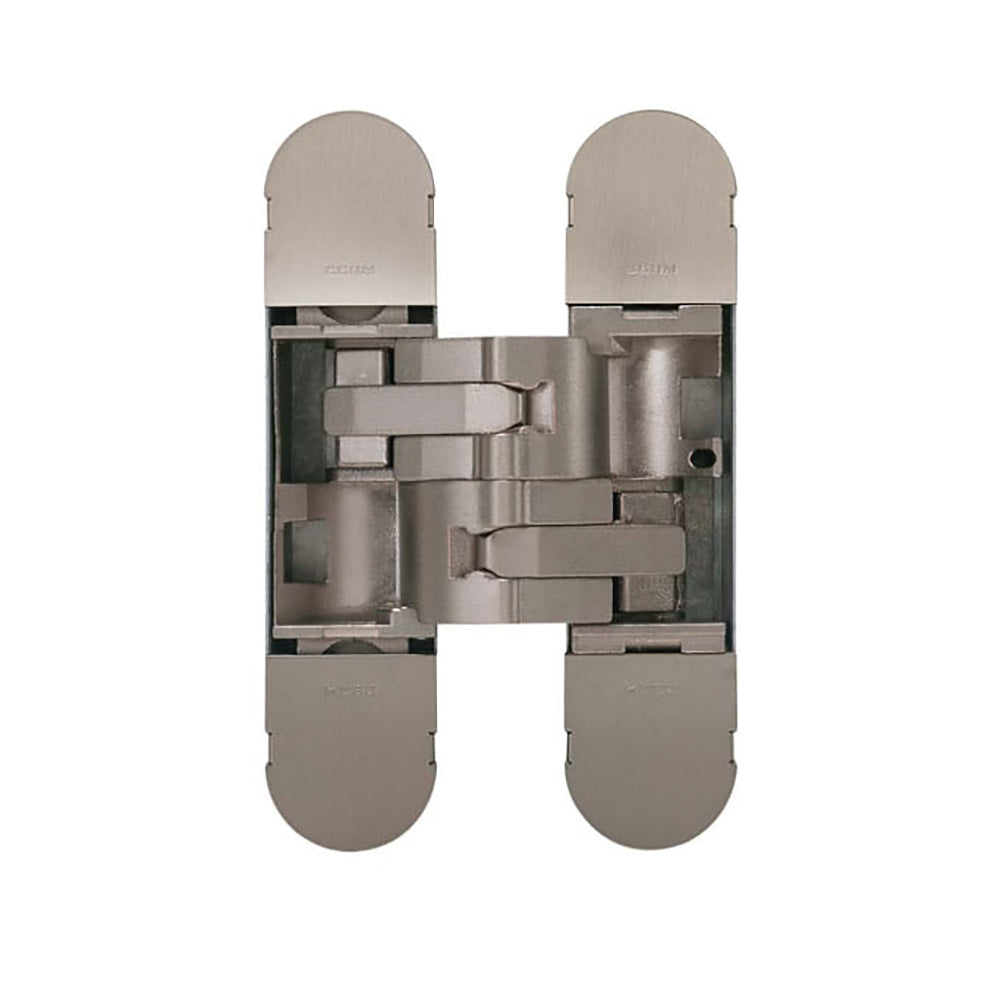

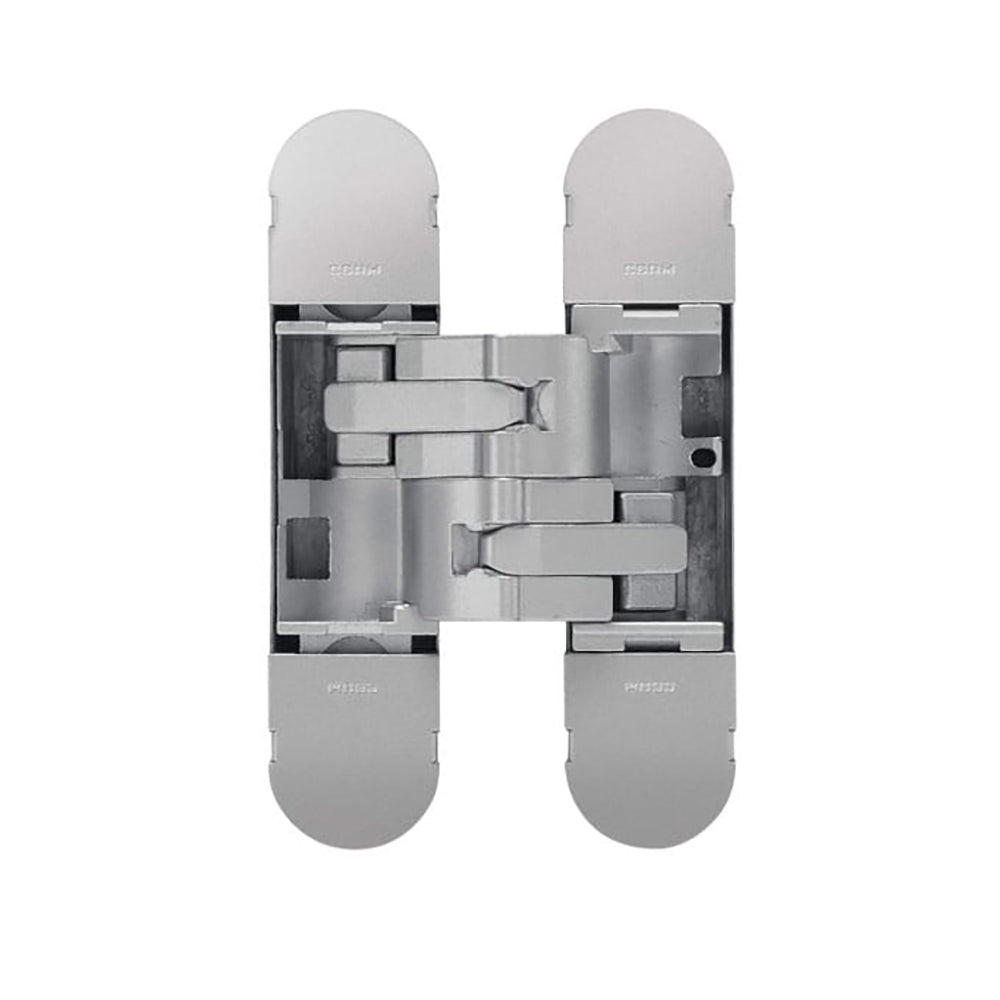

Bellevue Ceam Door Hinge 3D Invisible Wide Throw Concealed 85kg BAC1230S

Bellevue Ceam 3D Invisible Concealed Wide Throw Door Hinge
BAC1230S

Ceam 3D Invisible Concealed Door Hinge is commonly used in residential homes, offices, hotels, and other architectural projects where a sleek and unobtrusive appearance is desired.

Ceam 3D Invisible Concealed Door Hinge Function - recessed into the door and door frame, so when the door is closed, the hinge is completely concealed. This creates a seamless and streamlined appearance without visible hardware.

Features:

• Load capacity up to 85 kg @ 900mm wide door (subject to door specs, see weight chart)
• Wide throw designed for cladded doors
• Router template available for easy installation and slot symmetry
• 100% made in Italy for over 50 years
• Quick release system
• 3D adjusting system S.T.A.R.S.
• Suitable for internal and external (under cover) locations
• Suitable for residential, commercial and industrial locations

Specifications:

• Height: 130mm
• Width: 30mm
• Depth: 21mm
• Material: Die Cast
• Working Aperture: 180 degree
• Minimum Door Thickness: 35mm
• 3D Adjustable: Yes
• Suitable For Doors: Wood, Aluminum, Steel
• Load Capacity:
  • 2 hinges: 53g at 900mm wide doors
  • 3 hinges: 73kg at 900mm wide doors
  • 3 hinges asymmetrical: 76kg at 900mm wide doors
  • 4 hinges: 85kg at 900mm wide doors
• Available Finish:
  • Black
  • Bronze
  • Satin Nickel
  • Silver
• Sold as Single

Note: This product does not ship to New Zealand.
