SKU: BROSF252PK

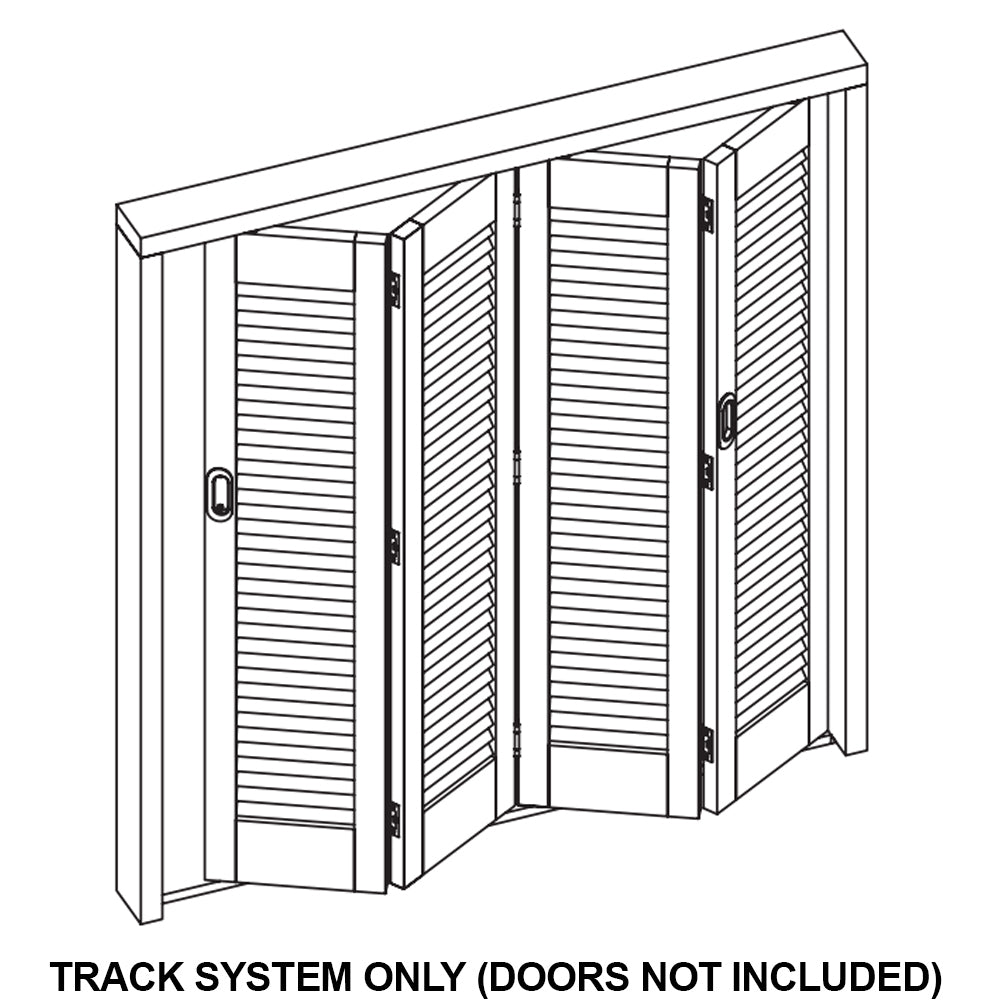

Brio Shutterfold 25 Door Folding Track System for Top Hung Exterior Folding Shutters
TRACK SYSTEM ONLY
RRP: $350.56
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Brio Shutterfold 25 Door Folding Track System
PLEASE NOTE: Track system only (we don't sell doors)
PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)
This is a non-stocked item which leaves the warehouse in 10 business days after payment is made.
Door Track System is incredibly popular because they are stylish and efficient as space-saving doors for separating rooms or partitioning huge work spaces in homes and offices.
Door Track System Function - doors have rollers attached at the top, you lift them up and place them in the track. The guide on the floor then keeps the door in line as you slide it from one side to the other. Both doors are offset and slide, so one is in front of the other.
Includes:
- Pivot Set
- Hanger
- Guide
- Hinges
- Timber screws and instructions
Features:
- Shutterfold 25 is designed for exterior folding shutters and doors in residential and light commercial applications and can support panels up to 25kg with a maximum of six panels folding each way
- Suitable for residential and light commercial folding shutters, with all panels of equal width
- Panels can fold to one or both sides of the opening
- Pivot hardware enables folding exterior shutter to be designed using equal width panels with no cutting down of the panel adjacent to post
- To cover any width opening, any number of folding units can be used
- Units of up to six panels can be pivoted to each side of the opening
- A guide system across the floor must be used on units of three panels or more. Floating units consist of four or six panels
- Shutters should be constructed to provide secure fitting for the pivot sets, hangers, hinges and guides
Specifications:
- Max Panel Weight: 25kg
- Max Panel Height: 2400mm
- Max Panel Width: 900mm
- Min Panel Thickness: 35mm
-
Available Function:
- 2 Panel Pack Pivot (No Channel)
- 2 Panel Pack Pivot
- 4 Panel Pack Pivot
- 6 Panel Pack Pivot
- 2 Panel Add-on Pack
Brio Shutterfold 25 Door Folding Track System
SF25-2PK
PLEASE NOTE: Track system only (we don't sell doors)
PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)
This is a non-stocked item which leaves the warehouse in 10 business days after payment is made.
Door Track System is incredibly popular because they are stylish and efficient as space-saving doors for separating rooms or partitioning huge work spaces in homes and offices.
Door Track System Function - doors have rollers attached at the top, you lift them up and place them in the track. The guide on the floor then keeps the door in line as you slide it from one side to the other. Both doors are offset and slide, so one is in front of the other.
Includes:
- Pivot Set
- Hanger
- Guide
- Hinges
- Timber screws and instructions
Features:
- Shutterfold 25 is designed for exterior folding shutters and doors in residential and light commercial applications and can support panels up to 25kg with a maximum of six panels folding each way
- Suitable for residential and light commercial folding shutters, with all panels of equal width
- Panels can fold to one or both sides of the opening
- Pivot hardware enables folding exterior shutter to be designed using equal width panels with no cutting down of the panel adjacent to post
- To cover any width opening, any number of folding units can be used
- Units of up to six panels can be pivoted to each side of the opening
- A guide system across the floor must be used on units of three panels or more. Floating units consist of four or six panels
- Shutters should be constructed to provide secure fitting for the pivot sets, hangers, hinges and guides
Specifications:
- Max Panel Weight: 25kg
- Max Panel Height: 2400mm
- Max Panel Width: 900mm
- Min Panel Thickness: 35mm
- Function: 2 Panel Pack
