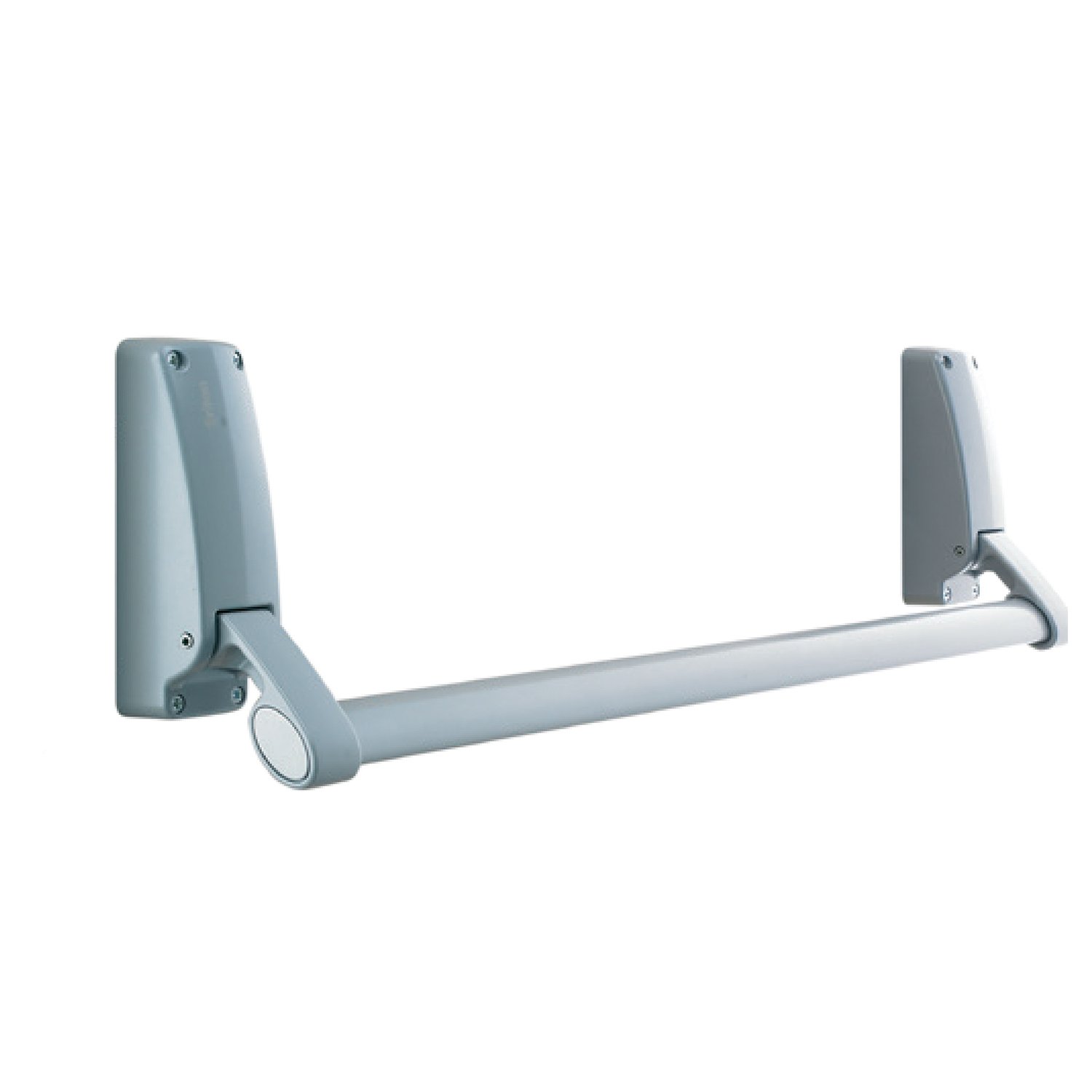

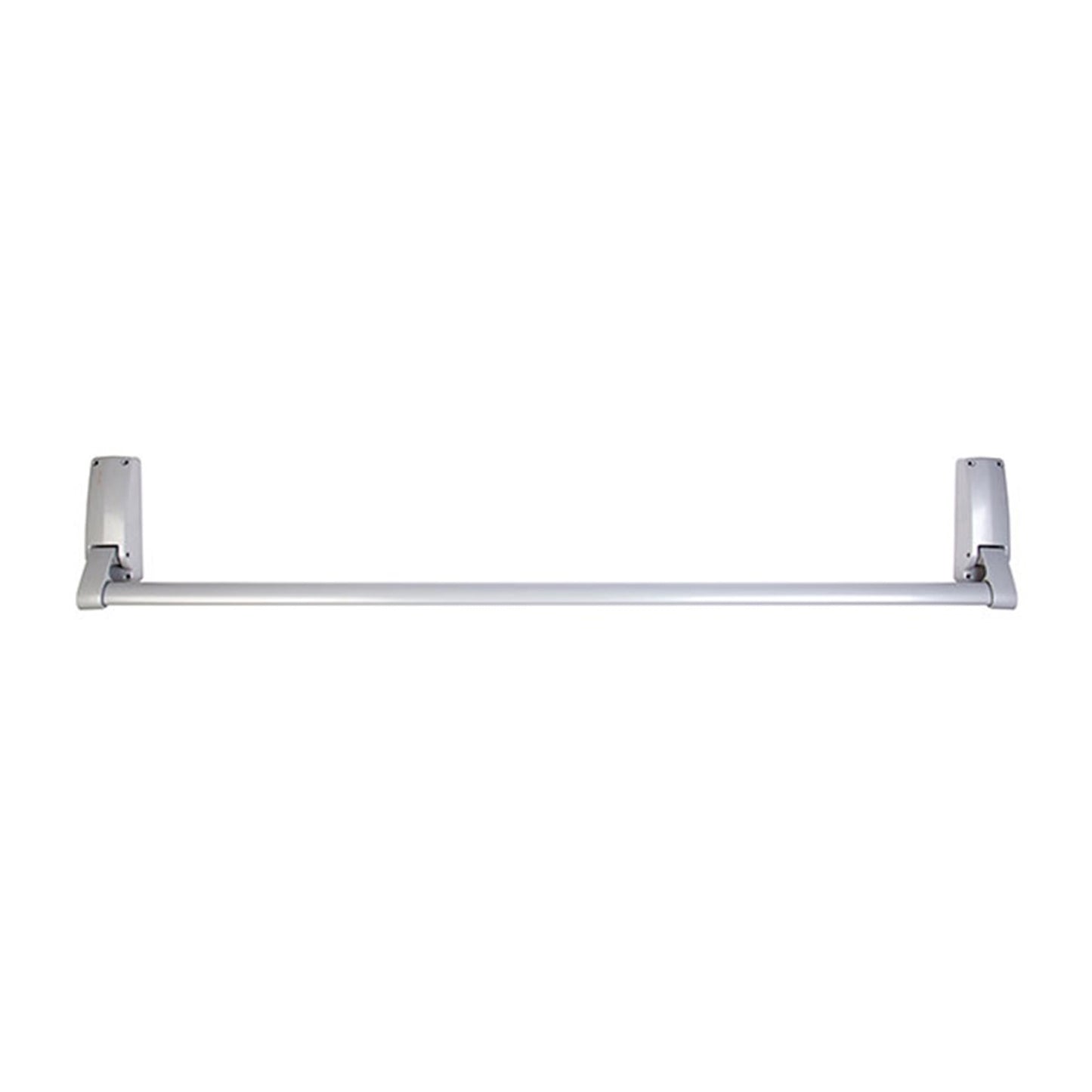

Briton Panic Bar 2 Hour Fire Rated Suits Mortice Lock

Panic Bars are push bars/crash bars installed on exit doors to allow quick exiting of buildings. (e.g. where emergency or panic situation could occur)

Panic Bar Function - Operated by a horizontal push bar, which when pushed in a downward arc withdraws either the bolts or latch, releasing the door for immediate escape in the event of an emergency.

Note: Panic bar only, mortice lock & external furniture not included

  • An economical range of push bar devices designed to suit single and double door applications.
  • Can be used on aluminium, hollow metal or wood swinging commercial doors.


  • Push bar on inside retracts the latch.
  • Door is automatically locked when closed.
  • Drives a mortice lock for side latching.
  • Fitting a mortice lock allows key or lever access from the outside.
  • Suitable for single doors. or on the first opening leaf in double door applications
  • Can be used with the 376 Series (product code 50511160), double doors.
  • Suitable for door width from 665 to 1300 mm.
  • Supplied right handed, but can be handed on site
  • Successfully tested up to 2 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.


  • Door Type: Timber or Metal
  • Stile Width: 100mm minimum
  • Door Width: 665mm to 1300mm
  • Material: Zinc diecast chassis. Steel crossbars
  • Warranty: 5 Years Supplied as Trade pack with all fixing hardware
  • Finish: Silver Enamel
Barcode # 5050640030054
Brand Briton
