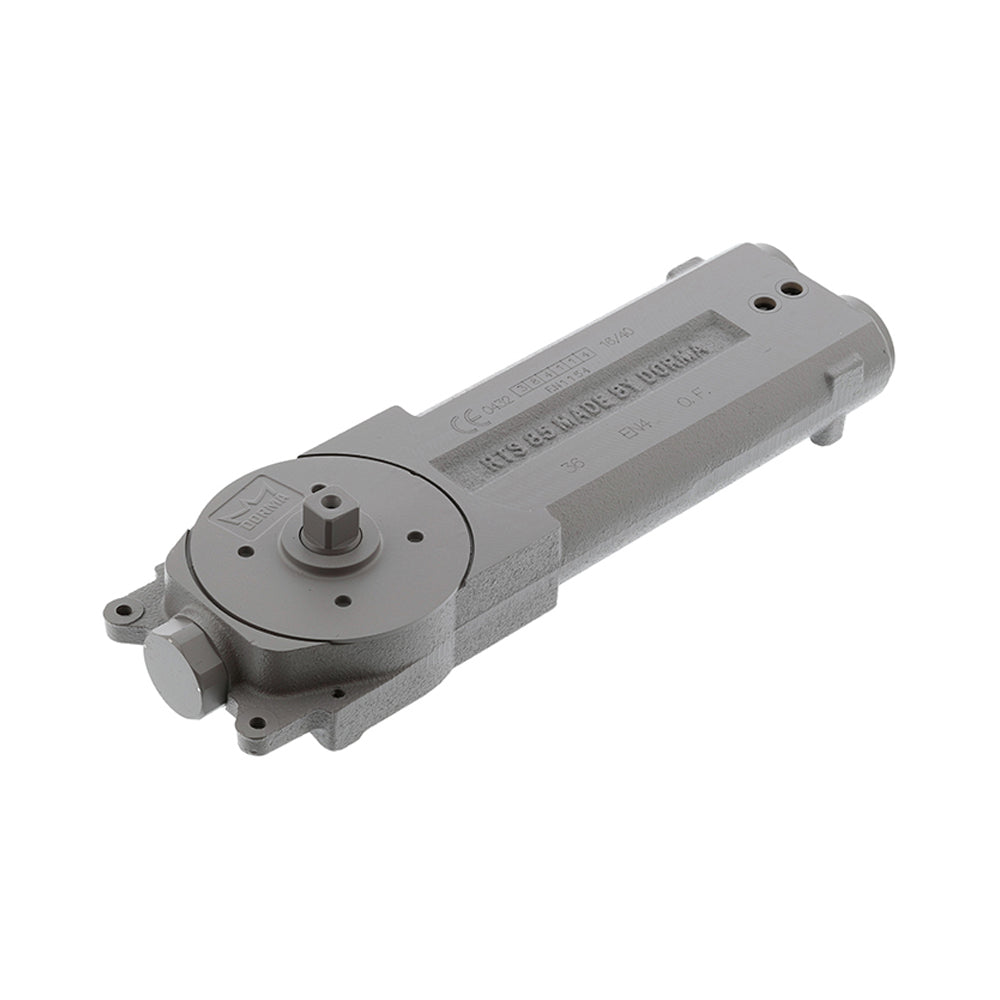

Dormakaba RTS85 EN4 Transom Closer Hold-Open Body Only 85322101

Dormakaba RTS85 EN4 Transom Closer with Hold-Open
85322101

Transom Closer allows a single or double action aluminium door or doors to be closed with precision.

Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.

• For single and double action doors RH (ISO 5) and LH (ISO 6)
• Offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door.
• Certified to ISO 9001.

Features:

• For single and double action doors
• Backcheck function as standard
• Wide range of accessories for almost every configuration
• Concealed in the door frame

Specifications:

• Closing Force: EN4
• Internal doors up to and external doors: up to 1100mm
• Closing speed variable by valve adjustment: Yes
• Final closing speed variable by valve adjustment: Yes
• Backcheck: Yes
• Hold Open: 90 Degrees

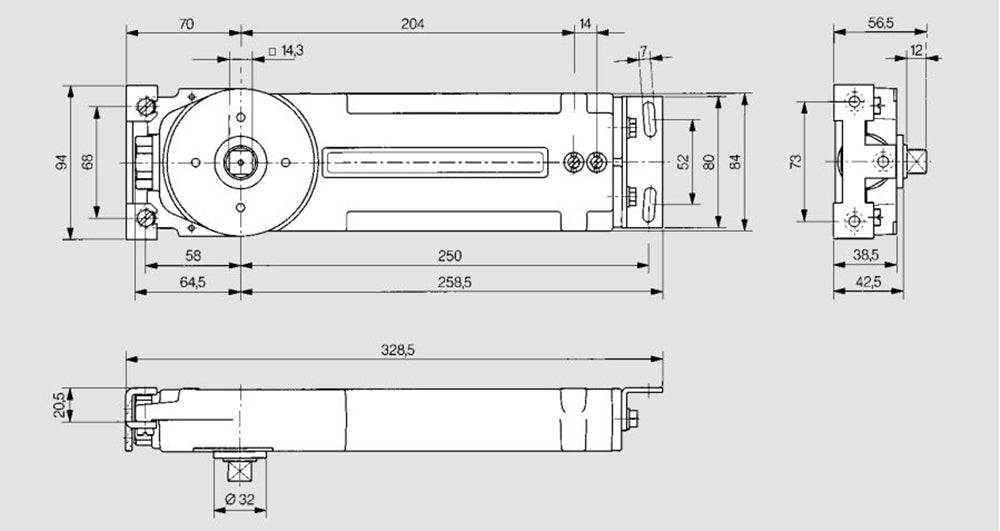

• Length: 323mm
• Width: 90mm
• Height: 38mm
• Weigth: 4.8kg

Protection:

• Certified manufactur to ISO 9001.
• Certification CE marked.
• Successful independently tested to BS EN 1154.
