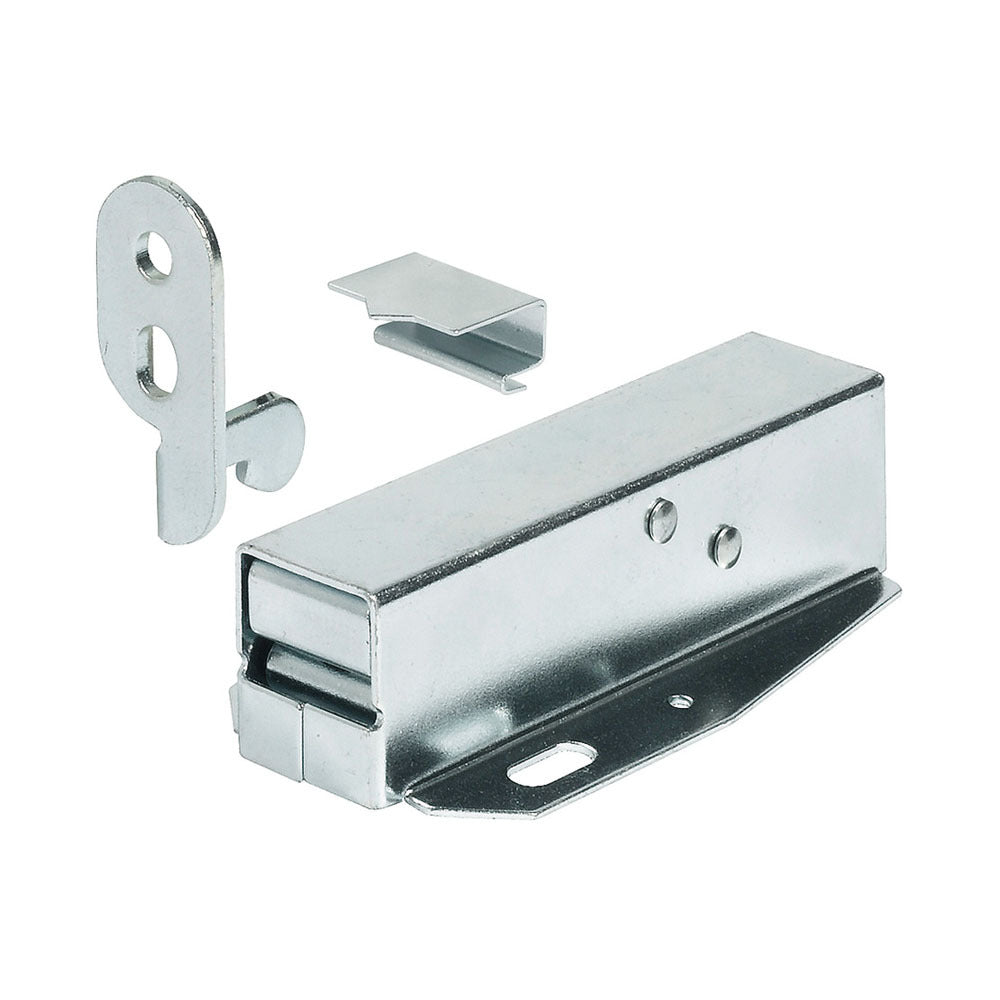

Hafele Touch Latch Automatic Spring Latch
245.56.901

Spring Latch is suited for applications requiring quick and secure engagement and disengagement of doors, compartments, or panels. When necessary, the spring-loaded bolt can be secured in the open position, and by twisting the lever, the bolt can then close firmly with the help of the spring.

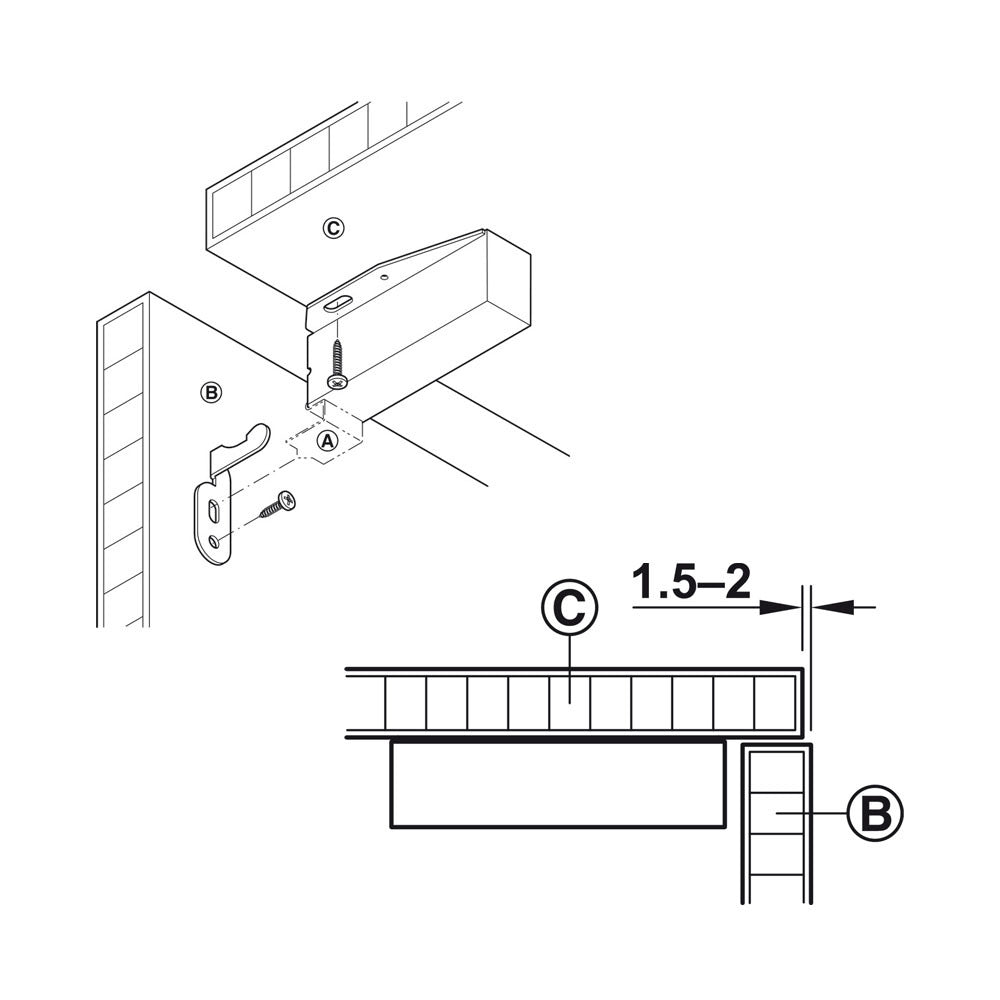

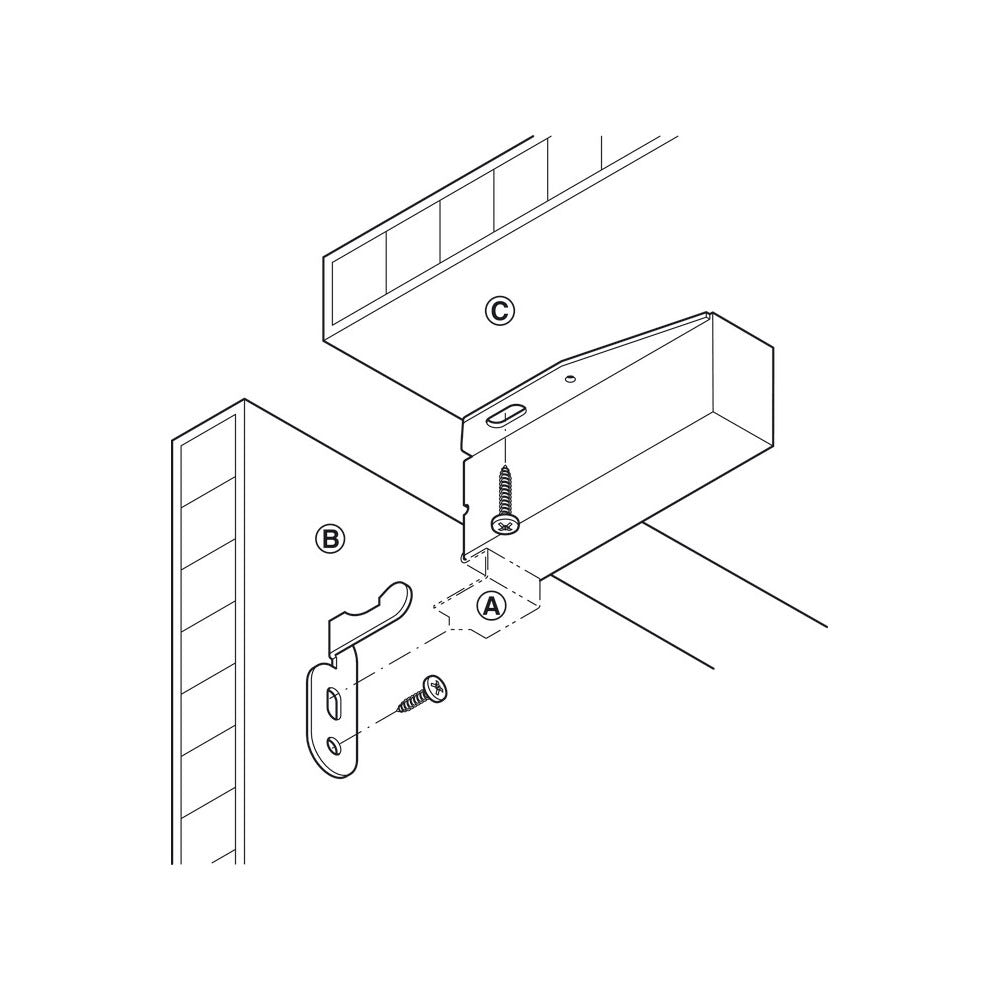

Spring Latch Function - consists of a bracket on one surface, a notched plate on the other, and a pin connecting the two surfaces. Latches are mechanical devices used to affix two distinct parts together to stop.

Specifications:

• Material: Steel

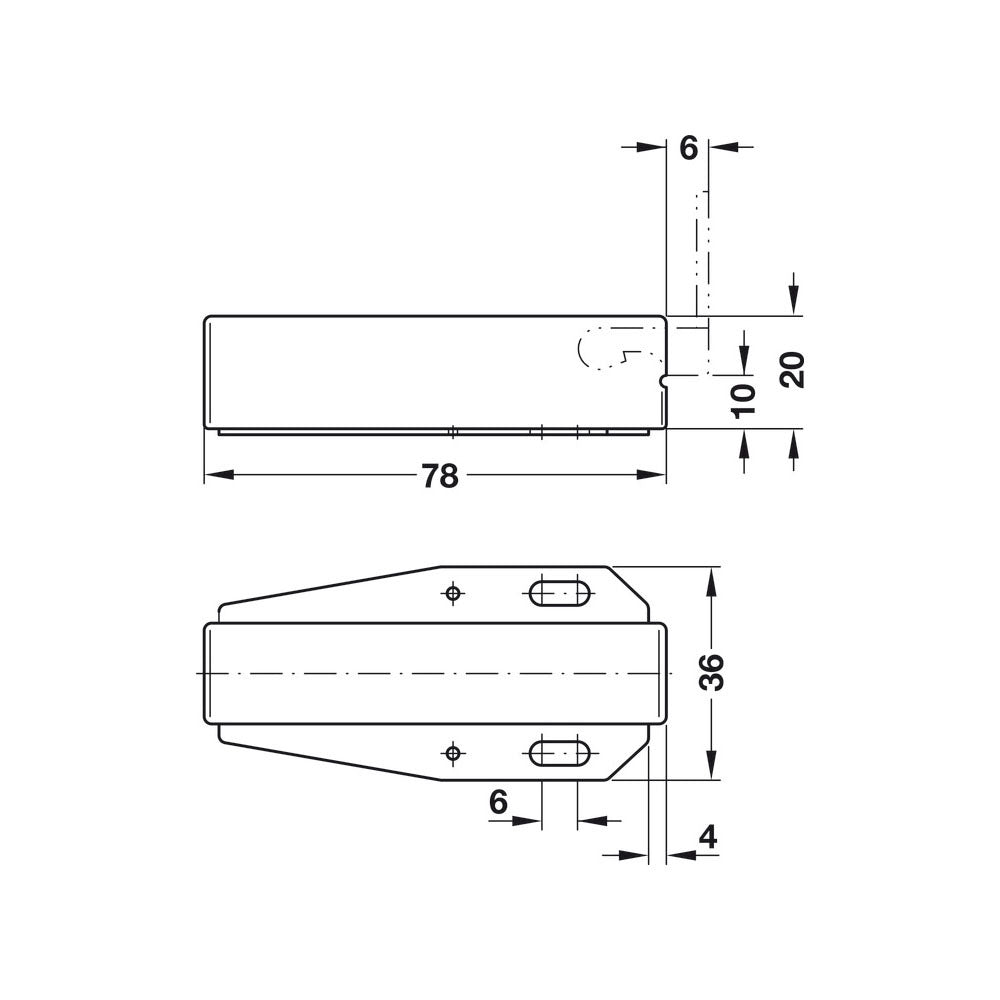

• Latch Length: 78mm
• Latch Width: 36mm
• Latch Height: 20mm

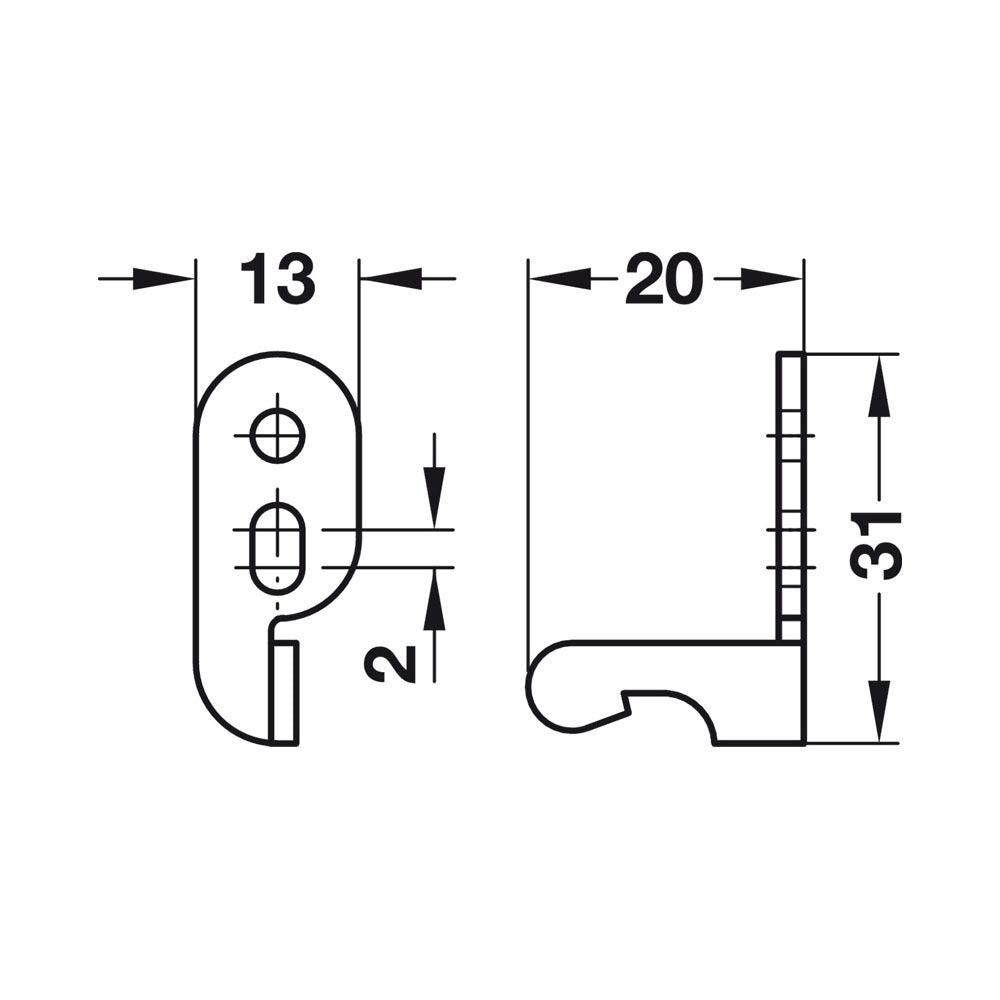

• Strike Length: 31mm
• Strike Width: 13mm
• Strike Projection: 20mm
• Finish: Bright galvanized

Note: Not suitable for use with hinges with the soft closing mechanism.
