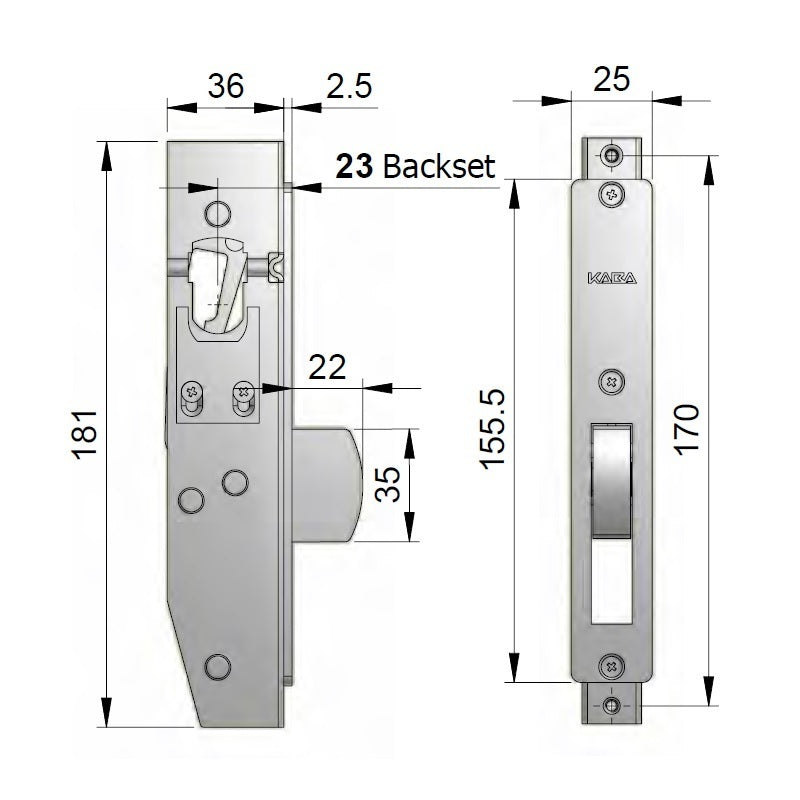

Dormakaba 950 Lock 22mm Bolt Including Case Fixed Escape Turn

950 Series locks are non-handed and are suitable for narrow stile hinged or pivoted doors. The deadbolt is locked by either key or turn. Also suitable for sliding doors where lock can be mounted to door jamb and deadbolt engages strike mounted to face of door.


  • 22mm Bolt includes case fixed escape turn
  • Finish: Satin chrome plate
  • Suits 950/951 range of narrow backset locks
  • Surface fixed escutcheon (FA950) provides stability by clamping on cylinder and also face fixing to door - supplied as standard
  • Retro-fits to all common manufacturers locks in market
  • Single action downward lever operation to unlock door meets BCA/NCC requirements of egress for exit doors
  • Lever design meets AS1428.1 Design for Access and Mobility when fitted to standard aluminium extrusion of
  • 45mm thick style
  • Patented mechanism provides travel restriction to prevent lock damage
  • Handed installation is field reversible


Barcode # 9322844038058
Brand Dormakaba
