Lockwood 3782 Narrow Stile Mortice Lock Kit Inc Furniture & Double Cylinders
3782KIT01
Cylinder Mortice Lock Kit provides more security on exterior doors that have windows. (e.g. When intruders attempt to break into a building through a window, the key lock on the inside of the door will stop them from entering)
Cylinder Mortice Lock Kit Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is operated on the interior and exterior by a knob or lever.

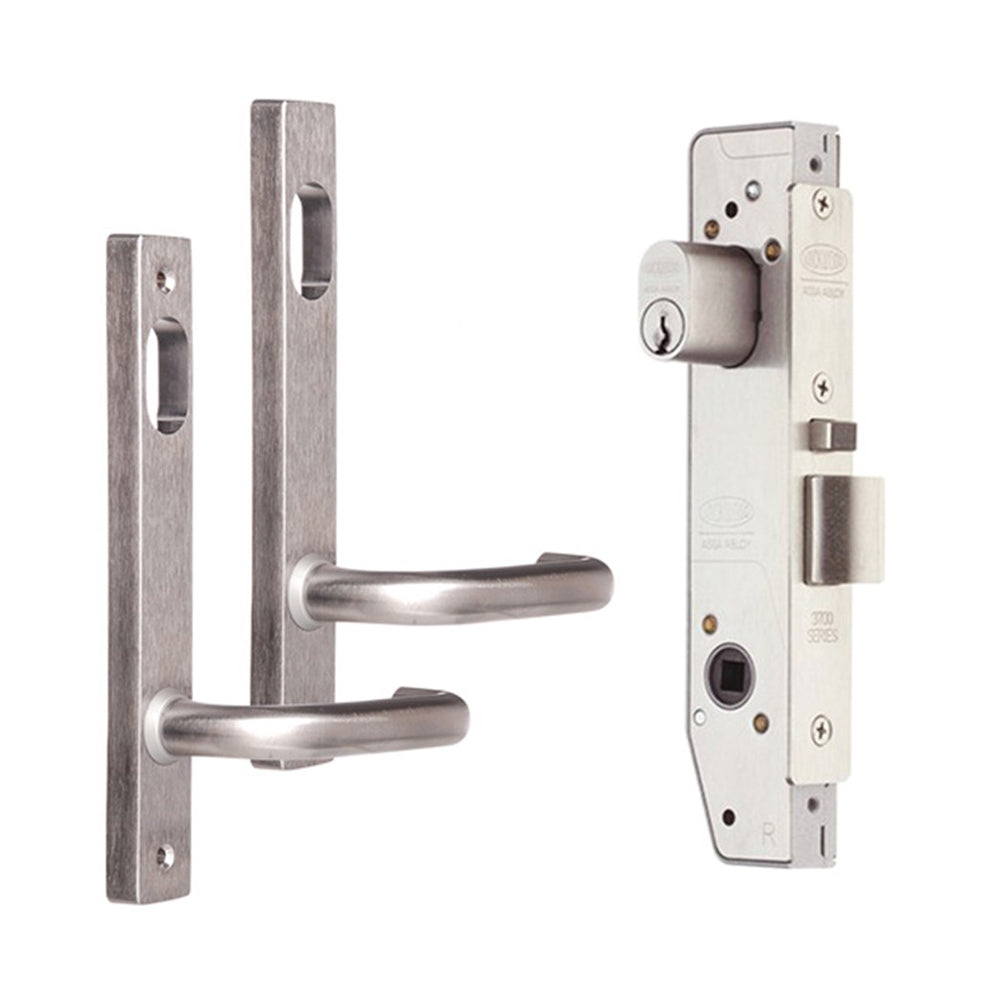

Lockwood Selector® 3782 universal mortice lock with double cylinder & furniture kit
The new Selector® 3780 series mortice lock was designed to incorporate a greater range of lock functions into one primary lock. In addition to industry first holdback capable lock, the Selector® 3780 series also includes an selectable anti-lockout feature. The mortice lock kit includes the following products:
Includes:
- 1 x 3782SS mortice lock.
- 1 x 4801/70SC external lever on plate.
- 1 x 4901/70SC internal lever on plate.

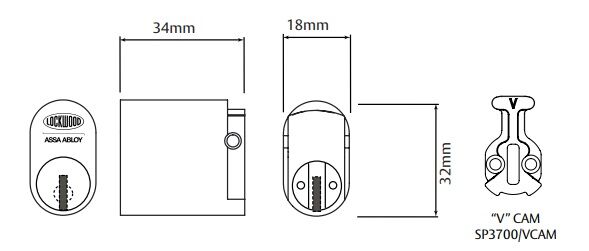

- 2 x 570 oval cylinders keyed alike with keys.
Features:
Mortice lock:
- Short backset universal primary mortice lock.
- Easy Red /Green function setting.
- All lock settings are made from under the faceplate allowing for simple in-door configuration.
- Standard primary locks include holdback and anti-lockout capabilities.
- Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected.
- Operated by key or handle outside or by turnsnib, key or handle inside.
- Zinc diecast body with stainless steel chassis plates for improved strength.
- Electric Strike compatibility.
- Supplied with cylinders.
- Supplied with Selector 'V' cam.
- Compatible to most restricted keying systems.

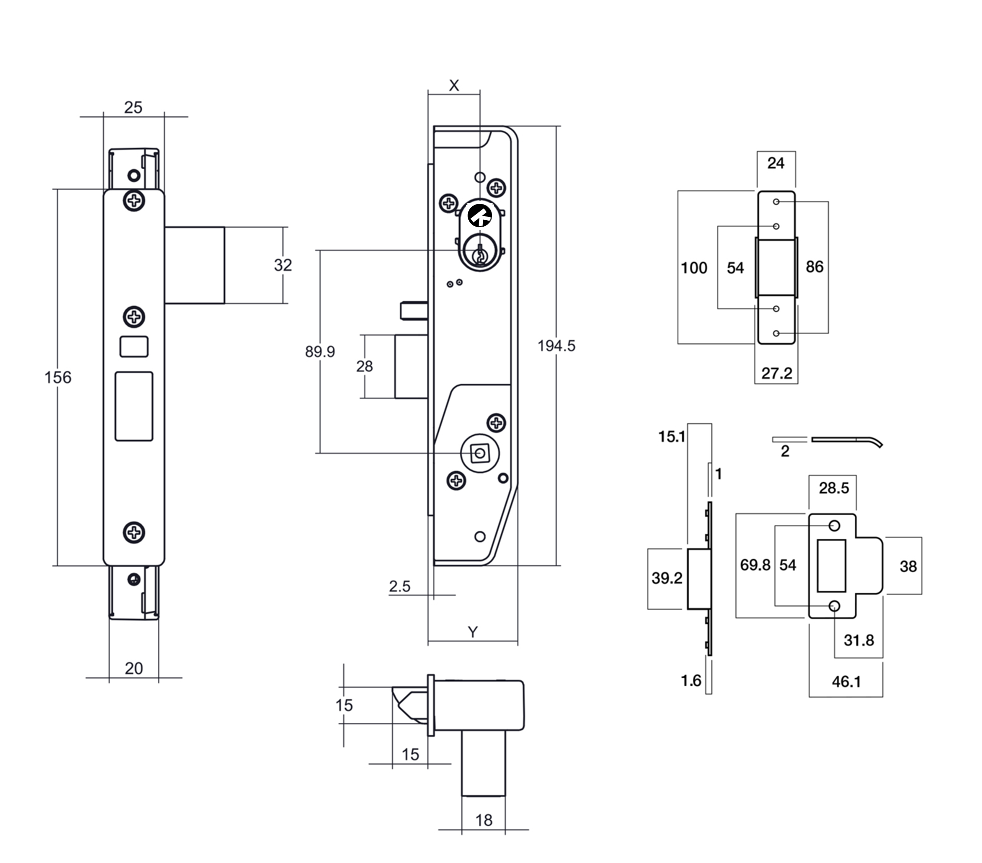

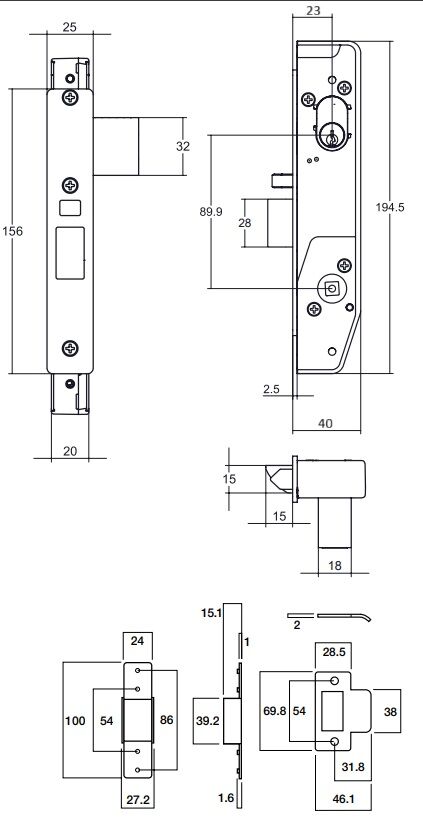

- Backset: 23mm backset as standard
- Suits metal door thickness: 35mm to 50mm.
- Stainless steel reversible latch bolt: 15mm
- Finish: Stainless Steel.
External Furniture:
- Narrow stile exterior square end plate
- Cylinder hole and 70 series tubular lever
- Plates are designed to fit back to back
- External plates supplied with fixing screws
- Disabled access AS1428.1 compliant lever

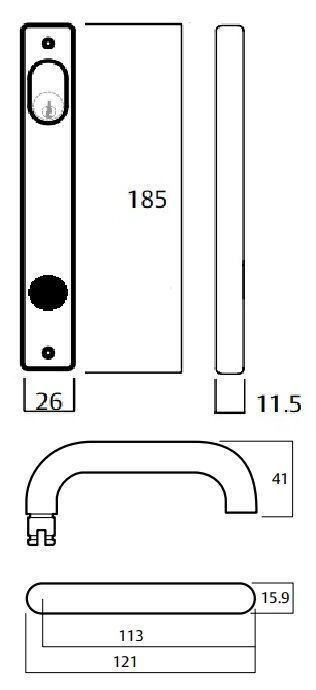

- Plate size: 185mm x 26mm x 11.5mm
- Suits door thickness: from 32mm to 50 mm
- Screw fixing centres: 160mm
- Fixing: Concealed
- Finish: Satin Chrome
Internal Furniture:
- Narrow stile internal square end plate
- Cylinder hole and 70 series tubular lever
- Plates are designed to fit back to back
- Disabled access AS1428.1 compliant lever
- Fixing: Visible
- Fixing holes centres: 160mm
- Suits door thickness: from 32mm to 50mm

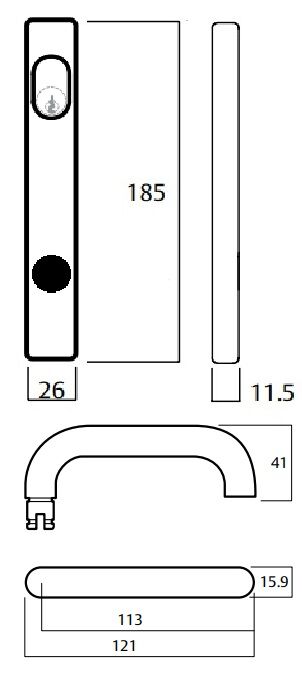

- Plate size: 185mm x 26mm x 11.5mm
- Finish: Satin Chrome
