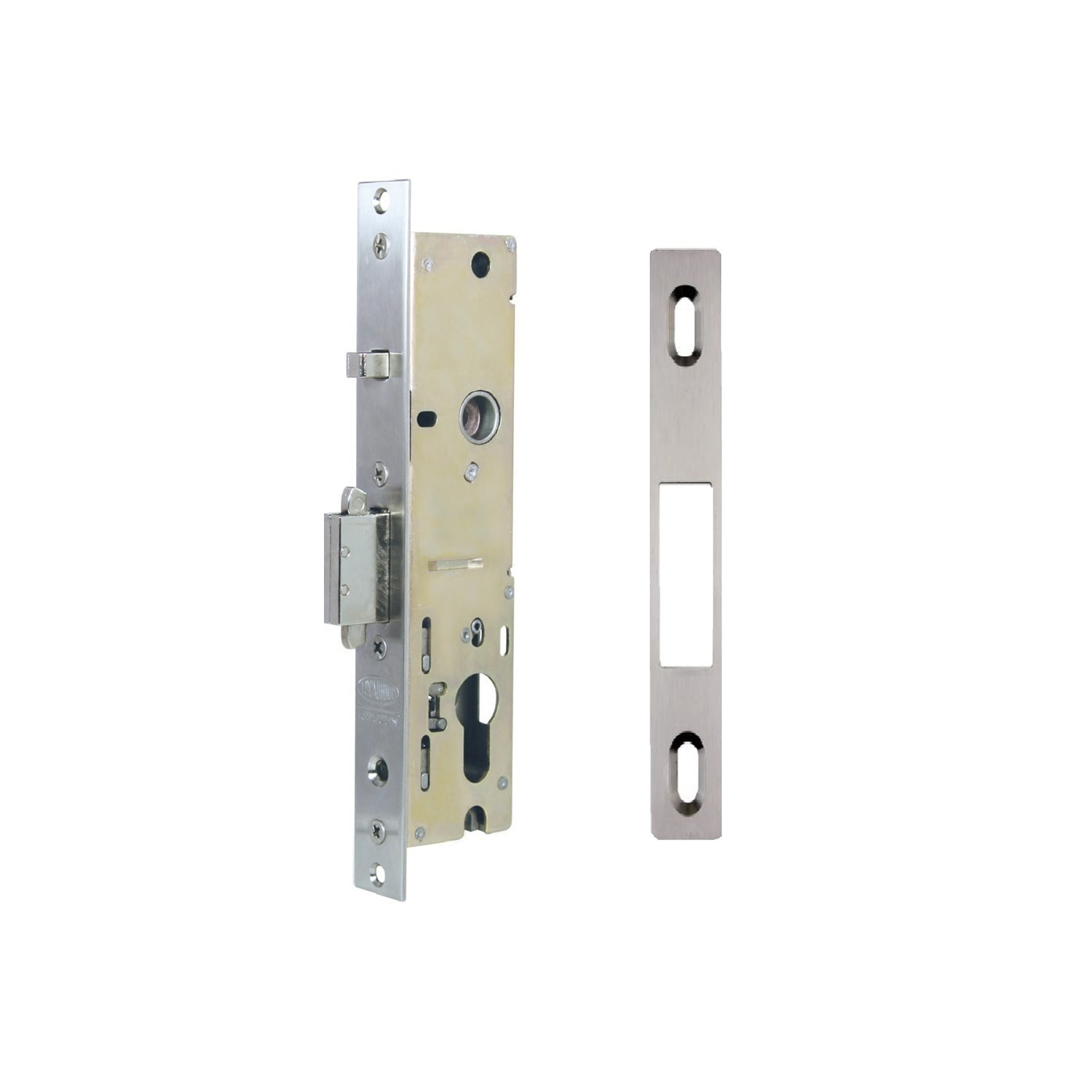

Lockwood Optimum Sliding Door Mortice Lock 30mm Backset with Strike
OP30/1SDN/SS

Includes:

• 1 x Lockwood Optimum Sliding Door Mortice Lock 30mm Backset OP30/1SDN/SS
• 1 x Lockwood Optimum Sliding Door Strike Plate PQ70188

The Lockwood Optimum Sliding Door Mortice Lock is designed to improve functionality in sliding door applications. Lock features the unique security of a single deadbolt with dual flyout beaks which prevent the door from being lifted.

Features of the Optimum Sliding Door Mortice Locks:

• Anti-lift deadbolt locking
• Anti-slam pin protection prevents accidental damage to the lock bolt
• Durable mechanism and stainless steel faceplate
• 30mm backset
• Door thickness: 32mm to 45mm
• Lock Status Indication available when used with Palladium Xtra cylinder escutcheons
• Fixed or adjustable strike options (strikes must be ordered separately)
• Lock Status Indicators
• Passage Mode - gives convenient access from inside and outside without the need for a key.
• Secure Mode - Door locked securely from both inside and outside and requires.

Lockwood Optimum Sliding Door Strike Plate
PQ70188

Specifications:

• Non Adjustable (Fixed)
• Finish: Stainless Steel
• Size: 113mm x 20mm
