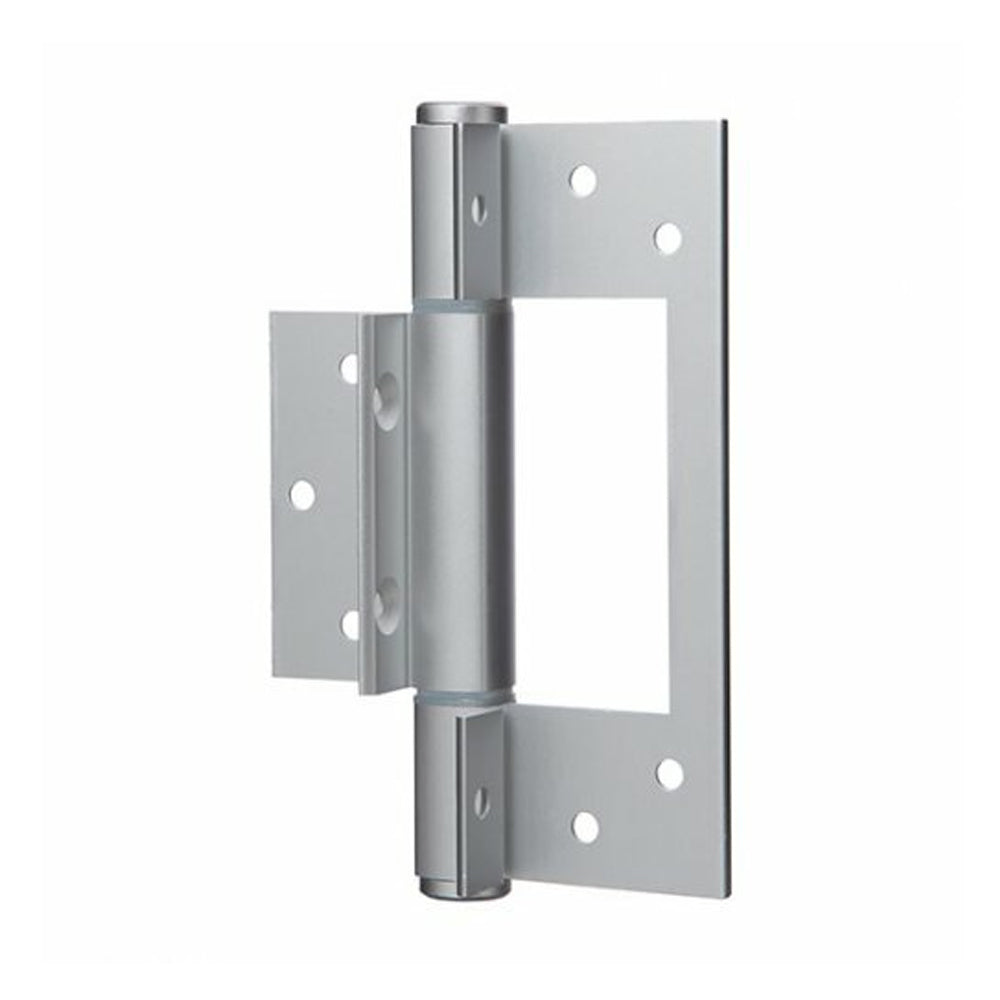

McCallum Heavy Duty Aluminium Fast-Fix Hinge
A104

Includes: 1x Hinge w/ screws

Application:

• Suitable for aluminium entrance doors in high usage situations.
• Suitable for either centre pocket or front edge glazing systems.
• Suitable for some timber door applications. Pre-drilling of the holes in the timber may be required.
• The A104WF will be more suitable for Timber Doors because the fixing holes on the wings are approx. 13mm away from the edge of the door.

Specifications:

• Alloy: High strength T.6 minimum tensile 254 mpa.
• Pin Diameter: 6mm stainless steel with machined chamfer both ends.
• Bushes: Flanged nylon.
• Knuckle: Squareline - Heavy duty.
• Aluminium Endcaps: Pressed-in interference fit.
• Dimensions: A - 130mm, B - 65mm, C - 39mm, D - 26mm, E - 18mm, F - 3.3mm (Please refer to images for dimensions.)

Installation Guide Only:

Door Thickness: Minimum 40mm.
When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high
as possible. For excessive usage a fourth hinge may be required.
Standard Door: 2040 high x 820 wide x 100 kgs – 3 hinges.
Oversize Door: 4 to 5 hinges.
The wing locator allows for fast fixing.

Fixing
Fastening screws supplied.
Two directional.
Pop rivets are not recommended.
