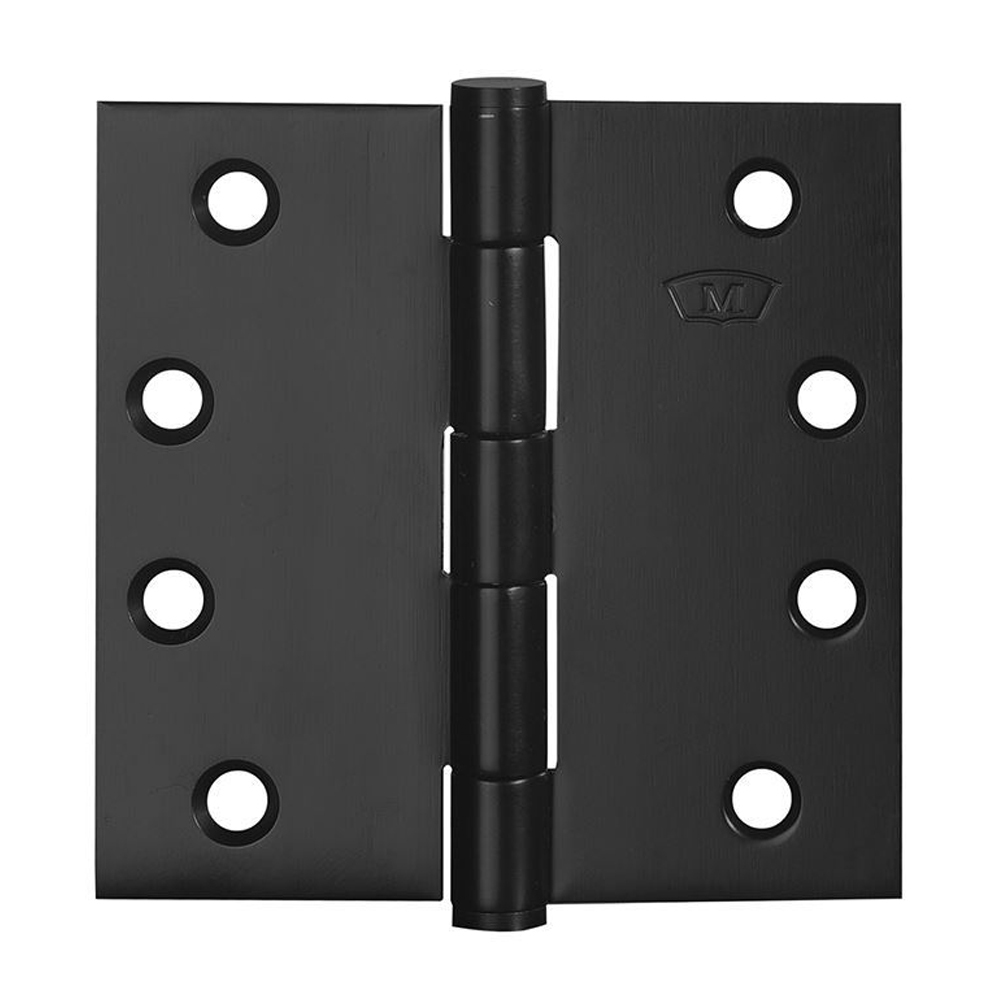

McCallum Stainless Steel Butt Hinge
S239

Butt Hinge used to mount and operate doors on commercial properties and residential homes.

Butt Hinge Function - a form of surface mount hinge that fits on top of the door's surface and does not require mortising or recessed installation.

Features:

  • Suitable for aluminium and timber doors with aluminium, steel and timber frames
  • Stamped with Mccalum crest
  • Fixed Pin

Specifications:

  • Material: Stainless Steel 304 Grade
  • Pin: 6.9mm - 304 grade stainless steel
  • Knuckle: Round
  • Endcaps: Pressed-in interference fit. Stainless Steel 304 Grade
  • Dimensions: 100mm x 100mm
  • Finish: Black

Installation Guide Only:

  • Door thickness: Minimum 35mm
  • When using a door closer, we recommend a minimum of 4 hinges be used, with the top hinge located as high as possible
  • Standard Door: 2040 (H) x 820 (W) - 3 hinges

Fixing:

  • 32mm x 10# stainless steel fasteners for timber (supplied)
  • 12mm x M5 stainless steel metal fasteners (supplied)
  • Not recommended for Bi-Fold door systems.
SKU MCCS239
Brand McCallum
