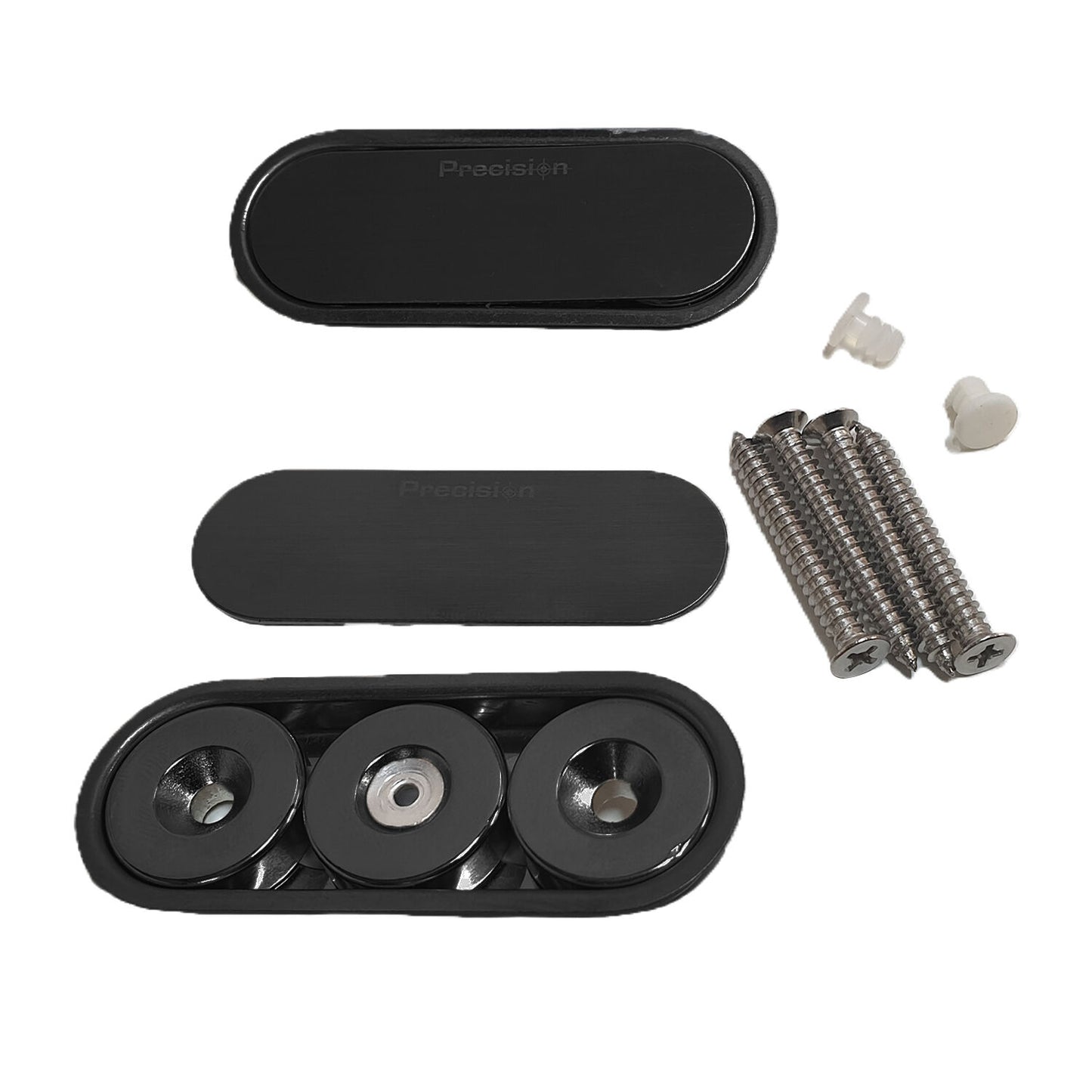

Precision Extra Heavy Duty Concealed Magnetic Catch
PLS24PRO-XHD

Features and Specifications:

  • Extra heavy duty concealed magnetic catch suitable for large/heavy interior doors, heavy pivot doors, entrance doors etc.
  • Can be used anywhere a roller/ball catch etc. would normally be fitted
  • As magnets don’t touch (after installation)
    • The catch will never wear out!
    • Lifetime guarantee (for magnetism).
    • Can be painted over.
  • No latch noise when opening and shutting door (unlike a roller/ball catch)
  • Completely concealed when door closed, no unsightly protruding strike plate lip (unlike a roller/ball catch).
  • Can be used to help keep problem doors shut (e.g. with weak door closers, electric strikes, weak roller mortice locks).
  • Patented new design/installation procedure - Much easier and faster to install than traditional 'rectangular face' roller/ball catches and rectangular strikeplates etc, due an innovative and patented design/installation process that uses mainly drilling with a 24mm(15/16") spade or forstner drill bit, and only a minimal amount of chiseling to create the recesses required to flush mount the magnetic assemblies (FIG 1).
  • Power adjustment spacer rings - Increase magnetic holding strength by fitting power adjustments rings (under flanged lip of magnetic assembly) as required. (See FIG 1.4). 5x (1mm thick) S/steel rings supplied for precise power adjustments.
  • Self Adhesive Cover Plate (Brushed S/Steel)
    • Protects magnets from impact damage during installation.
    • Protects magnets from corrosion.
    • Conceals magnet and screw head for a more attractive finish.
  • Adhesive: 3M9448A - provides very high bonding strength and excellent durability.
  • Poron Xrd Foam impact absorption pad (sold separately)
    • Use (esp. with double doors) to further reduce impact noise and bouncing of door on frame when shutting.
    • Low compression set - After impact, foam pad will return to its original thickness indefinitely.
SKU PREPLS24PROXHD
Barcode # 5017178999253
Brand Precision
