SKU: ALLB376EDSE
Briton Panic Bar Single Door with Dogging Silver B376E-D/SE
RRP: $749.15
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

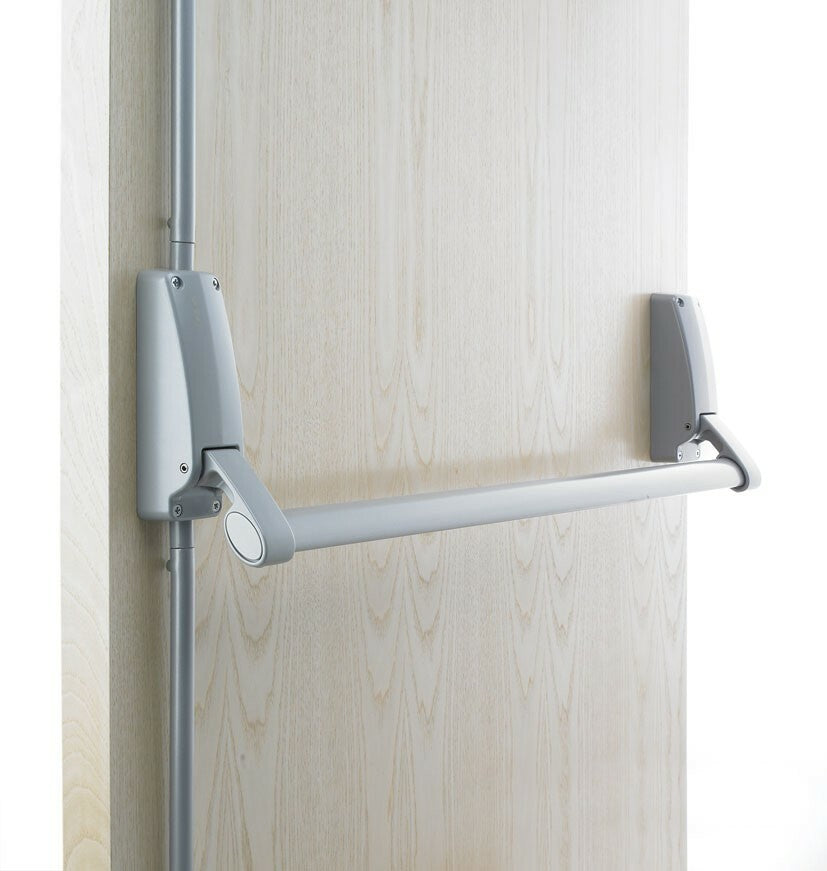

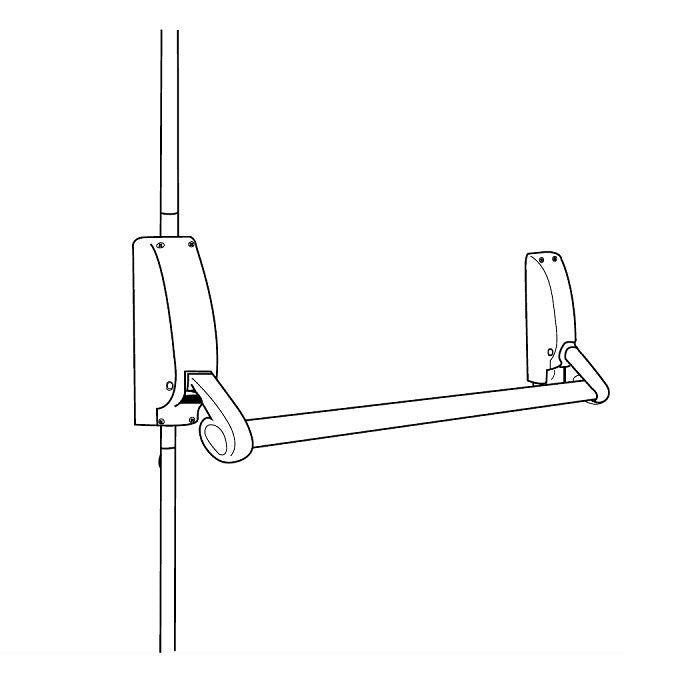

Briton Single Door Vertical Panic Bar w/ Dogging
B376E-D/SE
Note: Panic bolt only, door not included
Panic Bars are push bars/crash bars installed on exit doors to allow quick exiting of buildings. (e.g. where emergency or panic situation could occur)
Panic Bar Function - Operated by a horizontal push bar, which when pushed in a downward arc withdraws either the bolts or latch, releasing the door for immediate escape in the event of an emergency.
The Briton 376E Series is an economical range of push bar devices designed to suit single and double door applications.
The 376E Series can be used on aluminium, hollow metal or wood swinging commercial doors.
Available as rim and surface mounted vertical panic bolt devices. Each model in the 376E Series is operated by a horizontal push bar, which when pushed in a downward arc withdraws either the bolts or latch, releasing the door for immediate escape in the event of an emergency.
Features:
- The 376E vertical panic bolt device is suitable for all types of single doors and can be used in conjunction with either another 376E or a 379E for double nonrebated door applications.
- For double rebated door applications the 377E double door set can be used
- The 376E is field sizable to accommodate a range of door openings
- Two point locking for extra security
- Anti-thrust device, prevents unauthorised retraction of the latchbolt
- Non handed — will suit both left and right handed doors
- Adjustable top shoots
- It is recommended that a door closer be used in conjunction with this panic bar such as the Briton delayed action closer or similar (depending on weight/width of door)
- Option of manual dogging(holdback) can be selected which allows the latch or the bolts to be held in the withdrawn position
- Supplied with an easy clean floor socket

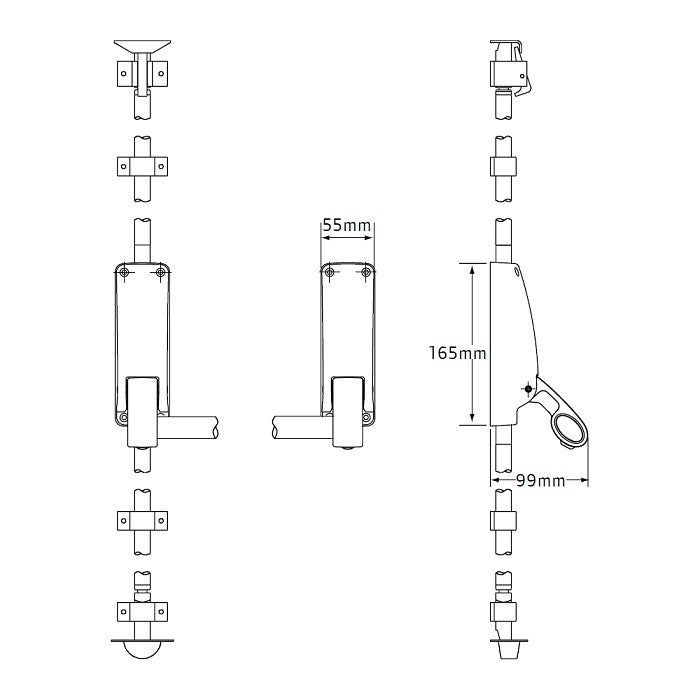

Specifications:
- Door Type: Timber or Metal
- Stile Width: 78mm minimum with 13mm rebates, 90mm minimum with 25mm rebates
- Door Width: 665mm to 1300mm
- Door Height: 2500mm standard. Extra long top shoot available for door heights up to 3350mm
- Material: Zinc diecast chassis. Steel rods and crossbars
- Supplied as: Trade pack with all fixing hardware
- Finishes: Silver Enamel
- Warranty: 5 Years
WARNING: Dogging (holdback) is not suitable for fire doors.
