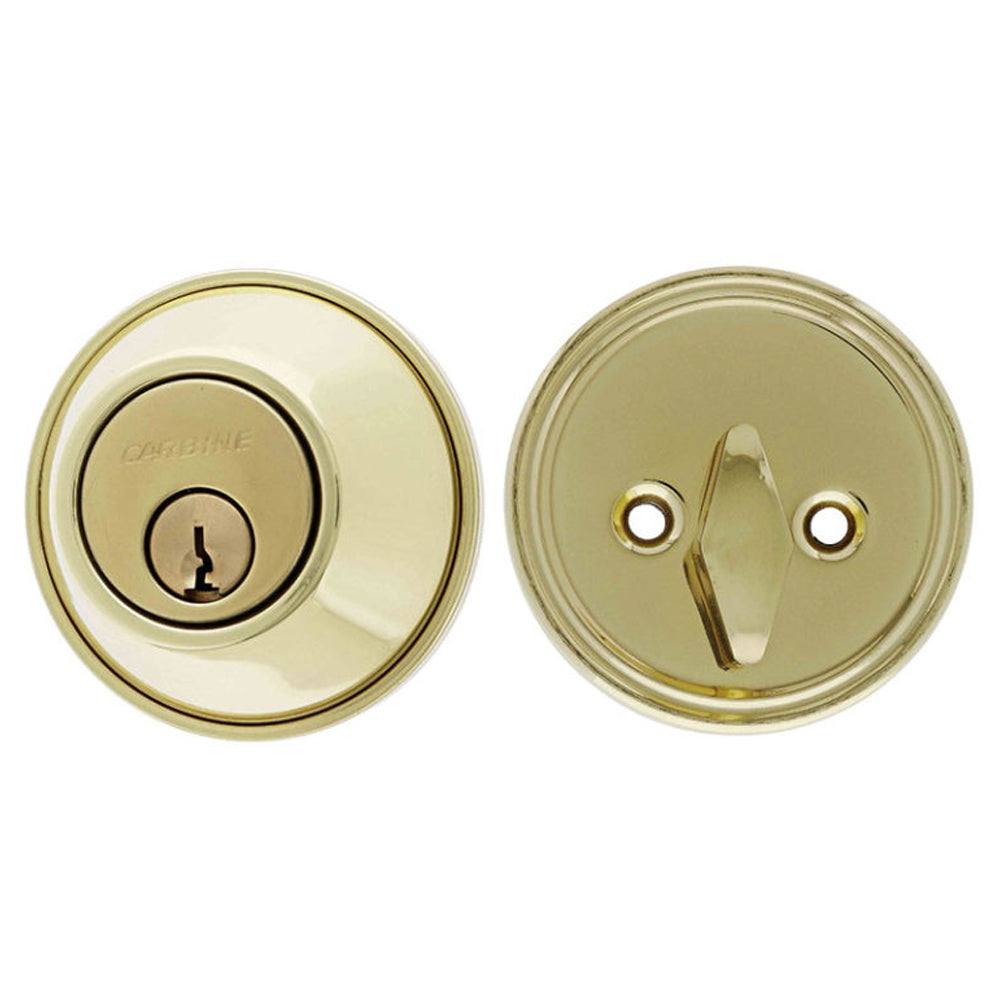

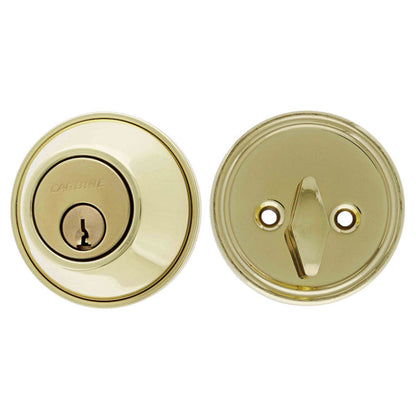

Carbine ALB Series Deadbolt Single Cylinder 60/70mm Polished Brass ALB4110A

Carbine ALB Series Deadbolt Single Cylinder 60/70mm
ALB4110A

Single Cylinder Deadbolt most commonly used type of door lock in residential properties.

Single Cylinder Deadbolt Function - have a keyed cylinder on the outside and a thumb turn on the inside to lock and unlock the door In the event of an emergency, the thumb turn on the interior enables for a quick evacuation.

Features:

• Commercial-grade surface-mounted deadbolt
• Single cylinder and internal thumb turn configuration
• Internal thumb turn allows convenient exit from inside
• Adjustable 60-70mm backset
• Superior bolt mechanism tested to ANSI Grade 2
• Removable brass 6-pin PD-style cylinder, keyed to a 5-pin key
• Fully rekeyable for keyed-alike or master-key systems
• Accepts a wide range of restricted barrels
• Brass bolt incorporates an anti-saw hardened steel pin for additional security
• Supplied with spacing rings to accommodate different door thicknesses Carbine

Specifications:

• Keying: Keyed to Differ
• Cylinder: Removable brass 6-pin PD style
• Key Profile: Keyline LKW9 / Silca LW5
• Door Thickness: 35-45mm standard fitting range
• Backset: 60-70mm adjustable
• Rose Diameter without Rosette: 65mm
• Rose Diameter with Supplied Rosette: 70mm
• Standard Door Thickness: 35-45mm
• Finish: Polished Brass
