SKU: DORM80120000
Dormakaba BTS80 EN3 Floor Spring Body
RRP: $1,460.95
Regular price
$1,064.65
Regular price
Sale price
$1,064.65
Unit price
/
per
Available:
Online: In Stock
LEAVES WAREHOUSE IN 3-5 BUSINESS DAYS
Instore: No Stock
- Please place order instore
*Handling Times May Apply
Express Shipping*
This product qualifies for express shipping
*Enter your postcode for available options*
Payments accepted:
Couldn't load pickup availability
100%

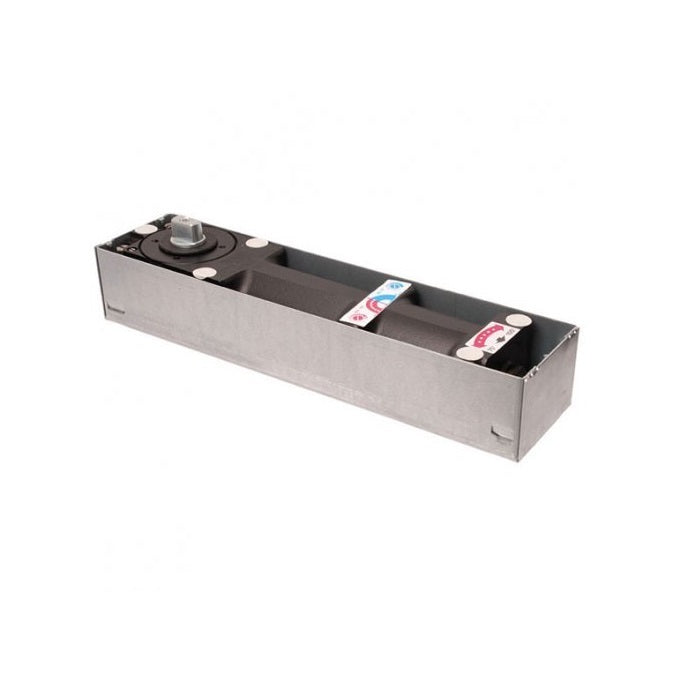

Dormakaba BTS80 EN3 Floor Spring Body
$1,064.65
Features:
- The Dormakaba BTS80 EN3 floor spring body includes cement box and standard spindle
- It is a universal non-handed floor spring for single and double action doors
- With adjustable closing speed and closing action from approx. 175°, with hydraulically controlled closing cycle and mechnical backcheck
- Integral pressure compensation feature allows for temperature-independent hold-open between 75° and 175° (removable)
- Hold-open start point and delayed action is easily adjustable by valve
- Suitable for installation on doors up to 950mm (W) with a max. 300kg leaf weight

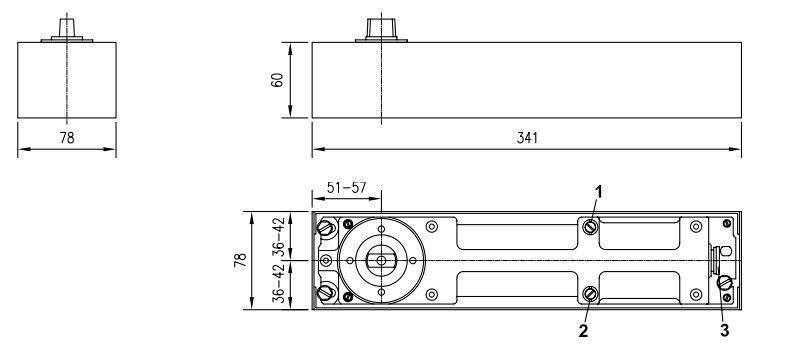

Specifications:
- Length: 341mm
- Width: 78mm
- Height: 60mm
- Weight: 7.1kg
Features:
- The Dormakaba BTS80 EN3 floor spring body includes cement box and standard spindle
- It is a universal non-handed floor spring for single and double action doors
- With adjustable closing speed and closing action from approx. 175°, with hydraulically controlled closing cycle and mechnical backcheck
- Integral pressure compensation feature allows for temperature-independent hold-open between 75° and 175° (removable)
- Hold-open start point and delayed action is easily adjustable by valve
- Suitable for installation on doors up to 950mm (W) with a max. 300kg leaf weight
Specifications:
- Length: 341mm
- Width: 78mm
- Height: 60mm
- Weight: 7.1kg
SKU
DORM80120000
Barcode #
2000000057941
