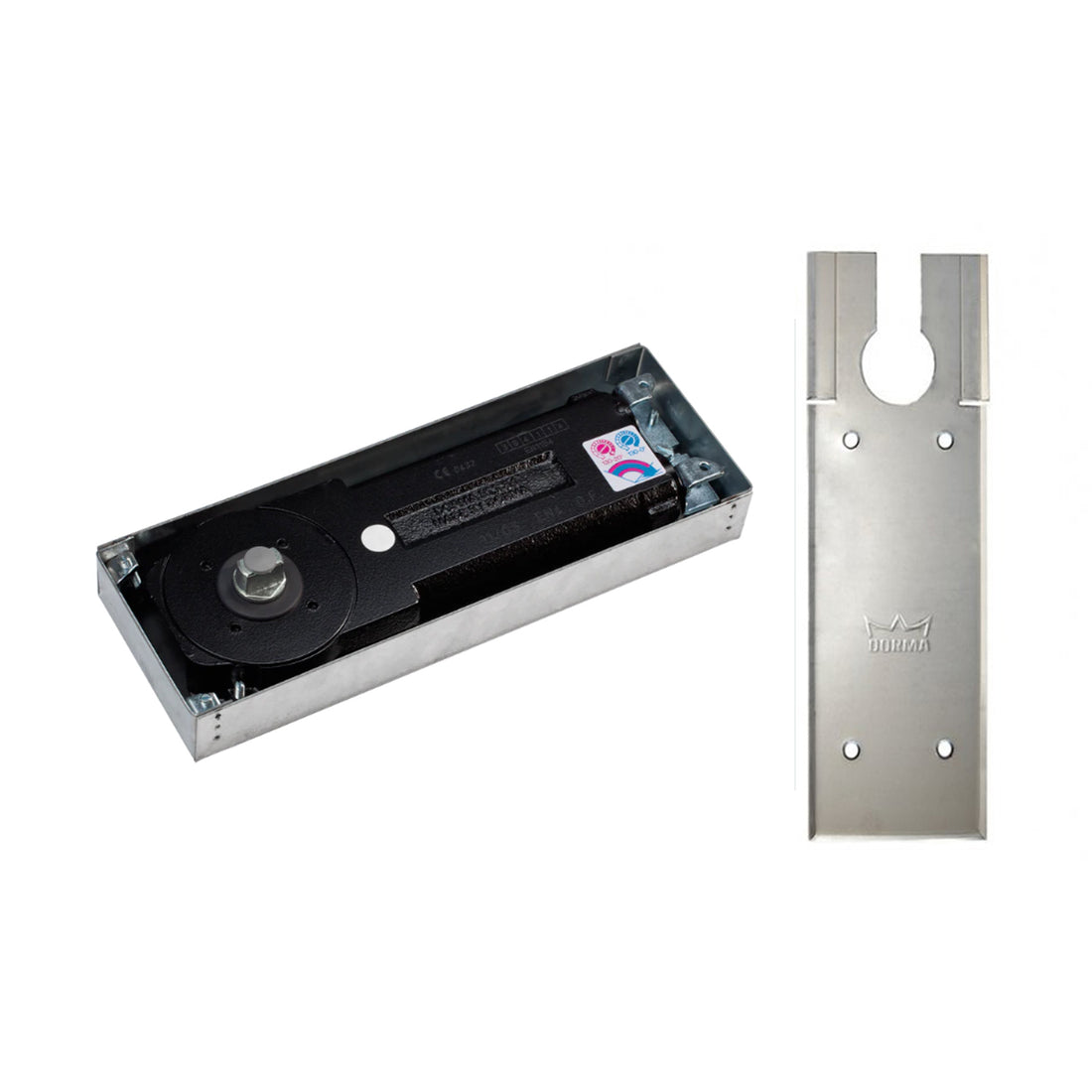

Dormakaba BTS84 EN2 Floor Spring Body Non Hold Open with 8410 Cover Plate

Dormakaba BTS84 EN2 Floor Spring Body Non Hold Open with Cover Plate
811250028410

Floor Spring Body is commonly used in architectural and commercial applications to control the movement of heavy glass doors.

Floor Spring Body Function - designed for heavy doors, particularly glass doors and other commercial applications. Its primary function is to control the movement of these doors, allowing for smooth and controlled opening and closing.

Includes:

• 1 x Dormakaba BTS84 EN2 Floor Spring Body Non Hold Open (DORM81125002)
• 1 x Dormakaba Cover Plate Satin Stainless Steel Suits BTS84 (DORM46700022)

Dormakaba BTS84 Floor Spring
81125002

Features:

• Double-action floor spring which has been specially developed for the aluminum and toughened glass door industries
• With the addition of reduced depth and an array of accessories designed for the aluminum door fabricator and toughened glass door manufacturer
• Easy installation thanks to shallow design
• Easy to adapt to individual requirements with dual valve control 130 degrees to 0 degrees and 130 degrees to 20 degrees
• Interchangeable spindle inserts available to suit site conditions
• Concealed unit for invisible installation
• Thermoconstant smooth operation
• High mechanical efficiency for easy door opening

Specifications:

• Spring Strength: EN2
• Max. Door Width: 850mm
• Closer Option: Non Hold-Open

Certification:

• CE marked
• Successful independently tested to BS EN 1154

Dormakaba 8410 Cover Plate
46700022

Features:

• Suits BTS84 floor spring

Specifications:

• Length: 324mm
• Width: 130mm
• Finish: Satin Stainless Steel
