Dormakaba BTS84 Floor Spring for Timber and Aluminium Doors Hold Open Option
RRP: $400.16
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

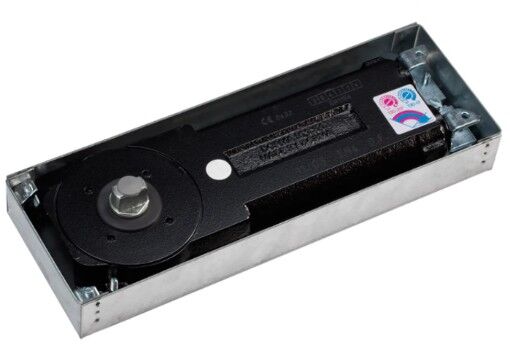

Dormakaba BTS 84 Floor Spring
Floor Spring Door Closer is a mechanical door closing device mostly used for glass doors along with patch fitting. Mostly used where both pull and push movement is required. Floor springs are used is in Interior doors of a Business park, Malls, Hospital building.
Floor Spring Door Closer Function - designed to hold the door open when the door is opened past 90 degrees. Simple pushing of the door towards the closed position, activates the closer and it also commences the closing action of the door.
- Double-action floor spring which has been specially developed for the aluminum and toughened glass door industries.
- BTS 84 has many of the features of the other Dormakaba BTS closers with the addition of reduced depth and an array of accessories designed for the aluminum door fabricator and toughened glass door manufacturer.
Includes:
- 1 x Dormakaba BTS84 EN2 Floor Spring Body Non Hold Open (81125002)
Features:
- Spring Strength: EN2 and EN4
- Max. Door Width: 850mm and 1100mm
- Closer Option: Hold Open and Non Hold-Open
- Features Adjustable sweep speed: 130 - 20 degrees
- Adjustable second sweep speed: 130 - 0 degrees
- Certification CE marked
- Successful independently tested to BS EN 1154
Specifications:
- Height: 40mm
- Length: 306mm
- Width: 108mm
Dormakaba BTS84 Floor Spring
81125002
Floor Spring Door Closer is a mechanical door closing device mostly used for glass doors along with patch fitting. Mostly used where both pull and push movement is required. Floor springs are used is in Interior doors of a Business park, Malls, Hospital building.
Floor Spring Door Closer Function - designed to hold the door open when the door is opened past 90 degrees. Simple pushing of the door towards the closed position, activates the closer and it also commences the closing action of the door.
- Double-action floor spring which has been specially developed for the aluminum and toughened glass door industries.
- With the addition of reduced depth and an array of accessories designed for the aluminum door fabricator and toughened glass door manufacturer.
Features:
- Easy installation thanks to shallow design
- Easy to adapt to individual requirements with dual valve control 130 degrees to 0 degrees and 130 degrees to 20 degrees
- Interchangeable spindle inserts available to suit site conditions
- Concealed unit for invisible installation
- Thermoconstant smooth operation
- High mechanical efficiency for easy door opening
- Optional single point hold-open
Specifications:
- Spring Strength: EN2
- Max. Door Width: 850mm
- Closer Option: Non Hold-Open
Certification:
- CE marked
- Successful independently tested to BS EN 1154
