Dormakaba BTS84 Floor Spring for Timber and Aluminium Doors Hold Open Option

Dormakaba EN4 90 Degrees Timber Combi Pack Floor Spring Body Hold Open
BTS844T90

Floor Spring Door Closer is a mechanical door closing device mostly used for glass doors along with patch fitting. Mostly used where both pull and push movement is required. Floor springs are used is in Interior doors of a Business park, Malls, Hospital building.

Floor Spring Door Closer Function - designed to hold the door open when the door is opened past 90 degrees. Simple pushing of the door towards the closed position, activates the closer and it also commences the closing action of the door.

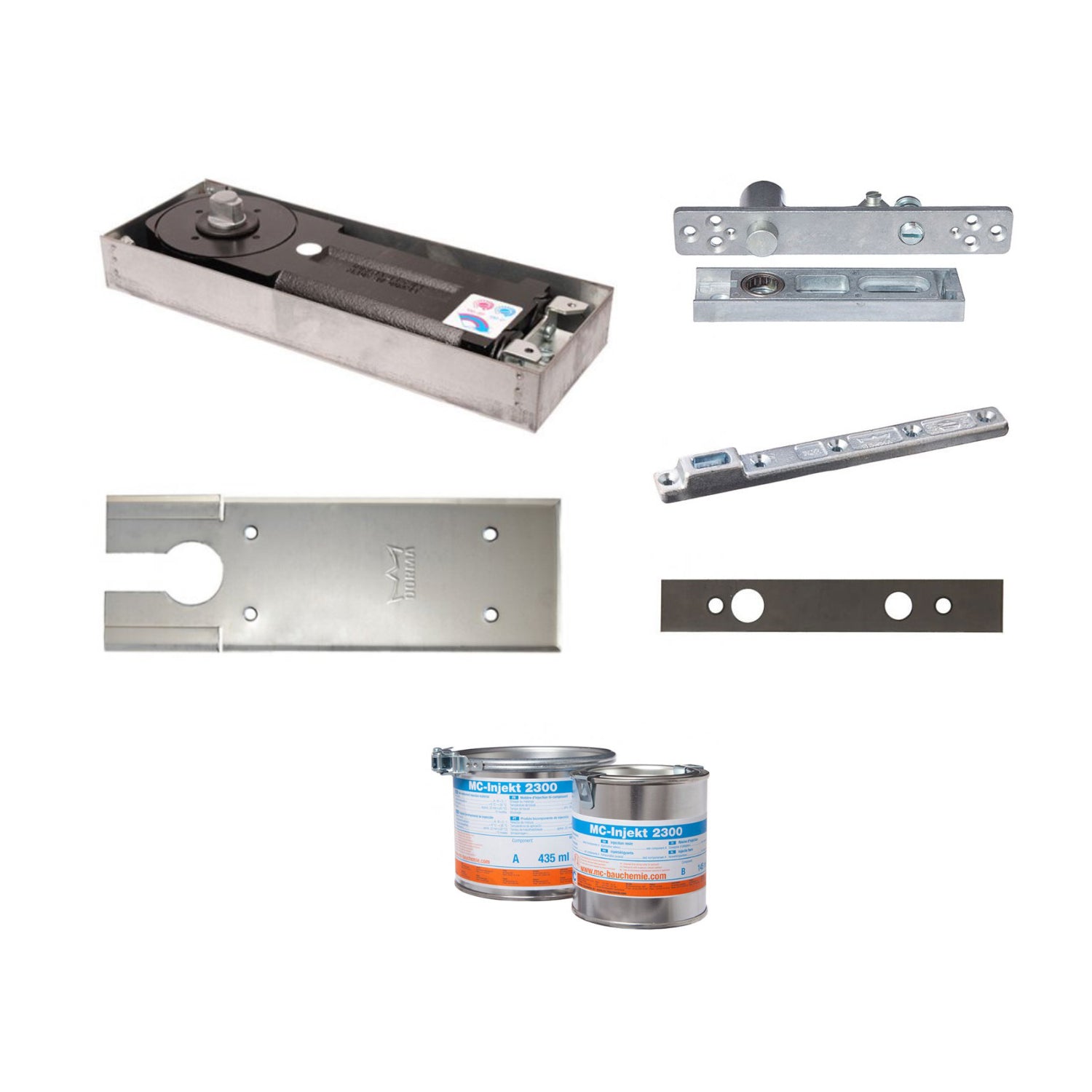

Includes:

• 1 x Dormakaba BTS84 HO EN4 Floor Spring Body with Hold Open 90 Degrees 81200002
• 1 x Dormakaba Top Center for Double Action Doors 46300003
• 1 x Dormakaba Bottom Strap for Double Action Doors 7421
• 1 x Dormakaba 8064 Cover Plate Satin Stainless Steel 46020044
• 1 x Dormakaba 8410 Cover Universal Cover Plate Satin Stainless Steel Suits BTS84
• 1 x Dormakaba Sealing Compound 2300

Features:

• Double-action floor spring which has been specially developed for the aluminum and toughened glass door industries.
• BTS 84 has many of the features of the other Dormakaba BTS closers with the addition of reduced depth and an array of accessories designed for the aluminum door fabricator and toughened glass door manufacturer.

Specifications:

• Spring Strength: EN4 (Door weight 40-80kg)
• Max. Door Width: 1250mm
• Closer Option: Hold-Open
• Certification CE marked
• Successful independently tested to BS EN 1154
