SKU: DORMTS92B24GNRF
Dormakaba TS92B Door Closer EN1-4 Pull Side Hold Open With Arm TS92B24GNRF
RRP: $677.90
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Dormakaba Door Closer TS92B EN1-4 Pull Side Hold Open With Arm
TS92B24GNRF
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a prevention measure, typically installed on doors, as well as helping to prevent draughts.
Includes:
- 1 x Dormakaba Door Closer Hold Open (18570000)
- 1 x Dormakaba TS92B EN1-4 Door Closer Pull Side with Arm 42020201

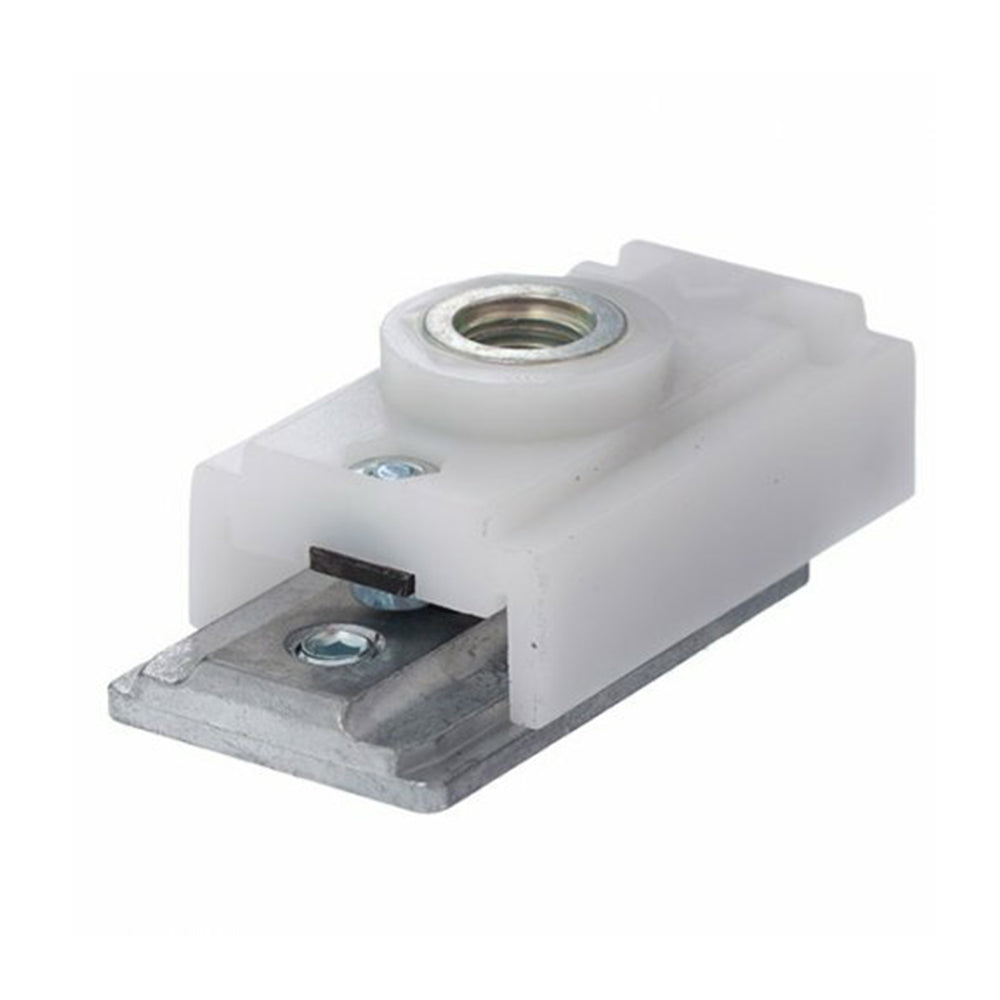

Dormakaba Door Closer Hold Open Device
TS93 18570000
Features:
- The Dormakaba RF is a non-handed mechanical hold-open unit. The hold-open unit can be switched on and off by the user as required, and the pull-off force can be adjusted to suit each individual door situation.
- The Dormakaba RF hold-open unit can also be supplied for retrofitting to the slide channel at a later date. Hold open is not suitable for fire or smoke doors.
Specifications:
- Closing Force: EN1-4
- Standard Doors: 1100mm
- Non-handed design: Yes
- Height: 65mm
- Length: 281mm
- Overall Depth: 47mm

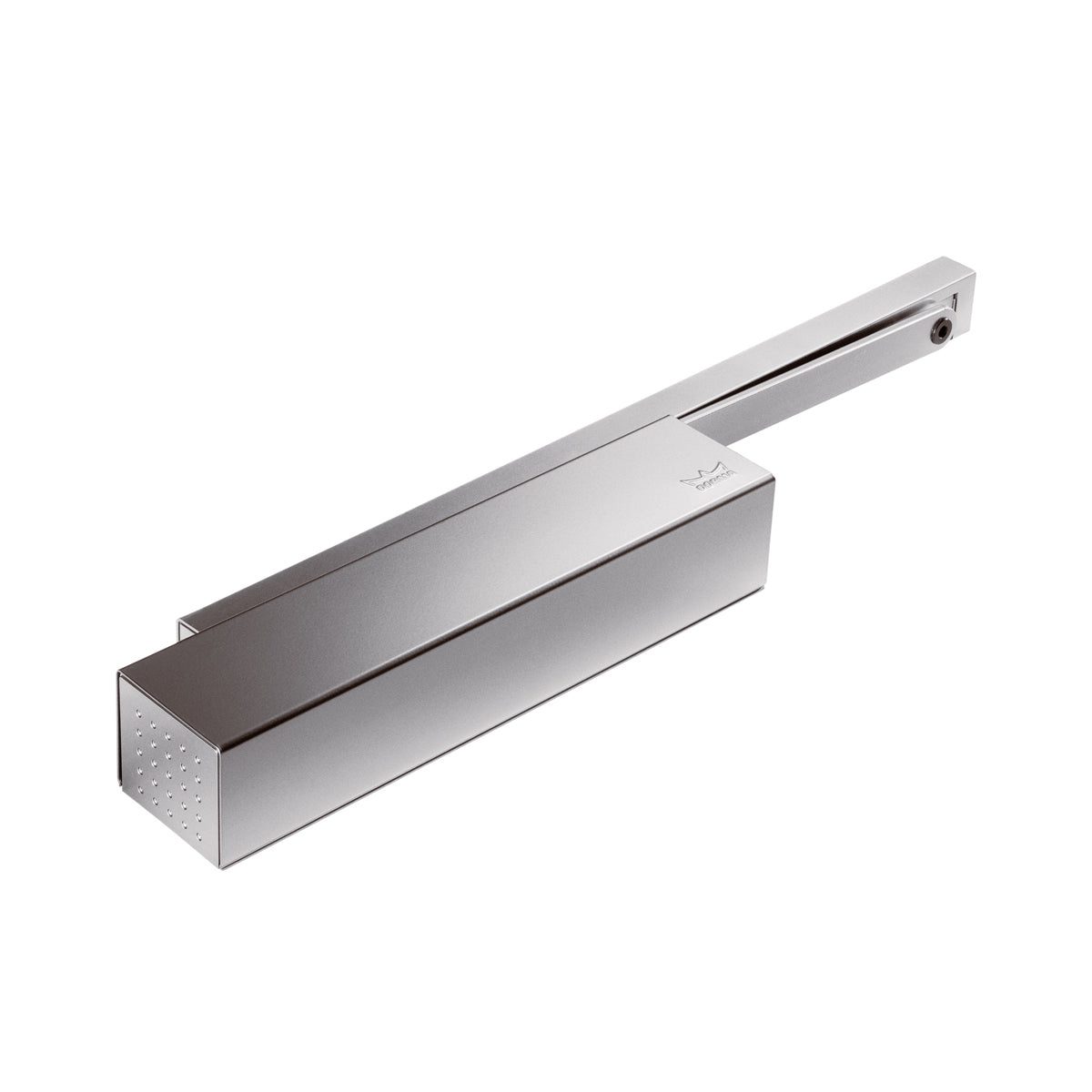

Dormakaba Door Closer
TS92BSE
Features:
- Perfect choice for interior doors
- Designed especially for interior applications, the universal Dormakaba TS 92 door closer for standard doors in the award winning Contur design offer’s excellent ease of use due to the EASY OPEN Cam action technology.
- With its cam action mechanism, high efficiency and adjustable power the TS92 provides exceptional ease of operation by all users whilst providing full and secure closing of the door.
- Non-handed closer suitable for interior doors and comes with a linear drive mechanism with heart-shaped cam (Contur design)
- Standard model for pull-side door leaf fixing/push-side transom fixing.

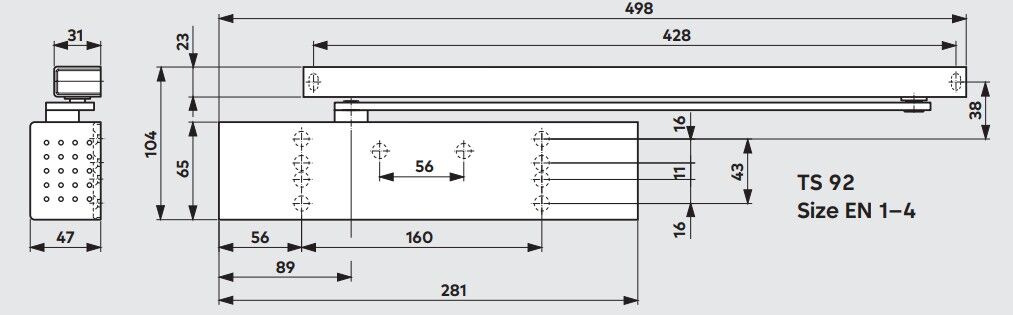

Specifications:
- Length: 281mm
- Width: 47mm
- Height: 65mm
- Closing force Adjustable Size: EN 1-4
- Standard doors: up to 1100mm
- External doors, outward opening: No
- Non-handed design: Yes
- Arm assembly type: Slide channel
-
Closing speed and latching action independently adjustable at two separate valves:
- 180 degrees to 15 degrees
- 15 degrees to 0 degrees
- Backcheck: No
- Delayed action: No
- Weight: 2.0 kg
- Finish: Silver
Dormakaba Door Closer TS92B EN1-4 Pull Side Hold Open With Arm
TS92B24GNRF
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a prevention measure, typically installed on doors, as well as helping to prevent draughts.
Includes:
- 1 x Dormakaba Door Closer Hold Open (18570000)
- 1 x Dormakaba TS92B EN1-4 Door Closer Pull Side with Arm 42020201
Dormakaba Door Closer Hold Open Device
TS93 18570000
Features:
- The Dormakaba RF is a non-handed mechanical hold-open unit. The hold-open unit can be switched on and off by the user as required, and the pull-off force can be adjusted to suit each individual door situation.
- The Dormakaba RF hold-open unit can also be supplied for retrofitting to the slide channel at a later date. Hold open is not suitable for fire or smoke doors.
Specifications:
- Closing Force: EN1-4
- Standard Doors: 1100mm
- Non-handed design: Yes
- Height: 65mm
- Length: 281mm
- Overall Depth: 47mm
Dormakaba Door Closer
TS92BSE
Features:
- Perfect choice for interior doors
- Designed especially for interior applications, the universal Dormakaba TS 92 door closer for standard doors in the award winning Contur design offer’s excellent ease of use due to the EASY OPEN Cam action technology.
- With its cam action mechanism, high efficiency and adjustable power the TS92 provides exceptional ease of operation by all users whilst providing full and secure closing of the door.
- Non-handed closer suitable for interior doors and comes with a linear drive mechanism with heart-shaped cam (Contur design)
- Standard model for pull-side door leaf fixing/push-side transom fixing.
Specifications:
- Length: 281mm
- Width: 47mm
- Height: 65mm
- Closing force Adjustable Size: EN 1-4
- Standard doors: up to 1100mm
- External doors, outward opening: No
- Non-handed design: Yes
- Arm assembly type: Slide channel
- Closing speed and latching action independently adjustable at two separate valves:
- 180 degrees to 15 degrees
- 15 degrees to 0 degrees
- Backcheck: No
- Delayed action: No
- Weight: 2.0 kg
- Finish: Silver
