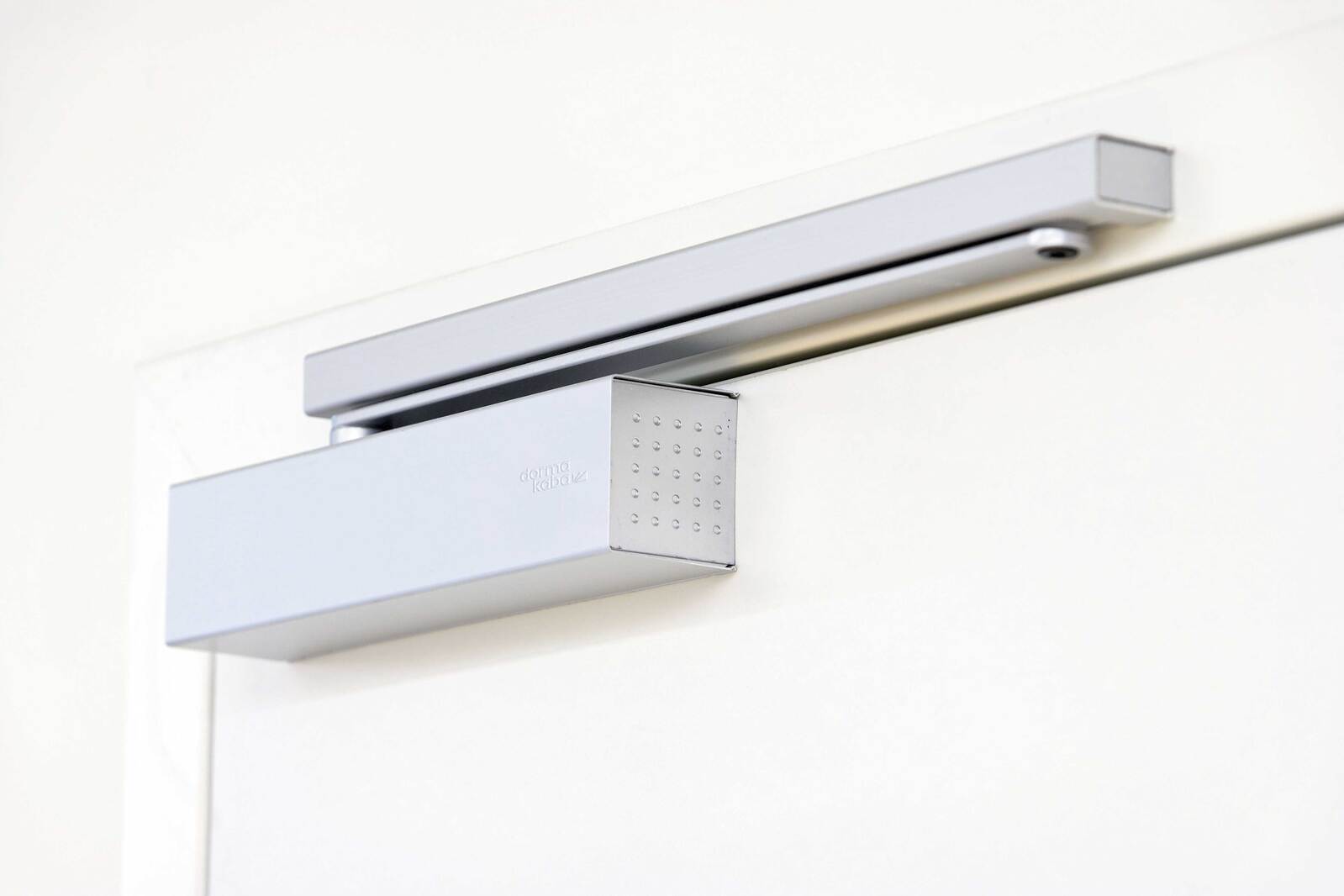

Dormakaba Cam Action Door Closer EN1-5 Push Side Hold Open w/ Angle Bracket & Arm TS93G15GNRFAB

Dormakaba Door Closer EN1-5 Push Side Hold Open w/ Angle Bracket & Arm
TS93G EN1-5 SIL

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a prevention measure, typically installed on doors, as well as helping to prevent draughts.

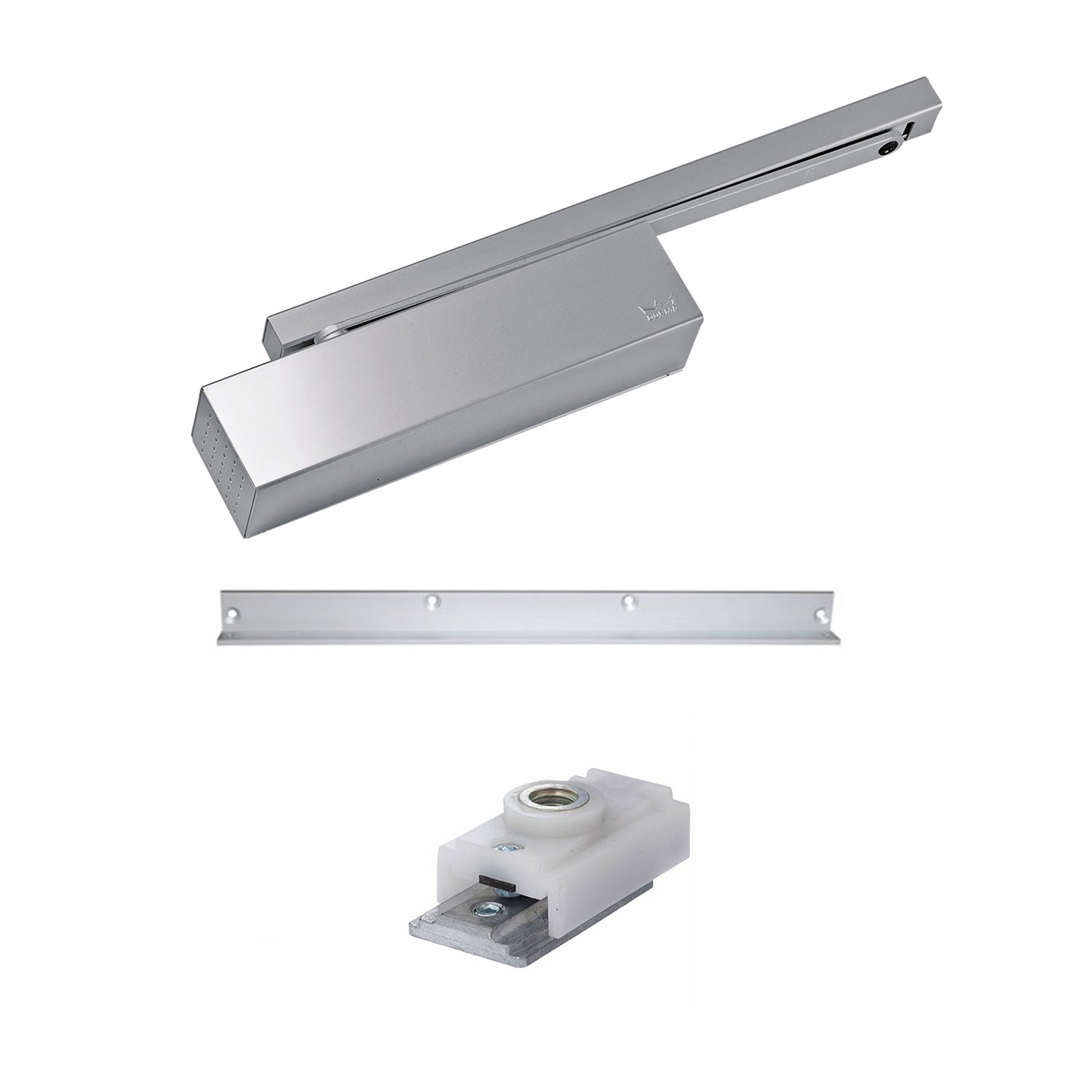

Includes:

• 1 x Dormakaba Door Closer TS93G EN1-5 Push Side Silver  (43100501)
• 1 x Dormakaba 93GN Slide Arm and Channel Silver (64010001)
• 1 x Dormakaba Hold Open Device (18570000)
• 1 x Dormakaba TS92AB Angle Bracket Suits G92/G93 N/RF Silver (64430001)

Features:

• Mounted on push side of door
• Adjustable closing force size EN1-5
• Suitable for standard doors up to 1250mm wide
• For External doors up to 1250mm
• Slide channel arm assembly
• Closing force variable by means of adjustment screw
• Closing speed adjustable by valve
• Latching speed adjustable at valve
• Backcheck (BC/OD) adjustable at valve
• Delayed action (DC/SV) adjustable at valve

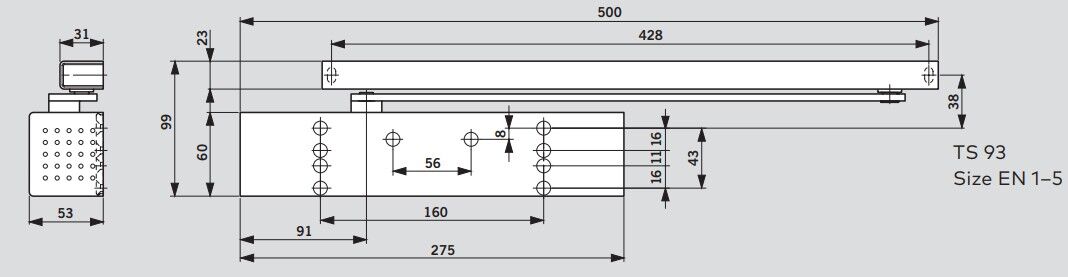

Specifications:

• Length: 275mm
• Depth: 53mm
• Height: 60mm
• Weight: 3.5kg
• Finish: Silver

Dormakaba Door Closer Hold Open Device
TS93 18570000

Features:

• The Dormakaba RF is a non-handed mechanical hold-open unit. The hold-open unit can be switched on and off by the user as required, and the pull-off force can be adjusted to suit each individual door situation.
• The Dormakaba RF hold-open unit can also be supplied for retrofitting to the slide channel at a later date. Hold open is not suitable for fire or smoke doors.

Suits: TS91 TS92 TS93

Dormakaba G-N Angle Bracket For TS92/TS93 N/RF Door Closer
64430001

Features:

• For push-side fixing of the slide channel to door frames with a deep reveal

Specifications:

• To Suit: TS92G & TS93G
• Finish: Silver
