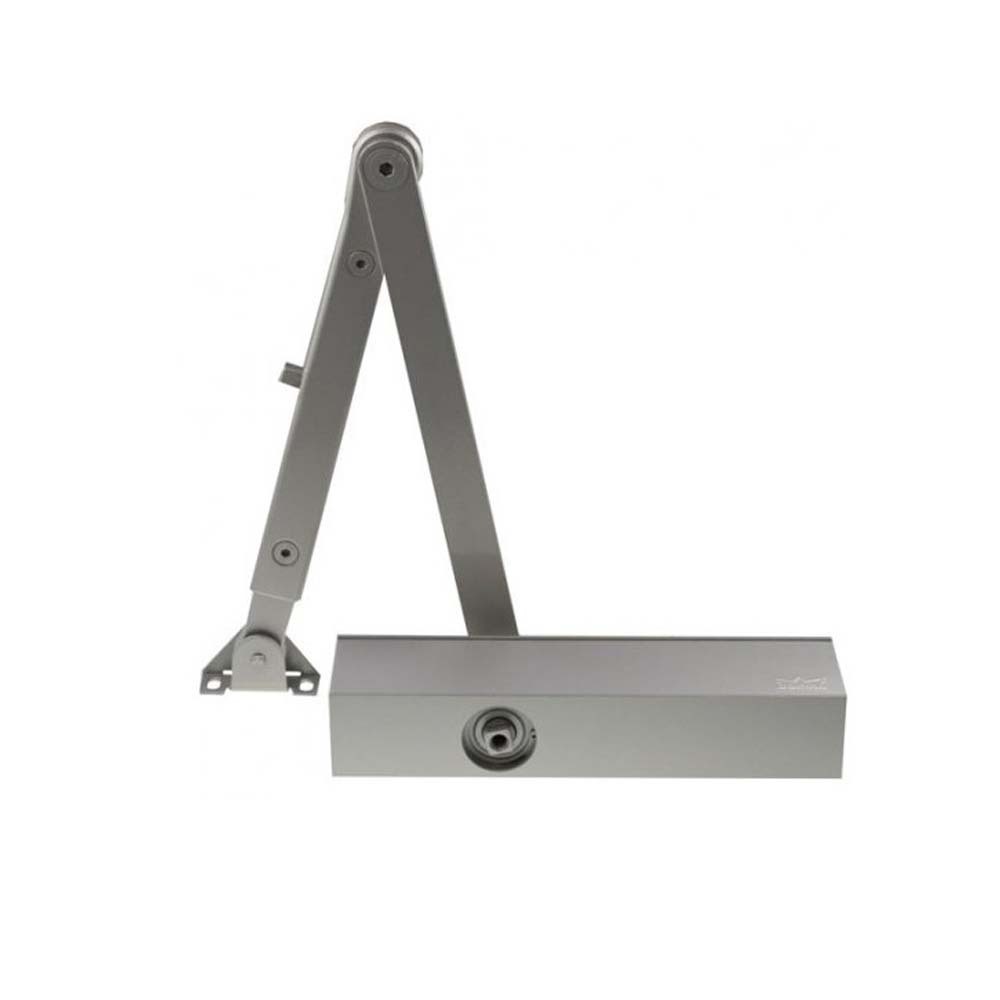

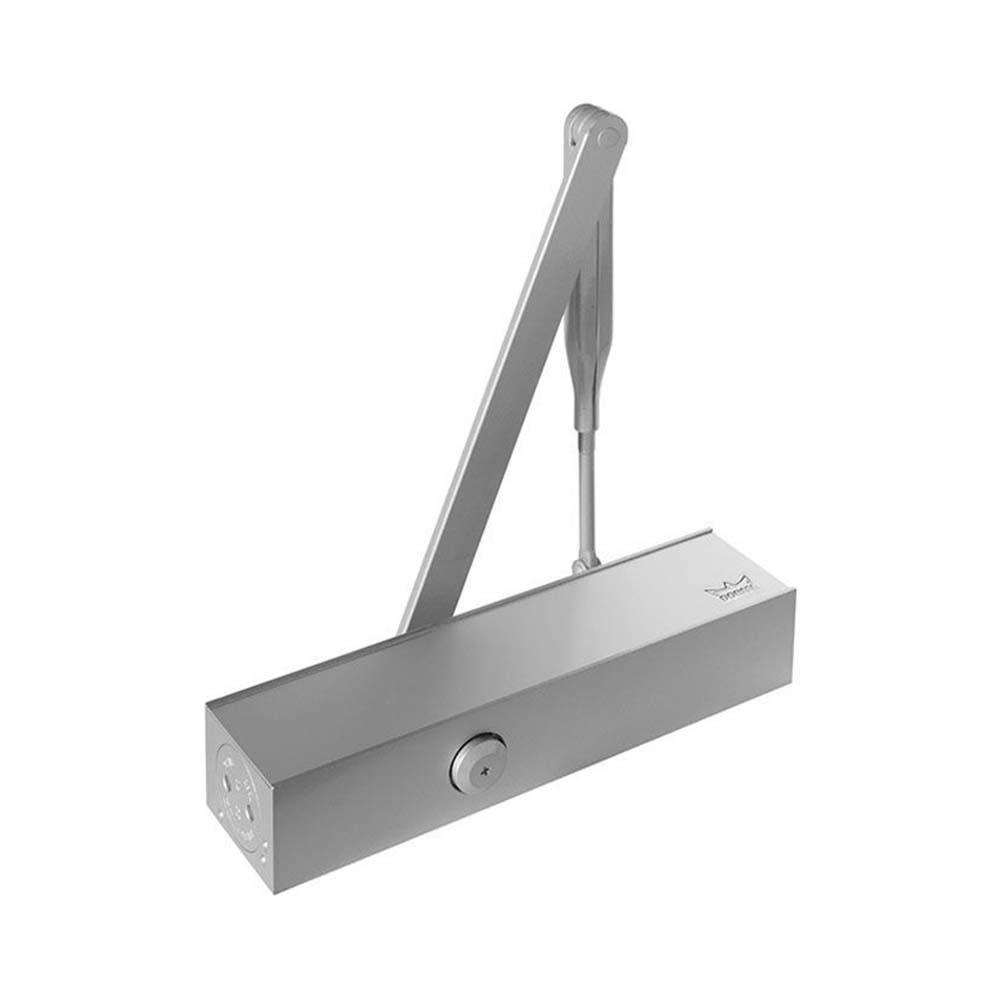

Dormakaba TS73 EN1-4 Door Closer Hold Open Silver 37023301

Dorma TS73 EN1-4 Door Closer Hold Open
37023301

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

• Rack & Pinion mechanism
• Tested to EN1154
• Hold open function can be switched on or off by user
• Overhead surface mounted door closer
• Parallel arm mounting doors up to 950 mm
• Standard arm assembly

Specifications:

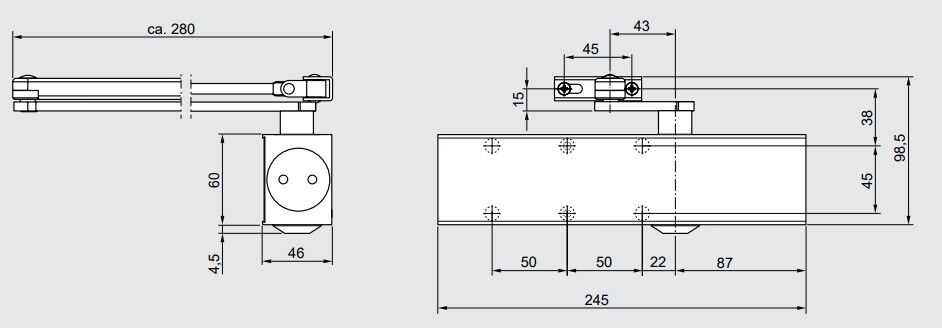

• Length: 245mm
• Width: 46mm
• Height: 60mm
• Adjustable Closing Speed: Yes
• Adjustable Latching Speed: Yes
• Has Backcheck: Yes
• Has Delay Action: Yes
• Has Holdopen: Yes
• Has Slide Arm: No
• Parallel Arm Bracket Included: Yes
• Spring Strength: EN1-4
• Material: Aluminium
• Max Opening: 180 Degress
• Max Door Width: 1100mm
• Includes PA bracket: Yes
• Includes Fixing Screws: Yes
• Max Door Weight: 80kg
• Finish: Silver

Note: This product is not suitable for Fire Doors
