Dormakaba TS92G EN1-4 Door Closer Push Side Hold Open With Arm TS92G24GNRFAB

Dormakaba Door Closer
TS92G24GNRFAB

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a prevention measure, typically installed on doors, as well as helping to prevent draughts.

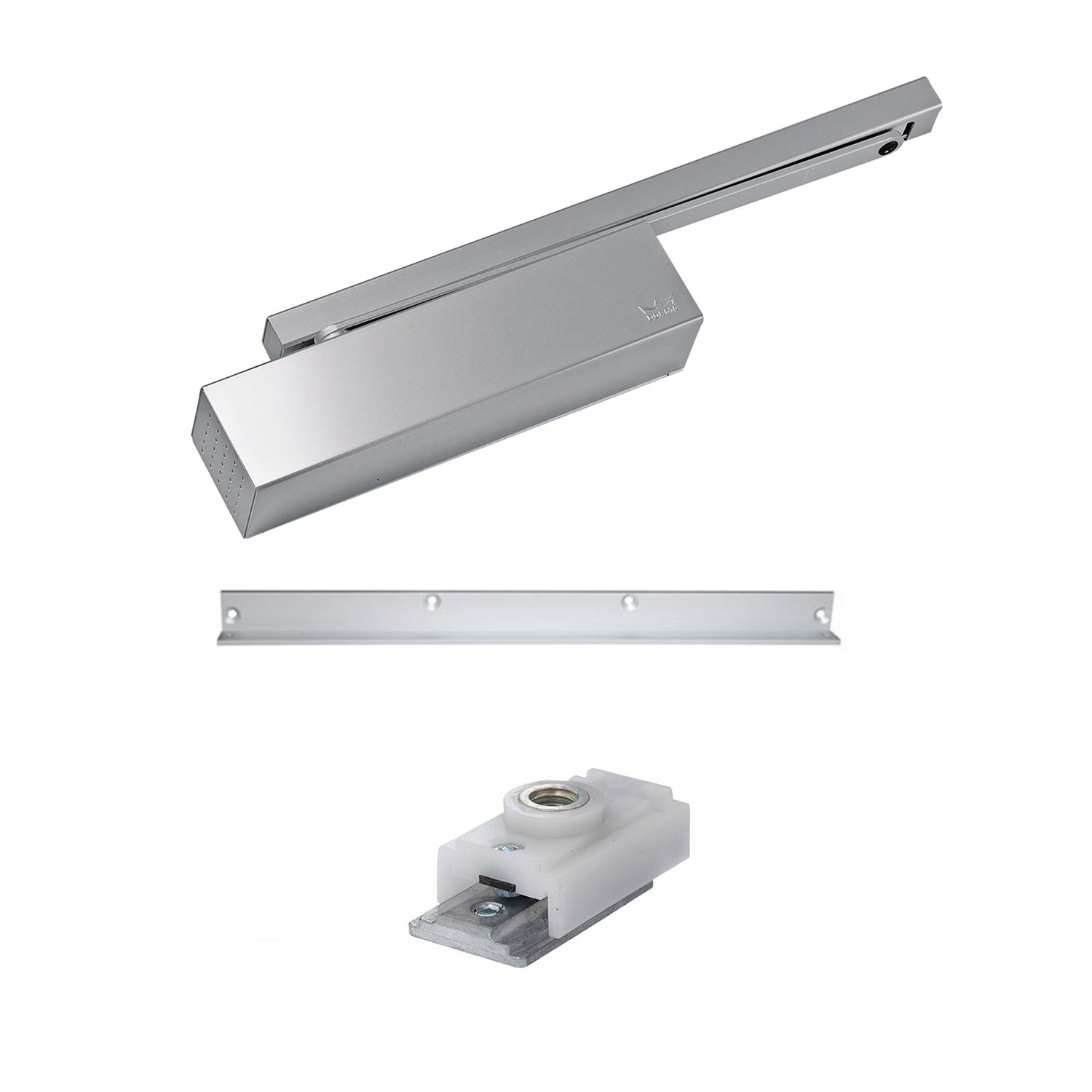

Includes:

• 1 x Door Closer TS92G Including Arm EN1-4 (42030201)
• 1 x Hold Open Device (18570000)
• 1 x Dormakaba Angle Bracket G-N Channel Suit G92/G93 N/RF Closer Silver (64430001)

Features:

• Suitable for installation on doors up to 1100mm
• Special model for push side door leaf fixing/pull transom fixing

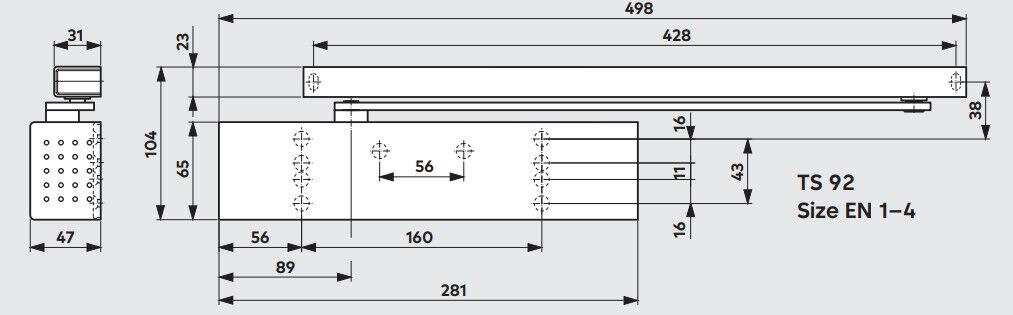

Specifications:

• Length: 281mm
• Width: 47mm
• Height: 65mm
• Max Opening: 145 Degress
• Adjustable Closing Speed: Yes
• Adjustable Latching Speed: Yes
• Has Backcheck: No
• Has Delay Action: No
• Has Holdopen: Optional
• Has Slide Arm: Yes
• Spring Strength: EN1-4
• Suits Push Side Of Door: Yes
• Material: Cast Iron
• Finish: Silver

Dormakaba Door Closer Hold Open Device
TS93 18570000

Features:

• The Dormakaba RF is a non-handed mechanical hold-open unit. The hold-open unit can be switched on and off by the user as required, and the pull-off force can be adjusted to suit each individual door situation.
• The Dormakaba RF hold-open unit can also be supplied for retrofitting to the slide channel at a later date. Hold open is not suitable for fire or smoke doors.

Suits: TS91 TS92 TS93

Note: Hold open option is not approved on any fire door.

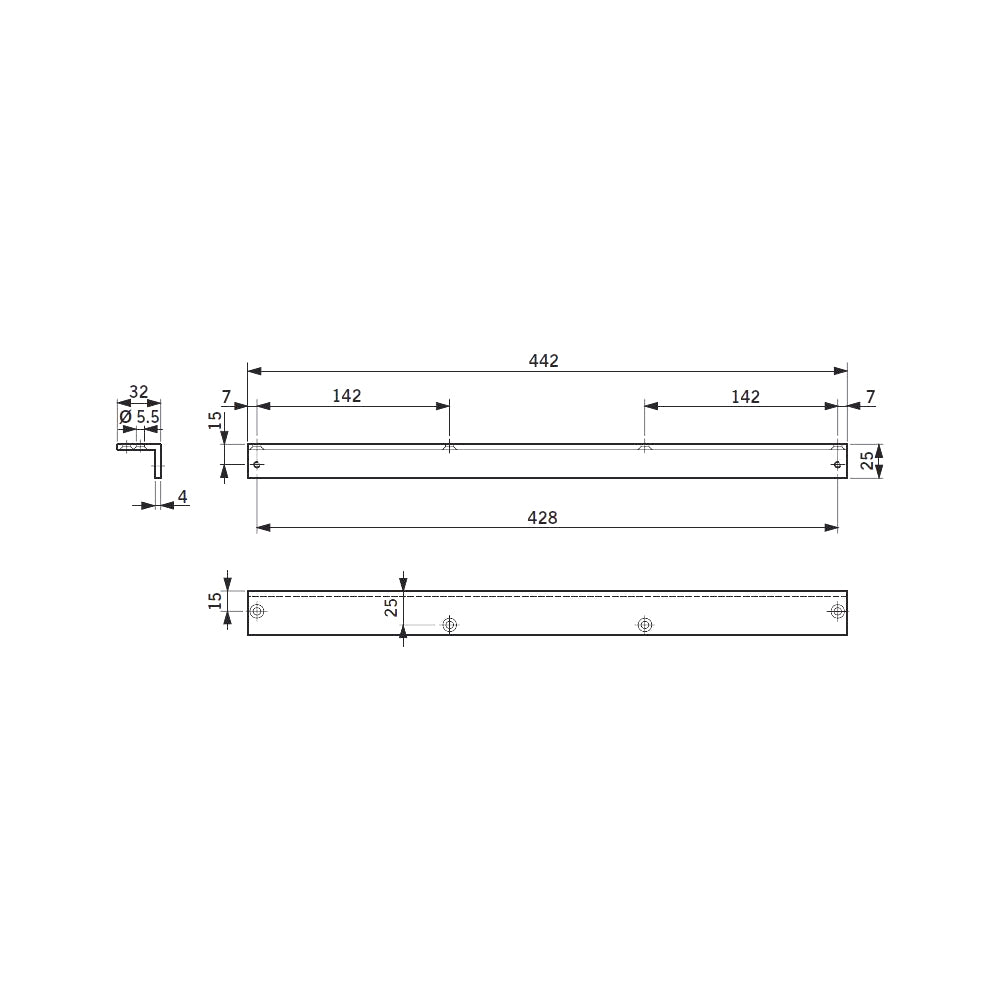

Dormakaba Angle Bracket G-N Channel Suit G92/G93 N/RF Closer
64430001

Specifications:

• To Suit: TS92G & TS93G is for push-side fixing of the slide channel to door frames with a deep reveal
• Finish: Silver
