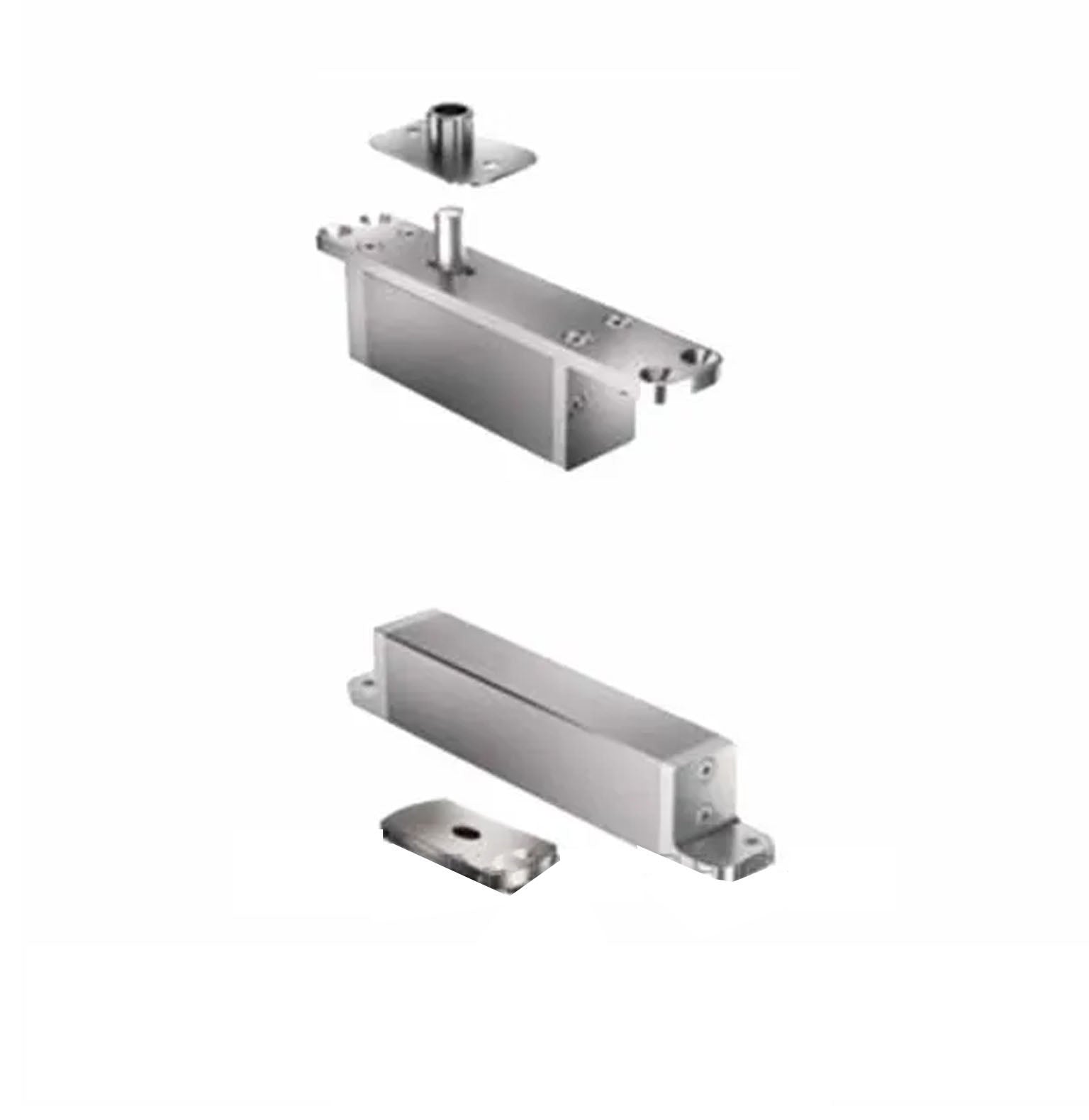

FritsJurgens Set System FX | 70mm Pivot Point Floor Plate Satin Stainless Steel FJS/STFX70CSSS

FritsJurgens Set System
FJS/STFX70CSSS

Pivot Sets are commonly used for large and heavy doors that could pose challenges for traditional hinge systems. These doors might include oversized commercial doors, industrial doors, and entrance doors in public buildings.

Pivot Set Function - used to facilitate the rotation or pivoting of doors around a vertical axis. Pivot sets are designed to enable doors to swing smoothly and efficiently while providing stability and support. They are often used in situations where traditional hinges may not be suitable due to the size, weight, or design of the door.

Features:

• The System Fx offers perfection in a compact design
• Ideal for interior door applications, this solution offers a minimalistic, sleek design with maximum durability thanks to its extreme high quality. Ideal for quick and easy installation without compromising on strength or aesthetics
• Supplied with Fixings

Specifications:

• Material: Stainless Steel 420 Surgical Grade, Anodised Aluminium
• Maximum Door Height: Unlimited
• Maximum Door Width: 470mm To 2379mm
• Door Rotation: Revolving 360 degrees
• Hold Positions: 0 degrees - 90 degrees to 180 degrees and 270 degrees
• Door Rotation:
  • Double-acting: 180 degrees
  • Single-acting: 90 degrees
• Hold Positions: 90 degrees to 90 degrees and 0 degrees
• Hold Positions: 90 degrees and 0 degrees
• Door Thickness: 40mm (minimum)
• Maximum Door Weight: Class C 20kg to 209kg
• Pivot Point: 70mm Minimum
• Finish: Satin Stainless Steel
