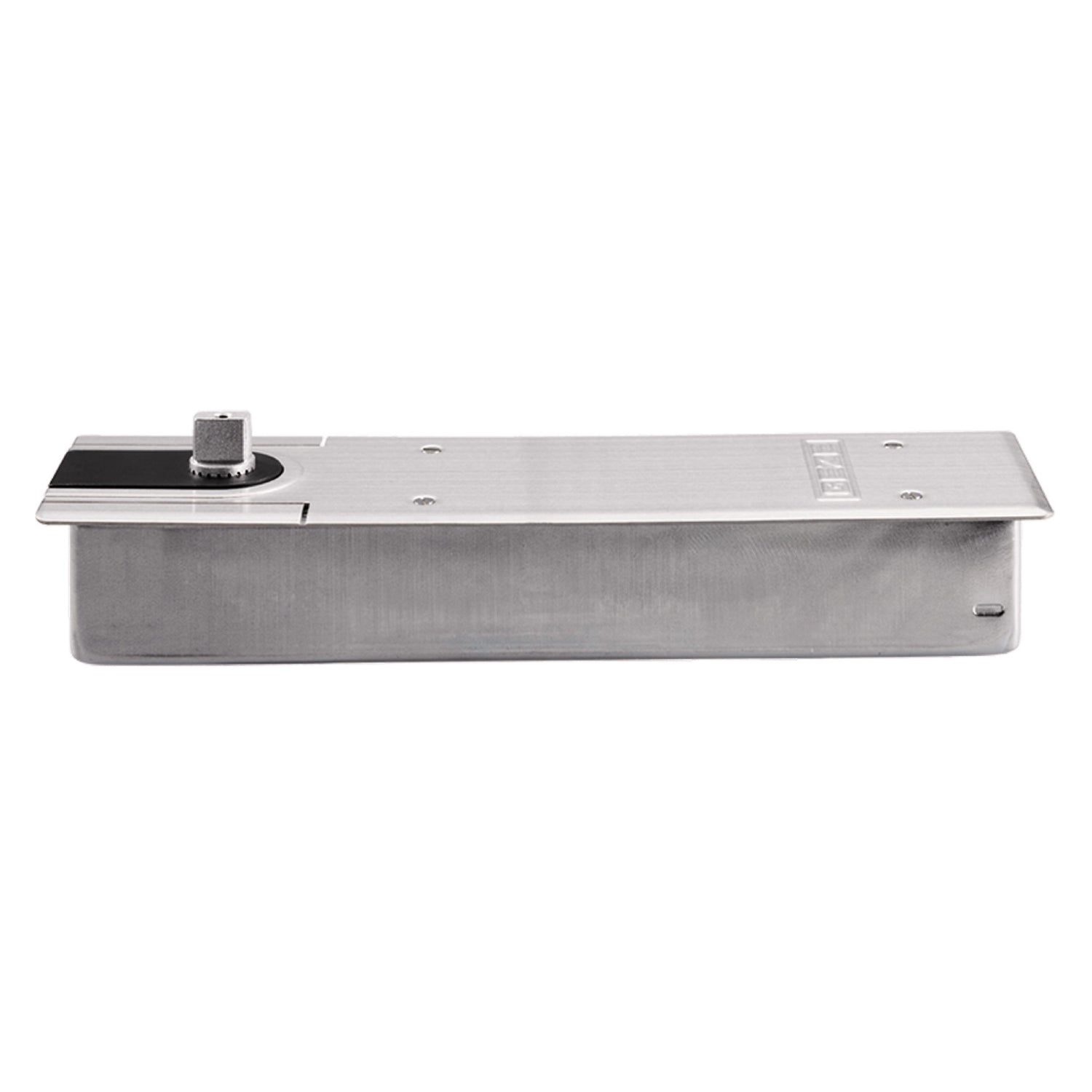

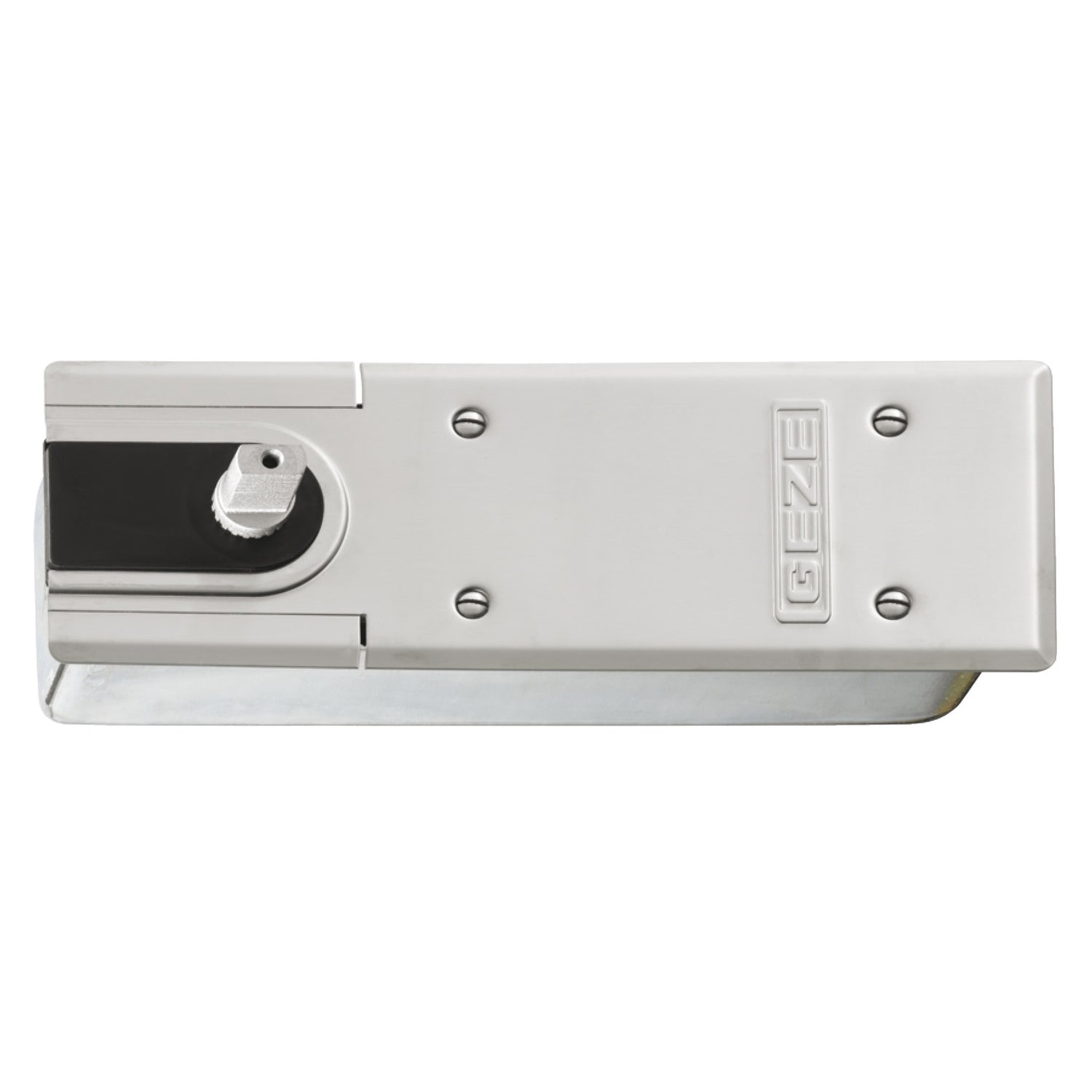

Hafele Geze EN 1-4 TS 500 NV Floor Spring with Hold Open 90 Degrees 932.10.052

Hafele Geze EN 1-4 TS 500 NV Floor Spring
932.10.052

Floor Spring Door Closer is commonly used in architectural and commercial applications to control the movement of heavy glass doors.

Floor Spring Body Function - designed for heavy doors, particularly glass doors and other commercial applications. Its primary function is to control the movement of these doors, allowing for smooth and controlled opening and closing.

Specifications:

• For Door Weight: Up to 150 kg
• Mounting: For DIN left and DIN right hand use
• Area of application: For single action and double action doors
• Version:
  • With fixed backcheck
  • With hold-open function 90 Degrees with single action doors
  • Safety valve against overloading
• Adjustment Facility: Closing force, closing speed and latching action adjustable
• Closing Force: 1–4 in accordance with EN 1154
• Closing Effect: from approx. 170 Degrees
• Standard: Certified in compliance with EN 1154:1996/A1:2002
• Grade: 3|8|1 – 4|0|1|4
• For Door Width: Maximum 1,100.00mm

Note:

• Cover plate not included.
• GEZE Sealing Compound must be used for all external installations or where moisture is present (not inlcluded).
