Kilargo Aluminium Meeting Stile Seal for Double Action Fire Door - Available in Various Sizes

Kilargo Aluminium Meeting Stile Seal for Double Action Fire Door

Meeting Stile are seals for frameless glass sliding doors.

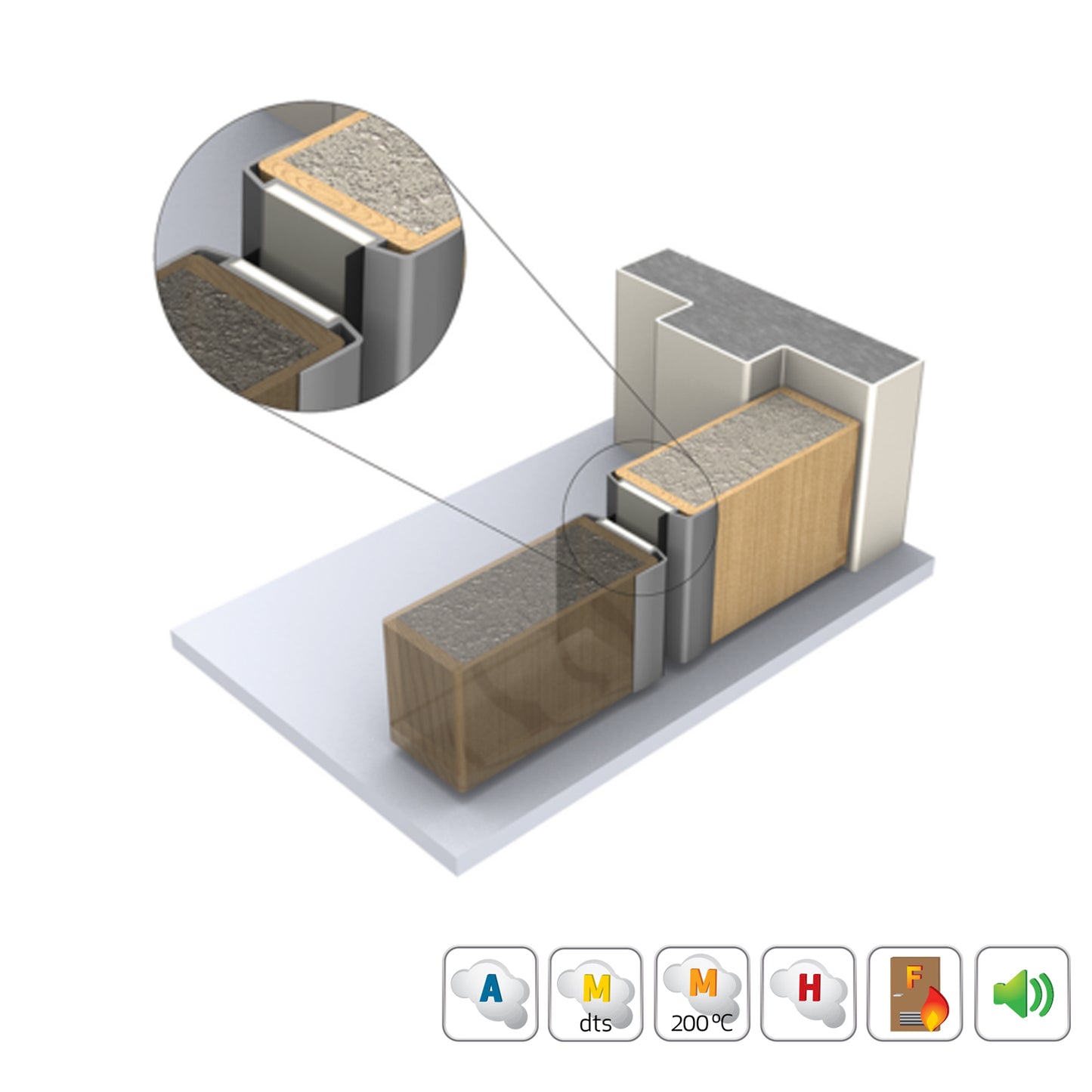

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

• New modern and aesthetic appearance
• Incorporates intumescent fire and smoke sealing technology
• Improves acoustic performance
• Can be used to upgrade existing fire doors
• Easy installation
• Sold as complete assembly incorporating 2 identical aluminium sections and PVC encased intumescent seals with elastomeric
  smoke and acoustic fins

Fixing:

• The Kilargo FDMS-B bullnose stiles come complete with the aluminium sections and intumescent fire and smoke seals. Simply cut to length, screw aluminium sections onto the respective door leaves and insert the intumescent seals using aggressive self
  adhesive backing tape.

Specifications:

• Material: Anodised Aluminium
• Available Sizes (Length):
  • 2135mm
  • 2440mm
  • 3050mm
  • 3500mm
• Finish: Clear Anodised

Approvals:

• Fully tested to AS1530 Part 4 for up to 2 hours on proprietary fire door assemblies in accordance with AS1905 Part 1
• Conforms with BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2.
