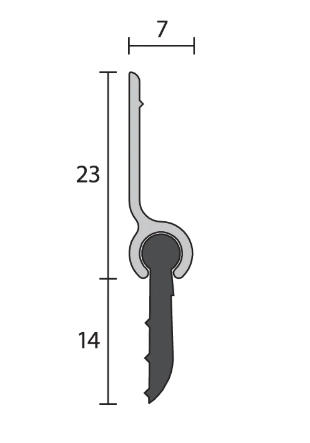

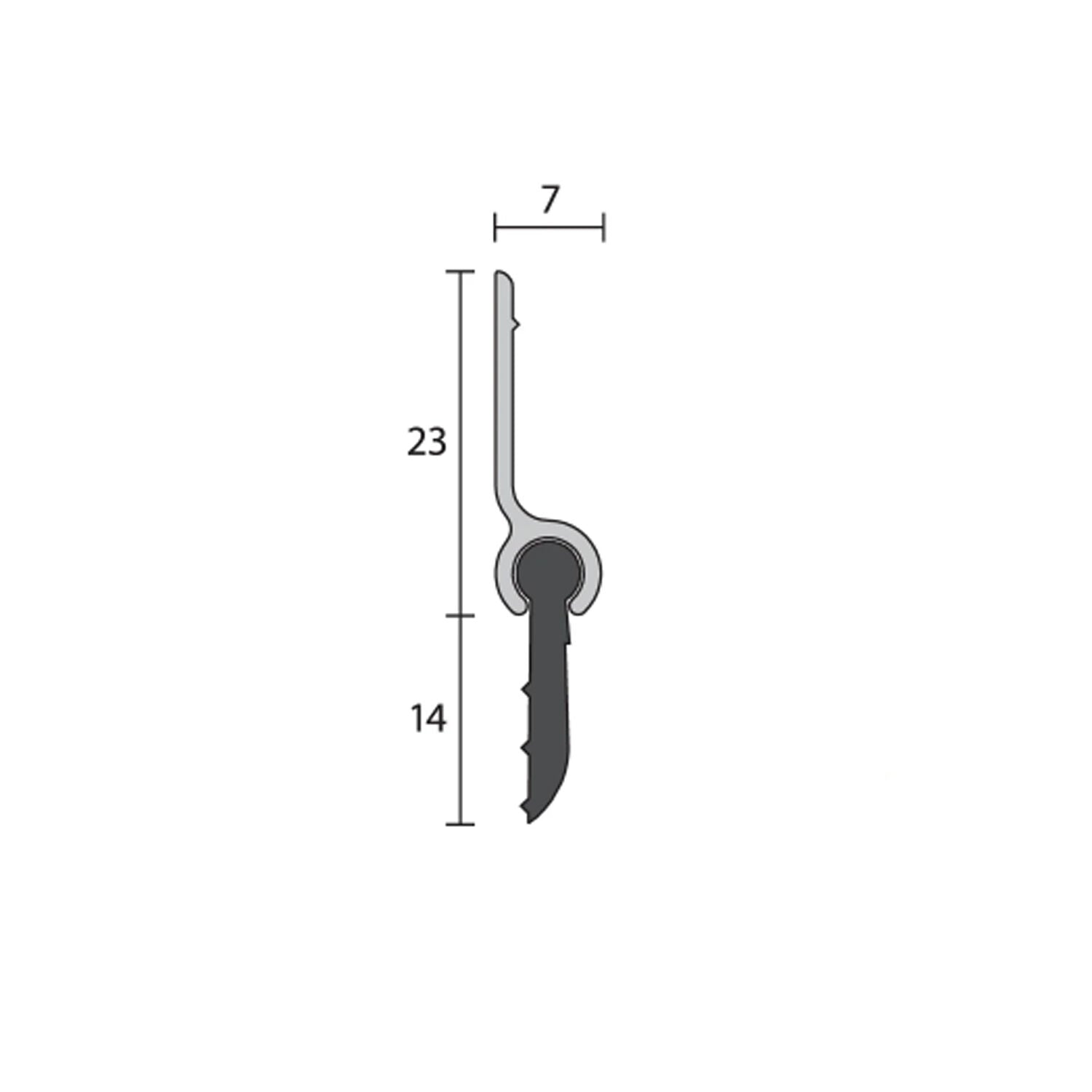

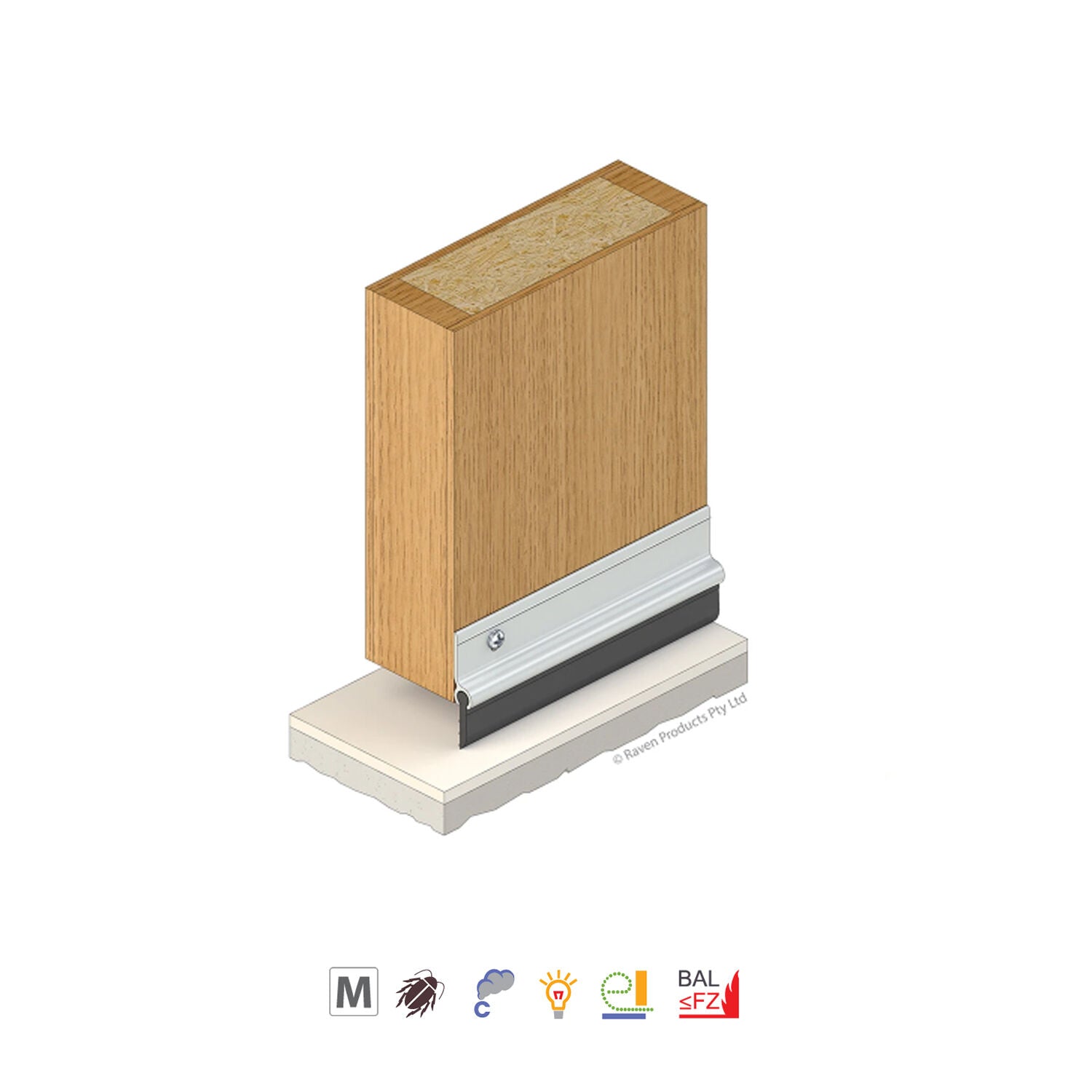

Raven RP5 Bottom Weather Strip Sweep Door Seal
A5C1000
Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:
- Global GreenTag - Platinum
- A Flexible EPDM weather strip sweep seal that fits to the bottom of doors
- Ideal for screen doors and sash windows to prevent insects from entering up the face of the glass.
- Quick and easy to install to the door bottom, being fitted without removing the door.
- Also ideal for garage tilt-up doors.
- Can be used in conjunction with Raven RP13 and RP82 threshold plates.
- Screws supplied
Specification:
- Fixing: Screw Fixed
- Min & Max Gap: 0mm to 15mm
- Material: Anodised aluminium with solid EPDM gasket
- Door/Frame Construction: Timber, Aluminium
- Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening, Security Screen, Bi-fold
- Garage Door Type: Tilt-up
- Window Type: Single Hung Sash, Double Hung Sash
- Location: Bottom of doors, sash windows or around stiles of tilt up doors
- Replacement Seals: RP303
-
Available Finishes:
- Bronze Anodized
- Silver Anodised
-
Available Sizes:
- 1000mm
- 1250mm
- 2250mm
- 3000mm
Approval/s:
-
Fire Flammability Index: Brush Strip flammability index 1 when tested to AS1530.2
- Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
-
Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
Raven RP5 Bottom Weather Strip Sweep Door Seal
A5C1250
Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:
- Global GreenTag - Platinum
- A Flexible EPDM weather strip sweep seal that fits to the bottom of doors
- Ideal for screen doors and sash windows to prevent insects from entering up the face of the glass.
- Quick and easy to install to the door bottom, being fitted without removing the door.
- Also ideal for garage tilt-up doors.
- Can be used in conjunction with Raven RP13 and RP82 threshold plates.
- Screws supplied
Specification:
- Fixing: Screw Fixed
- Min & Max Gap: 0mm to 15mm
- Material: Anodised aluminium with solid EPDM gasket
- Door/Frame Construction: Timber, Aluminium
- Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening, Security Screen, Bi-fold
- Garage Door Type: Tilt-up
- Window Type: Single Hung Sash, Double Hung Sash
- Location: Bottom of doors, sash windows or around stiles of tilt up doors
- Replacement Seals: RP303
- Finish: Silver Anodised
- Available Sizes: 1250mm
Approval/s:
- Fire Flammability Index: Brush Strip flammability index 1 when tested to AS1530.2
- Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
- Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
