Raven RP98 Threshold Ramp Silver Anodised - Available in Various sizes

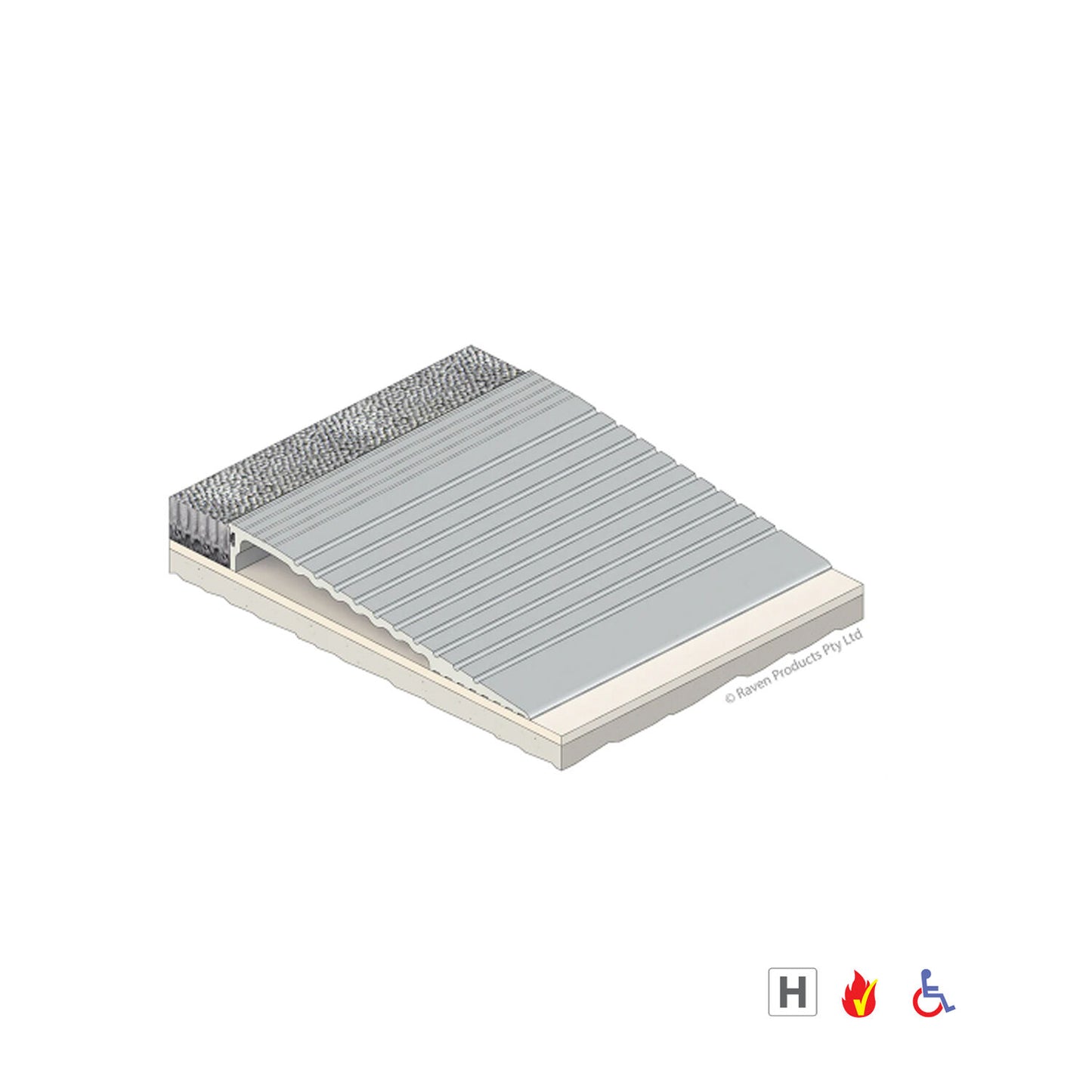

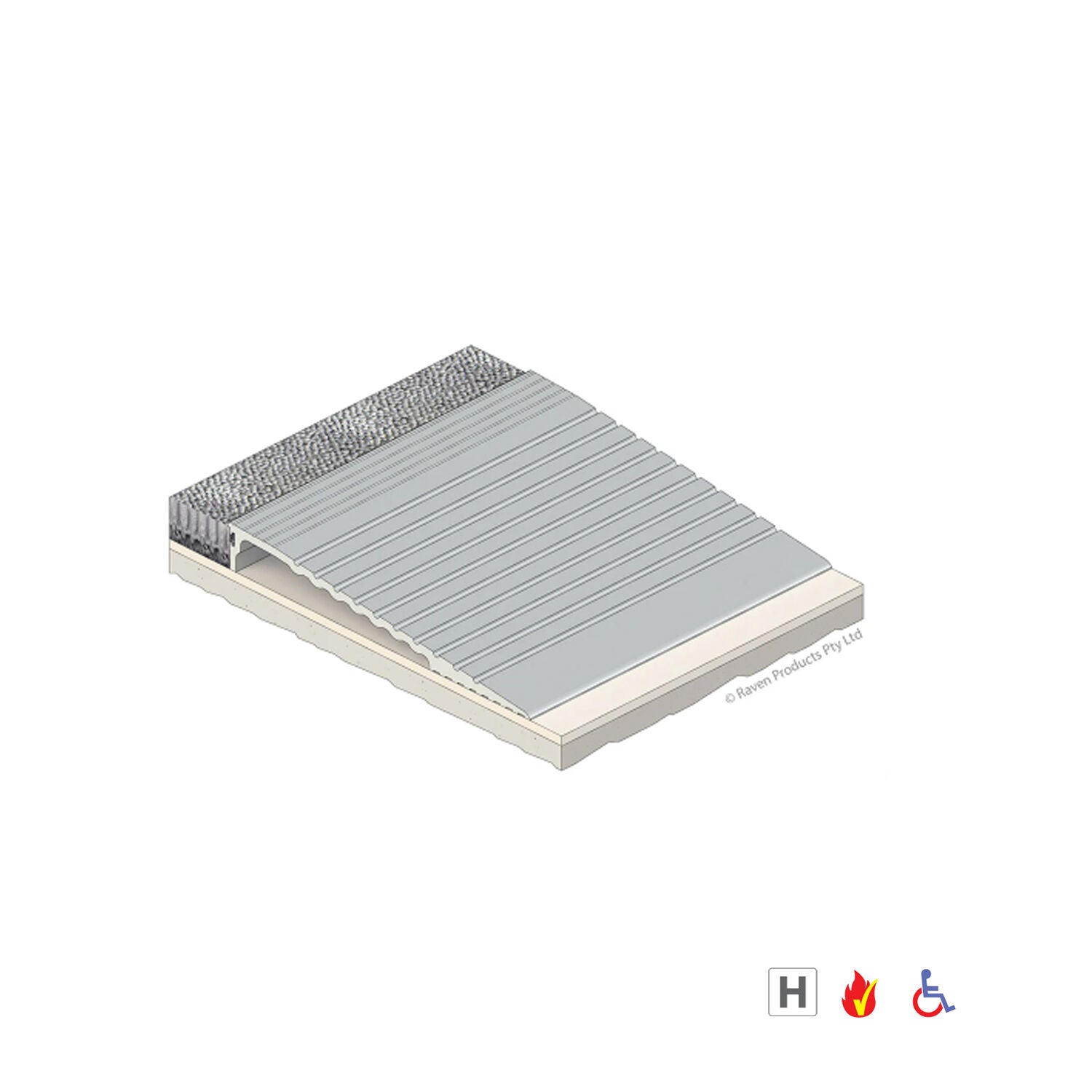

Raven RP98 Threshold Ramp

Threshold Ramp enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

Threshold Ramp Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

• Global GreenTag - Platinum
• Heavy duty threshold ramp
• With ribbed design which can be positioned back-to-back to form a two-way threshold ramp conforming to NCC D3D16 (b).
• Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration
• Suitable for use with most floor pivots.
• Ideal for commercial shop fronts providing a neat ramp detail between carpets or tiles at door ways.
• Can also be used to provide a ramped frame for internal door mats.

Specification:

• Fixing: Screw Fixed, Adhesive Fixed
• Material: Aluminium
• Location: Door sill
• Finish: Silver Anodised
• Available Sizes:

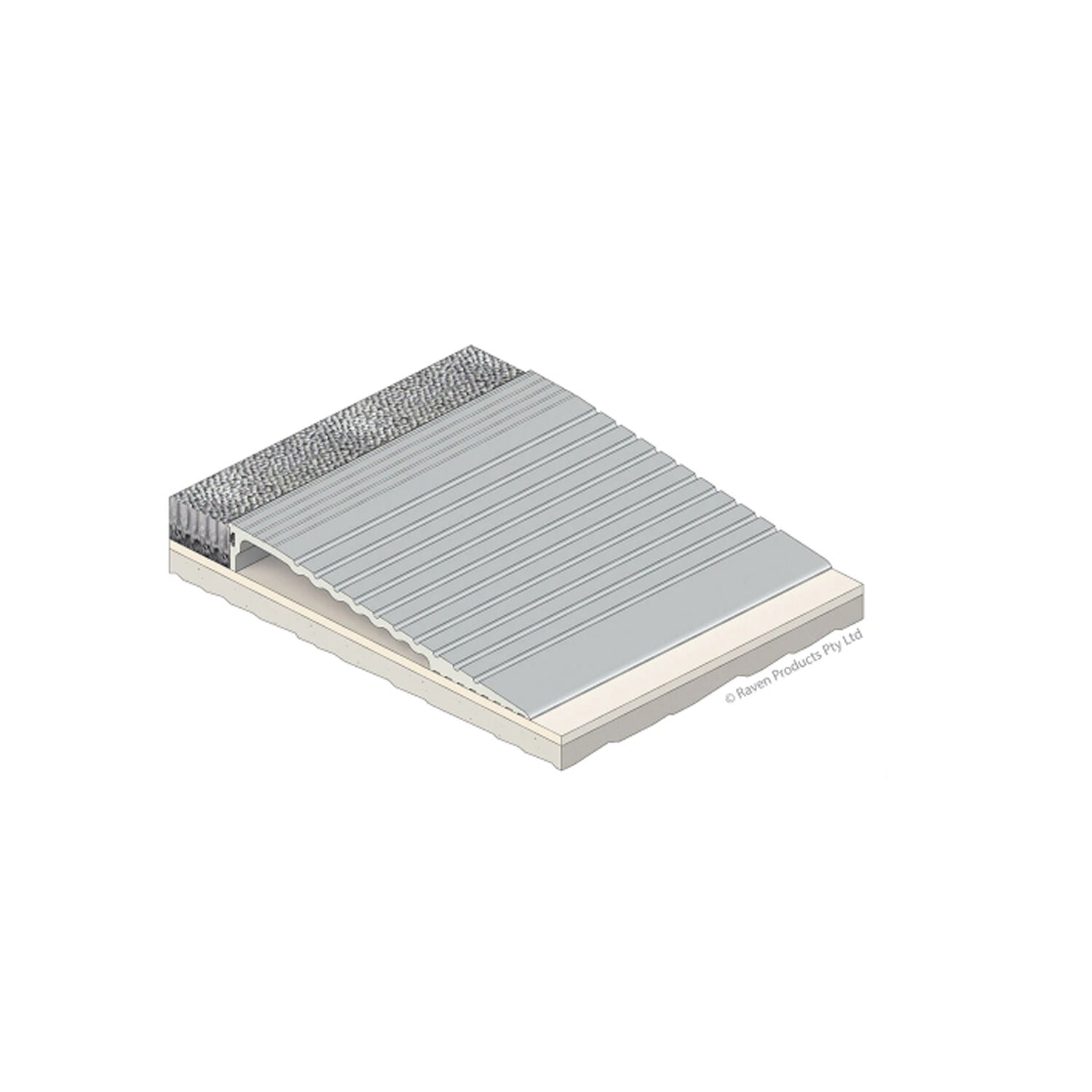

  • 1000mm
  • 1250mm
  • 2000mm

Approval/s:

• Access & Mobility AUS/NZ: NCC D3D16, NCC D4D4, AS1428.1:2009 Part 7.2. AS1428.1:2021 Part 4.2, NZBC D1/AS1 1.3.2
• Access & Mobility UK/EU: Approved Document M
• Accreditations: UL: R37913, ANSI/BHMA: A156.21
• Fire AUS/NZ: NCC S12C2, AS 1905.1, NZBC C/AS2 4.16.2(a) & App C6.1.1, AS 1530.4
• Fire UK/EU: Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
• Fire Rating: Up to FRL & FRR-/240/30
• BAL Statement: BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959

Note:

• When ordering, specify longer length than doorway to allow for neat installation around door frame.
