SKU: ASS110111070M
Trimec ES110 Electric Strike 12/24VDC Non Monitored Weather Resistant IP56 110111-070M
RRP: $247.71
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

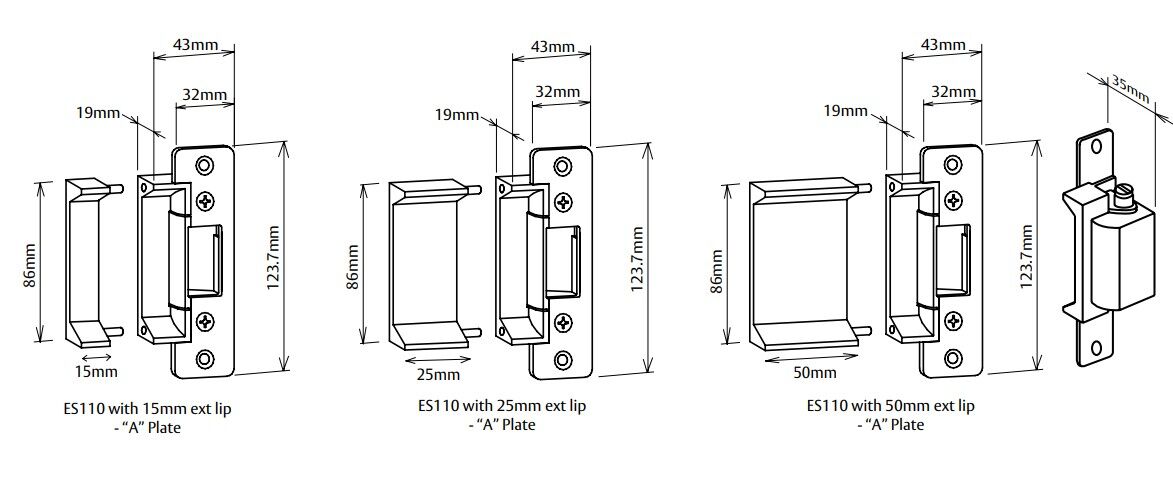

Trimec ES110 Electric Strike
110111-070M
Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.
Electric Strike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.
- Fail safe/fail secure changeable on site.
- The ES110 is a cost efficient robust electric strike with a solid construction of one-piece cast aluminium body and stainless steel striker.
- Having a deeper than normal strike-keeper area, ES110 is designed to work with an extensive range of locks and offers the same level of security and reliability usually provided by more expensive electric locking solutions.
Features:
- IP56 Weather resistant
- Fail safe/fail secure changeable on site
- Stainless steel striker for extra strength and durability
- Stainless steel locking pins
- Optional mounting kit
- Installation template
- Suitable For 18mm latch with a 3mm door gap
- TRICARE 5 Year Warranty
Applications:
- Exposed areas
- High traffic areas
- Open in/open out doors
- Suitable for use with all access control systems
Specifications:
- Current: 250 mA at 12 Vdc to 125 mA at 24 Vdc
- Drilled for Lip Extension: Yes
- Field Selectable Fail Safe/Fail Secure: Yes
- Holding Strength: 650 Kg
- IP Rating: IP56
- Working Voltage: 12 Vdc to 24 Vdc
- Locking Mode: Fail Secure/Fail Safe
Standards and Compliance:
- Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1 (Part 1: Fire resistant door sets)
- For any fire rated applications of this product, the fire certification should be investigated and examined to ensure the suitability & configuration of this product for that particular door assembly.
- Contact the supplier for further details, such as certifications, door type and door thickness etc. that may affect the fire door suitability and rating.
- Approved to UL1034 (highest level)
- CE approved (EMC, ROHS & REACH)
- Regulatory Compliance Mark (RCM) approved
- Weather Resistant (IP56)
