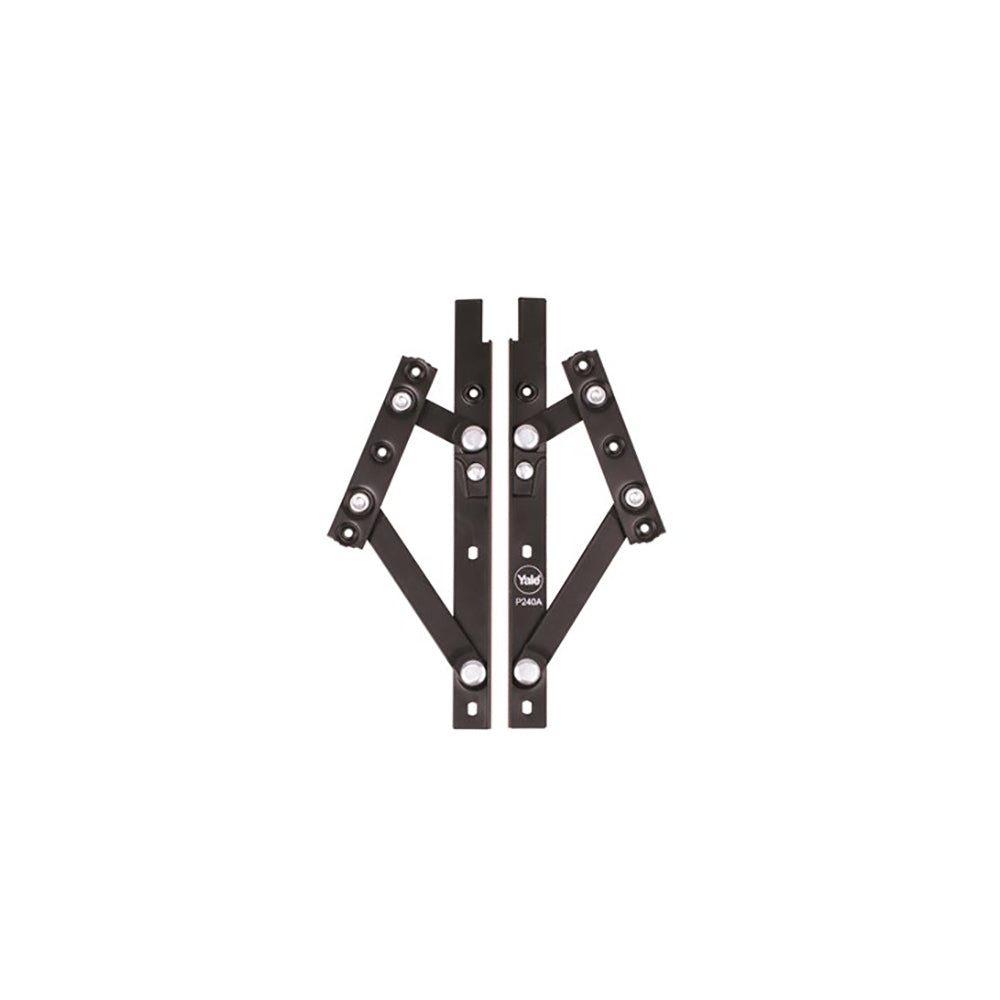

SKU: ASSP240A

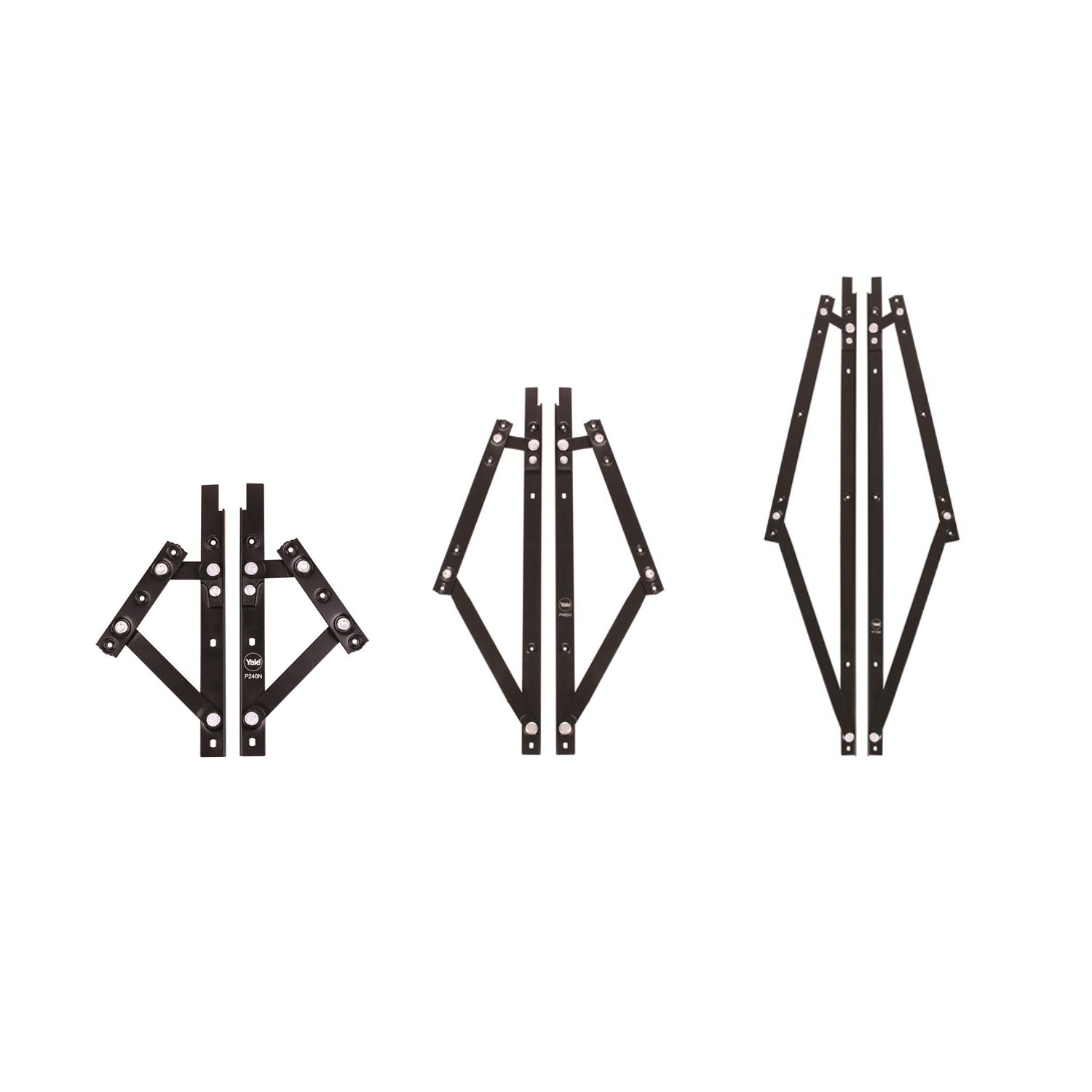

Yale Nexus HCA Windows Stays Black Powdercoat Finish
RRP: $36.68
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Yale Nexus HCA Windows Stays Black Powdercoat Finish
Developed in response to changing market requirements for larger window sashes in projected top hung (PTH) windows, the Nexus range can support window weights of up to 60kg and 2m in height, while still maintaining endurance performance and handle forces, making it the highest capacity aluminium residential window stay on the market.
Features:
- Supports window weights up to 60kg
- For installation into windows up to 2m high
- Patent pending for innovative integrated friction joint
- Geometry optimized for window range
- Manufactured with unique ‘pull-in’ feature
- Identification mark for High Friction versions
- For projected top hung windows
- Complies with requirements in NZ:4211
- Provides compression weather seal
- Made from extruded aluminium with no sliding channels
- Tested to 36,000 cycles
Specifications:
- Finish: Black Powedercoat
- Opening Angle: 34, 28, 20, and 17 Degrees
-
Max Sash Weight:
- 10 Kg
- 18 Kg
- 30 Kg
- 45 Kg
- 60 Kg
-
Friction Model:
- Standard
- Non Friction
- High Friction
-
Sash Height:
- 300mm-600mm
- 700mm-1000mm
- 1100mm-1500mm
- 1600mm-2000mm
Yale Nexus HCA Stay Pair Standard Friction Max Sash Height 600mm Black
P240A
PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)
This is a non-stocked item which leaves the warehouse in 4 business days after payment is made.
Developed in response to changing market requirements for larger window sashes in projected top hung (PTH) windows, the Nexus range can support window weights of up to 60kg and 2m in height, while still maintaining endurance performance and handle forces, making it the highest capacity aluminium residential window stay on the market.
Features:
- Supports window weights up to 60kg
- For installation into windows up to 2m high
- Patent pending for innovative integrated friction joint
- Geometry optimized for window range
- Manufactured with unique ‘pull-in’ feature
- Identification mark for High Friction versions
- For projected top hung windows
- Complies with requirements in NZ:4211
- Provides compression weather seal
- Made from extruded aluminium with no sliding channels
- Tested to 36,000 cycles
Specifications:
- Sash Height: 300-600mm
- Opening Angle: 34 Degrees
- Max Sash Weight: 10Kg
- Finish: Black Powedercoat
- Friction Model: Standard Friction
