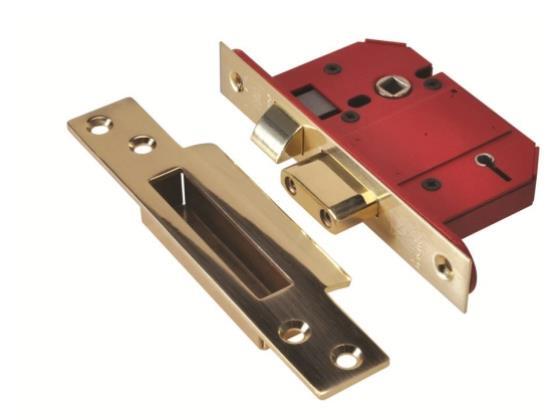

Union StrongBOLT Mortice Locks 5 Lever + 45 or 57mm PB or SC J2200

StrongBOLT
2200
BS 5 Lever Sashlock

Application:

• For timber doors hinged on the left or right
• Suitable for doors up to 54mm thick

Features:

• Chamfered bolt design increases the performance of the lock under side load testing. The chamfer of the bolt also makes drilling attack more difficult Anti­pick, anti­saw and anti drill security features for resistance against attack
• Radius inner forend for ease of installation
• Can be installed in the many UK mortices without the need for additional carpentry or spoiling the edge of the door
• Anti­pick and keyhole protection prevents forced entry by picking
• Hardened steel pins provide resistance to attack from sawing
• Deadbolt locked or unlocked by the key from either side
• 20mm deadbolt for secure positive deadlocking and additional resistance against attack
• 2200S can be keyed alike with 2100S

Specifications:

• Case Sizes:
  • 68mm (2.5")
  • 81mm (3")
• Backsets:
  • 45mm
  • 57mm
• Case: Steel, red powder coat
• Forend: Stainless steel or brass
• Striking Plate: Finished to match forend
• Faceplate: Supplied with square faceplate which covers na radius inner forend
• Deadbolt: Zinc with hardened steel rollers
• Latch Bolt: Zinc
• Follower: Sintered Steel
• Rebate Kit: 2200REB 13mm (0.5")
• Keying Groups: May be supplied to pass or differ.
• Supplied with 2 steel nickel plated keys
• Key Blank Number: JKB SBOLT
• Available Finish:
  • Polished Brass
  • Satin Chrome
