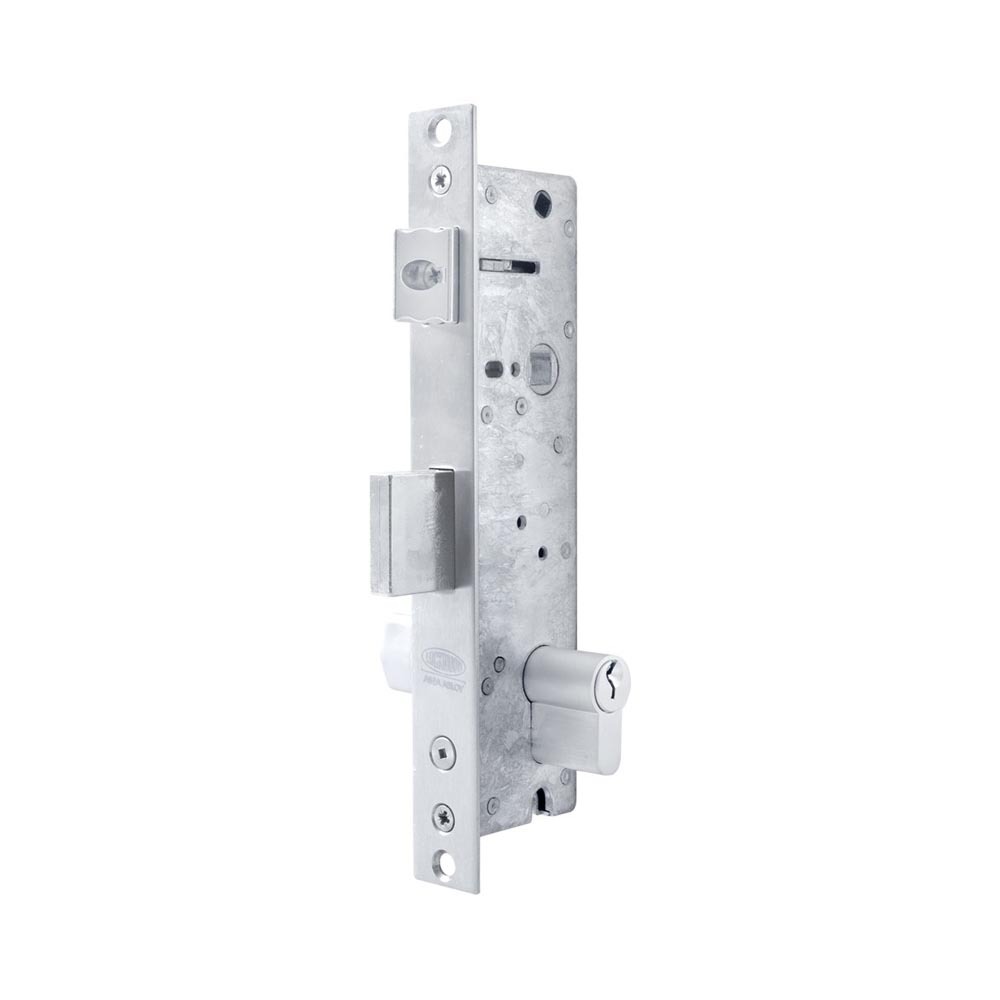

Lockwood Induro Mortice Lock
LW7130L

Please Note: Cylinder and Strike Plate not included.

Mortice Lock provides more security on exterior doors that have windows. (e.g. When intruders attempt to break into a building through a window, the key lock on the inside of the door will stop them from entering)

Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted

Features:

  • The Lockwood Induro hinged door multi-point mortice locks less cylinder.
  • 2 point locking
  • Supplied with 2 mm latch packer
  • Designed for use in residential aluminium hinged or bi-fold doors
  • Latch deadlocked with key
  • The bolt is now selectable between default setting long throw (24 mm) and short throw (13 mm) with a simple selector feature to switch between settings
  • Palladium (Xtra) Snib furniture is required in order to use the snib-lock function
  • Passage mode gives convenient access from inside and outside without the need for a key
  • Safety mode is activated and deactivated by operating the snib lever from inside and requires the key to unlock from outside.
  • Handles locked securely from both inside and outside and requires key to unlock from either side
  • Accepts fixed cam euro cylinder (not supplied).
  • Accepts 7.6 mm or 8 mm spindle
  • Achieves Australian Standards AS 4145.2-2008 Security Level S7 and Durability Level D7

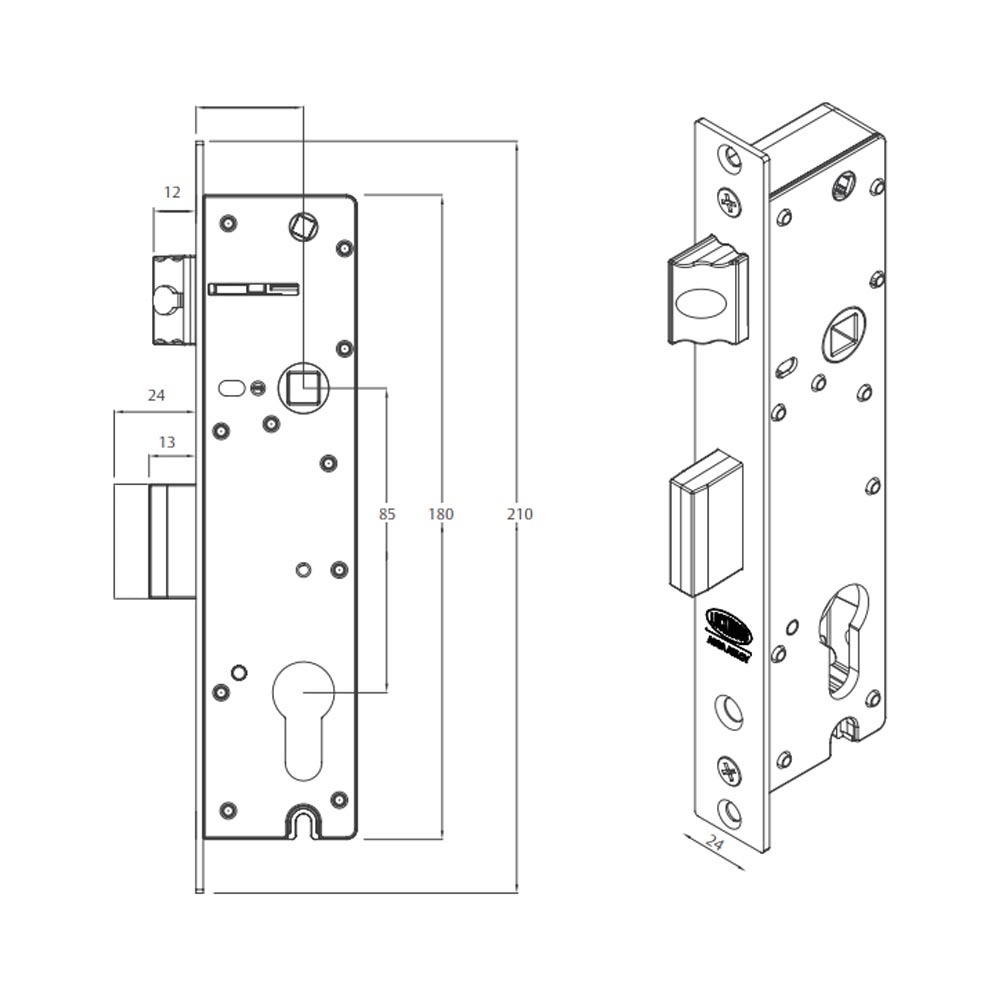

Specifications:

  • Backset: 30mm
  • Latch Bolt Size: 12mm
  • Bolt Throw Size: 24mm (selectable down to 13 mm)
  • Door Thickness: 32mm to 45mm
  • Face Plate Size: 210mm x 24mm
  • Case Size: 180mm x 45mm
  • Finish: Brushed Stainless Steel
SKU ASSLW7130L
Barcode # 019348313049707
Brand Lockwood
