Lockwood Induro Mortice Lock 30mm Adj Throw Stainless Steel LW7130L *No Strike*
RRP: $118.87
Payments accepted:
Couldn't load pickup availability

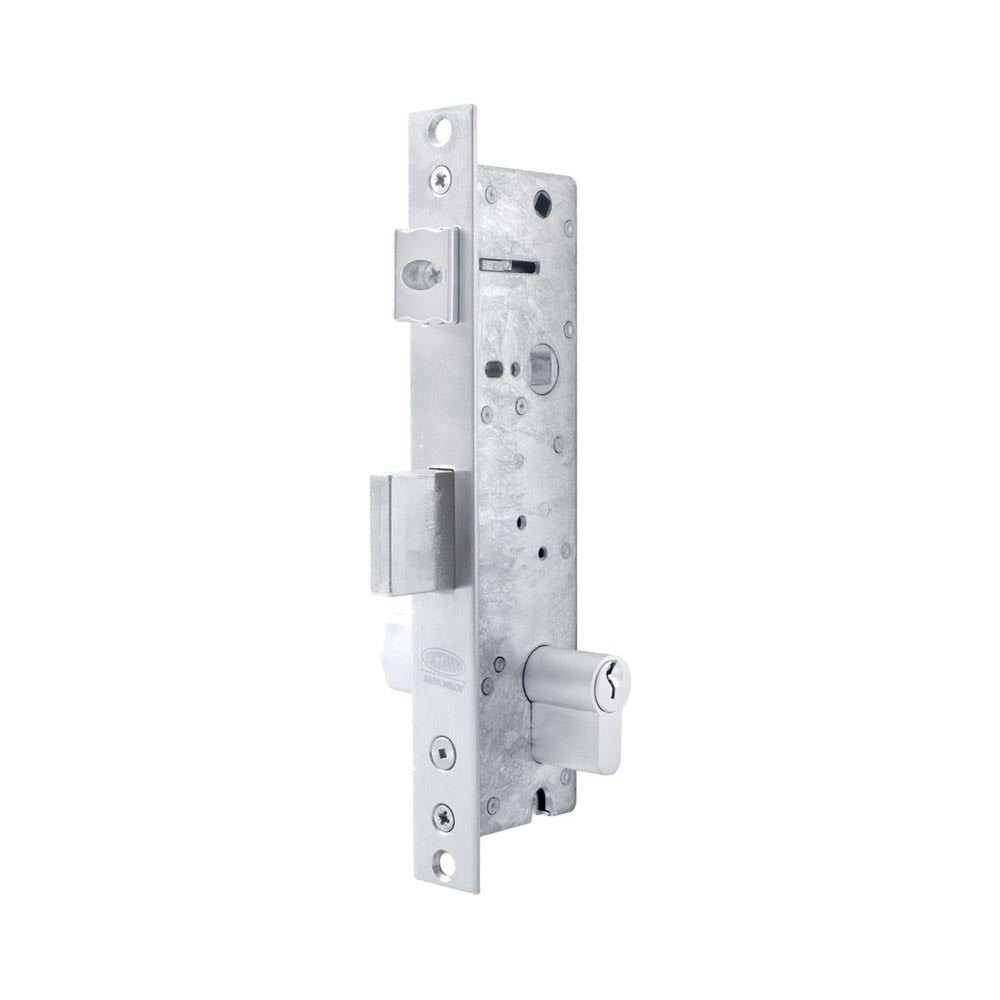

Lockwood Induro Mortice Lock
LW7130L
Please Note: Cylinder and Strike Plate not included.
Mortice Lock provides more security on exterior doors that have windows. (e.g. When intruders attempt to break into a building through a window, the key lock on the inside of the door will stop them from entering)
Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted
Features:
- The Lockwood Induro hinged door multi-point mortice locks less cylinder.
- 2 point locking
- Supplied with 2 mm latch packer
- Designed for use in residential aluminium hinged or bi-fold doors
- Latch deadlocked with key
- The bolt is now selectable between default setting long throw (24 mm) and short throw (13 mm) with a simple selector feature to switch between settings
- Palladium (Xtra) Snib furniture is required in order to use the snib-lock function
- Passage mode gives convenient access from inside and outside without the need for a key
- Safety mode is activated and deactivated by operating the snib lever from inside and requires the key to unlock from outside.
- Handles locked securely from both inside and outside and requires key to unlock from either side
- Accepts fixed cam euro cylinder (not supplied).
- Accepts 7.6 mm or 8 mm spindle
- Achieves Australian Standards AS 4145.2-2008 Security Level S7 and Durability Level D7

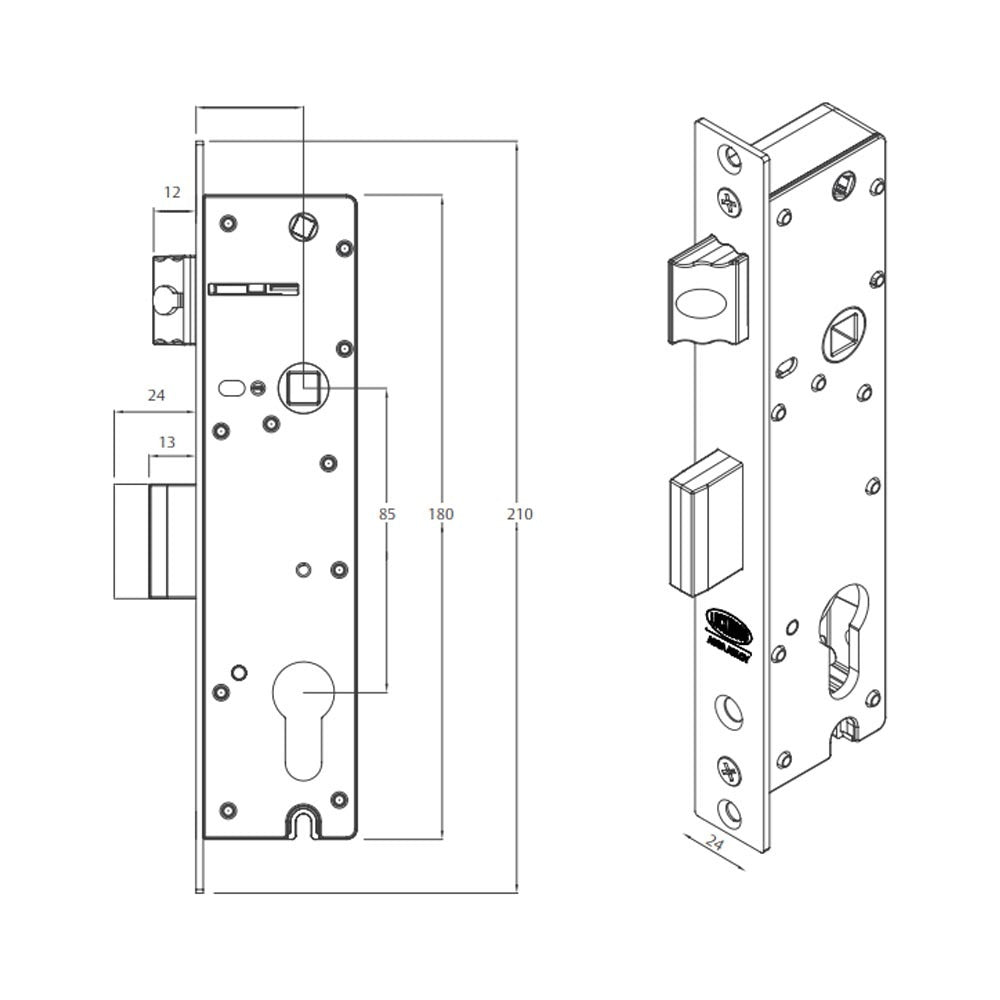

Specifications:
- Backset: 30mm
- Latch Bolt Size: 12mm
- Bolt Throw Size: 24mm (selectable down to 13 mm)
- Door Thickness: 32mm to 45mm
- Face Plate Size: 210mm x 24mm
- Case Size: 180mm x 45mm
- Finish: Brushed Stainless Steel
