**10 Pack** McCallum A101 A102LHF Door Hinge Aluminium Lift Off Left Hand
RRP: $113.40
Regular price
$102.06
Regular price
Sale price
$102.06
Unit price
/
per
Available:
Online: In Stock
LEAVES WAREHOUSE IN 3-5 BUSINESS DAYS
Instore: No Stock
- Please place order instore
*Handling Times May Apply
Express Shipping*
This product qualifies for express shipping
*Enter your postcode for available options*
Payments accepted:
Couldn't load pickup availability
**10 Pack** McCallum A101 A102LHF Door Hinge Aluminium Lift Off Left Hand
$102.06
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

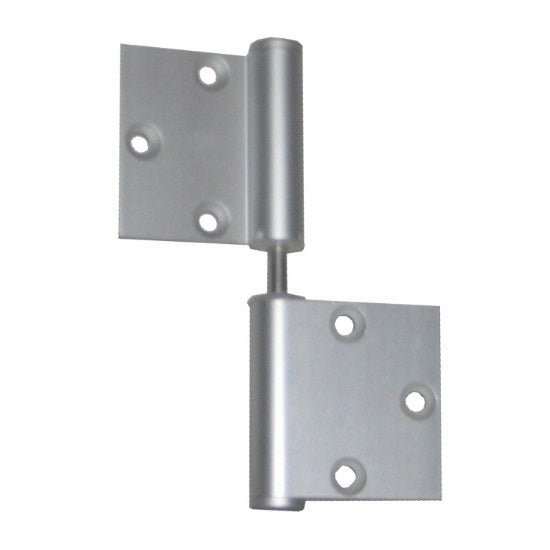

McCallum Aluminium Lift Off Left Hand Hinge
A101
- 10x Hinges w/ screws
Application:
- Lift-off facility for aluminium and timber doors.

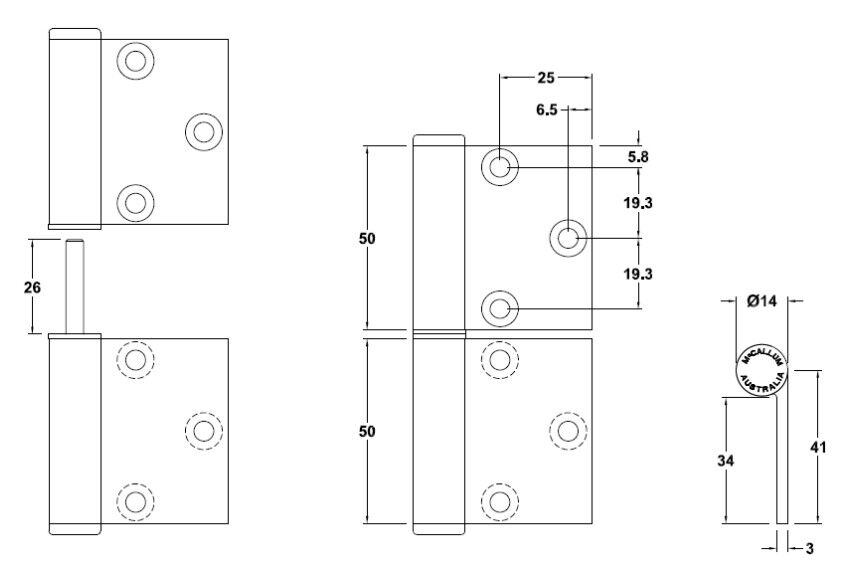

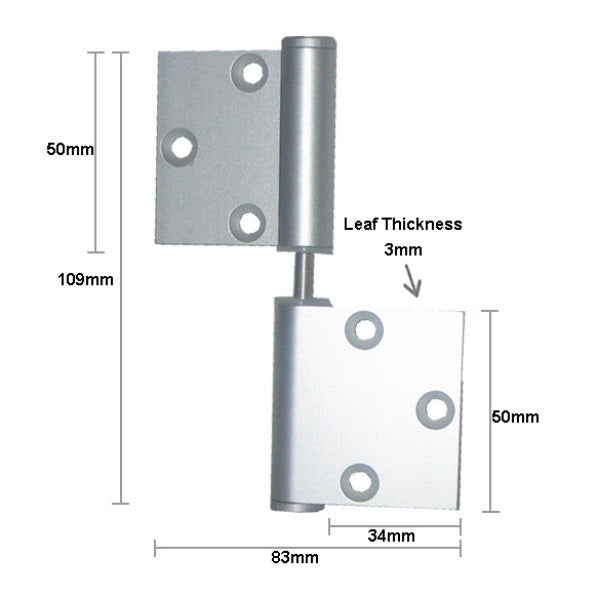

Specifications:
- Alloy: High strength T.6 minimum tensile 254 mpa.
- Pin Dia: 4.7mm stainless steel with machined chamfer both ends.
- Bushes: Flanged nylon.
- Knuckle: Round.
- Aluminium Endcaps: Pressed-in interference fit.
- Pressed in lower endcap with sliding fit for pin.
- Pin Length: 25mm.
Installation Guide Only:
- HANDING IS DETERMINED AS BELOW
- RIGHT HAND is with the door coming toward you, and the hinges are on the right.
- LEFT HAND is with the door coming toward you, and the hinges are on the Left.
- Door thickness : Minimum 35mm.
- When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage a fourth hinge may be required.
- Standard Door : 2040 high x 820 wide X 25 kg – 3 hinges.
- For lift-off clearance, we recommend a 40mm gap, minimum at the top of the door.
Fixing
- Fastening screws supplied.
- Pop rivets are not recommended.
