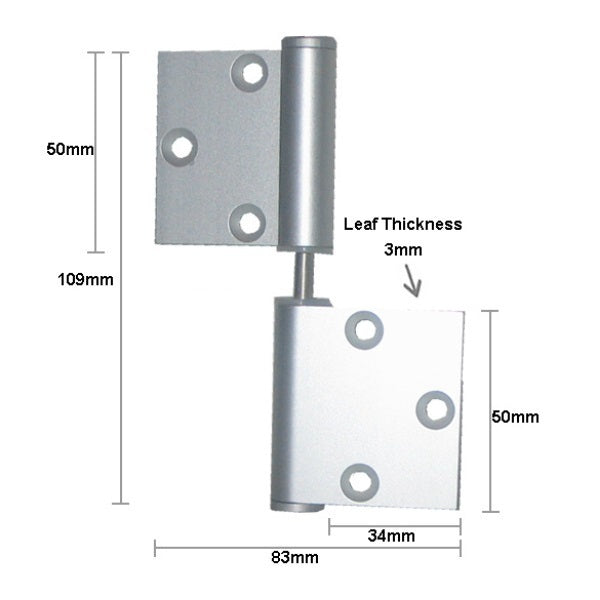

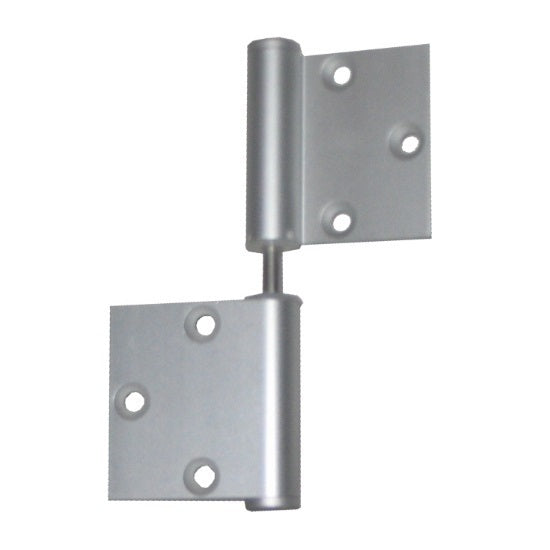

McCallum Aluminium Lift Off Right Hand Hinge
A102

  • 10 x Hinge w/ screws

Application:

  • Lift-off facility for aluminium and timber doors.

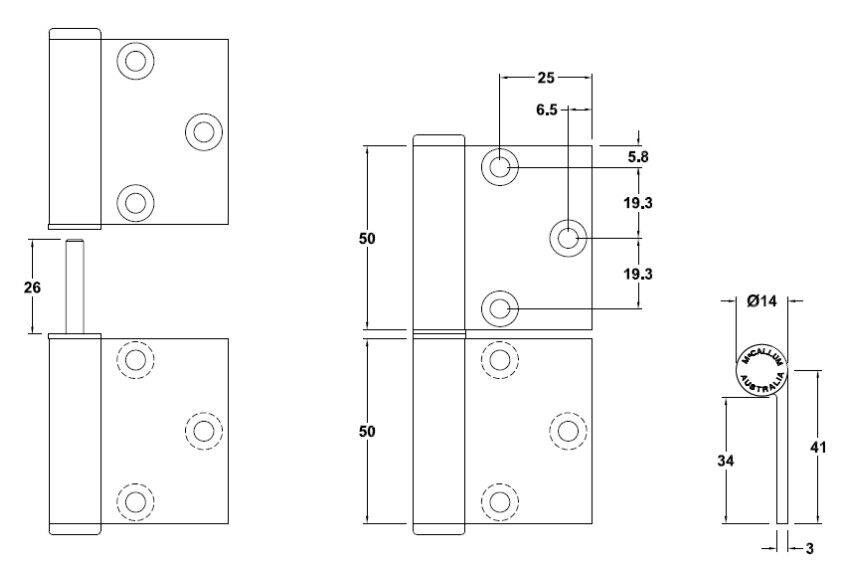

Specifications:

  • Alloy: High strength T.6 minimum tensile 254 mpa
  • Pin Dia: 4.7mm stainless steel with machined chamfer both ends
  • Bushes: Flanged nylon
  • Knuckle: Round
  • Aluminium Endcaps: Pressed-in interference fit
  • Pressed in lower endcap with sliding fit for pin
  • Pin Length: 25mm

Installation Guide Only:

  • HANDING IS DETERMINED AS BELOW
  • RIGHT HAND is with the door coming toward you, and the hinges are on the right
  • LEFT HAND is with the door coming toward you, and the hinges are on the Left
  • Door thickness : Minimum 35mm
  • When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible
  • For excessive usage a fourth hinge may be required
  • Standard Door : 2040 high x 820 wide X 25 kg 3 hinges
  • For lift-off clearance, we recommend a 40mm gap, minimum at the top of the door

Fixing

  • Fastening screws supplied
  • Pop rivets are not recommended
