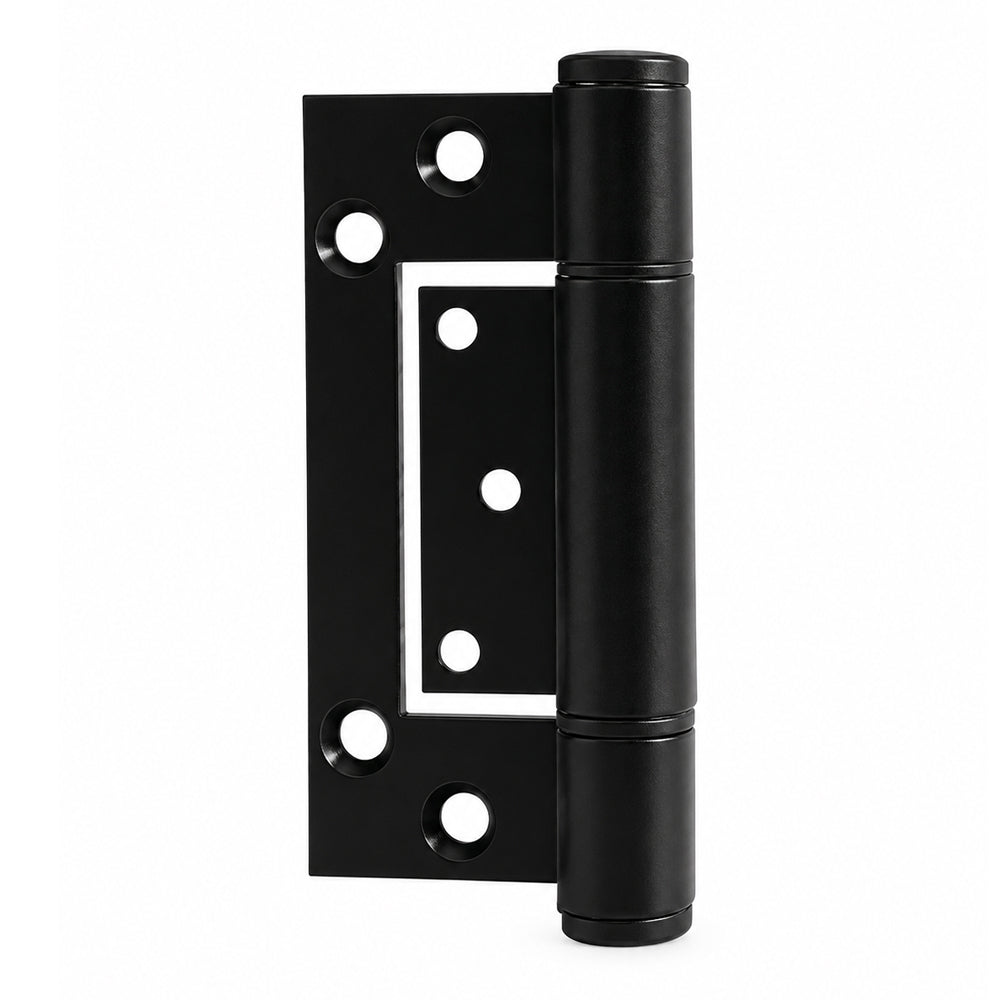

**10 Pack** McCallum Aluminium Offset Interfold Hinge A117 A107RF

10 Pack McCallum Aluminium Offset Interfold Hinge A107RF
A117

• 10 x Hinge w/ screws

Application:

• Suitable for aluminium doors in high usage situations.
• Suitable for some timber door applications.
• Offset Knuckle

Specification:

• Alloy: High strength T.6 minimum tensile 254 mpa.
• Pin Dia: 6mm 304 Stainless Steel with machined chamfer both ends
• Bushes: Flanged nylon.
• Knuckle: Squareline - Heavy Duty
• Aluminum Endcaps: Pressed-in interference fit
• Maximum Weight Capacity: 50kg
• FOR HEAVIER DOORS, SEE THE LARGER VERSION, A107. IT IS 130MM LONG AND HAS A WEIGHT CAPACITY OF 80KG.

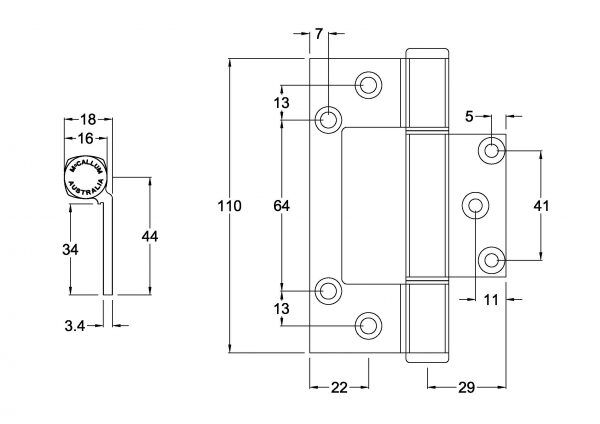

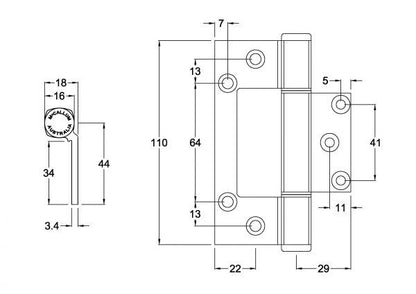

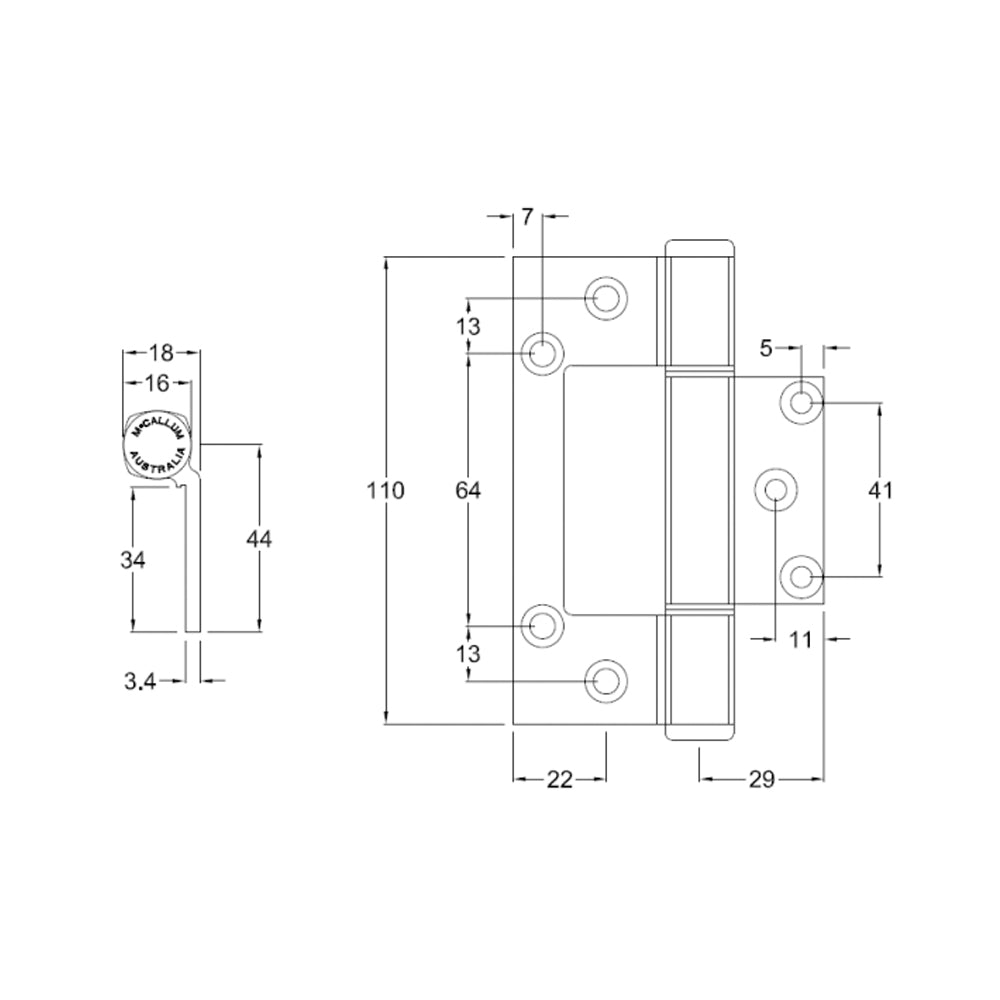

• Dimensions: 110mm x 34mm

Installation Guide Only:

• Door Thickness: Minimum 34mm
• When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required.
• Standard Door: 2040 (Height) x 820 (Width)
• Locator allows for fast fixing

Fixing:

• Fastening Screws supplied
• Pop rivets are not recommended.

Finish:

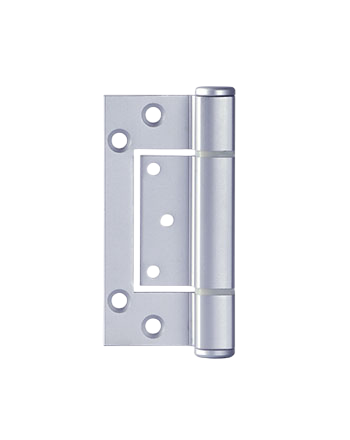

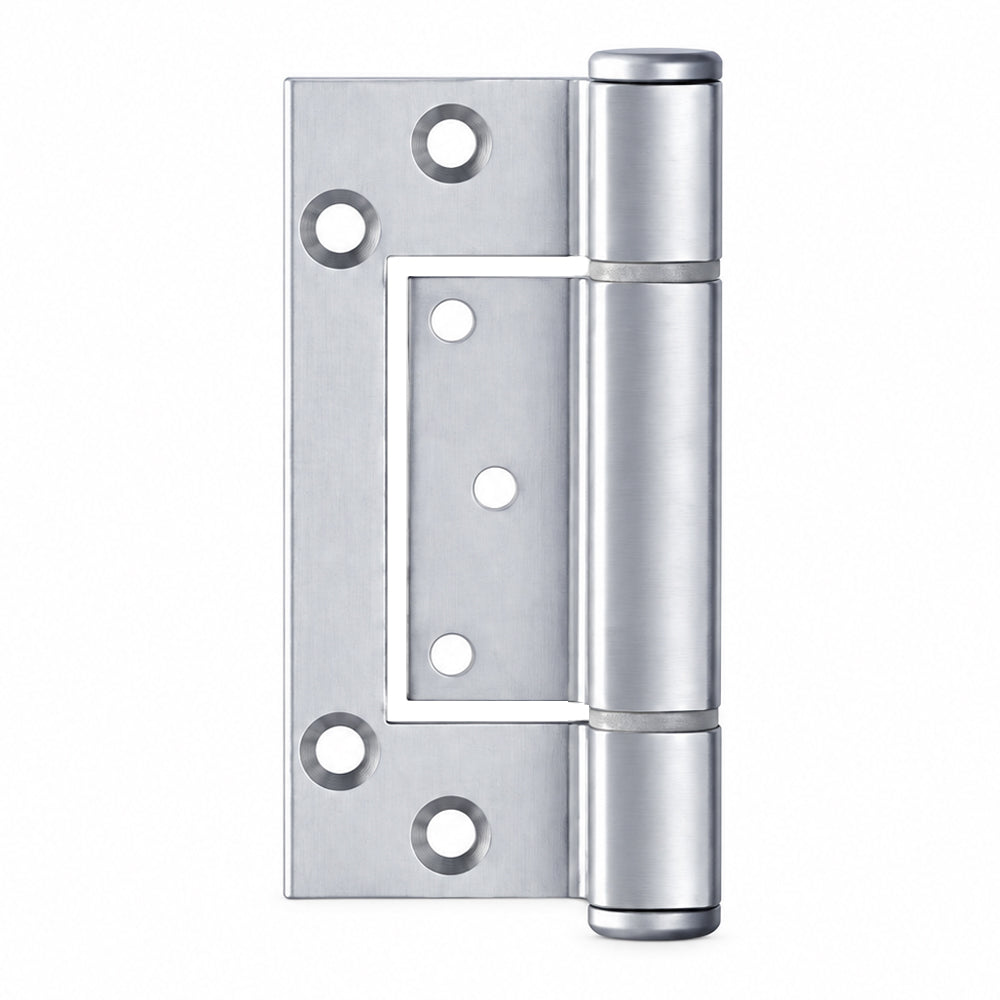

• SNA - Satin Natural Anodised

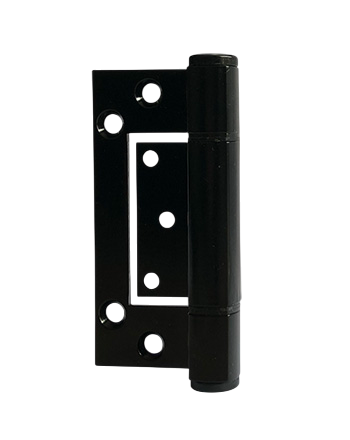

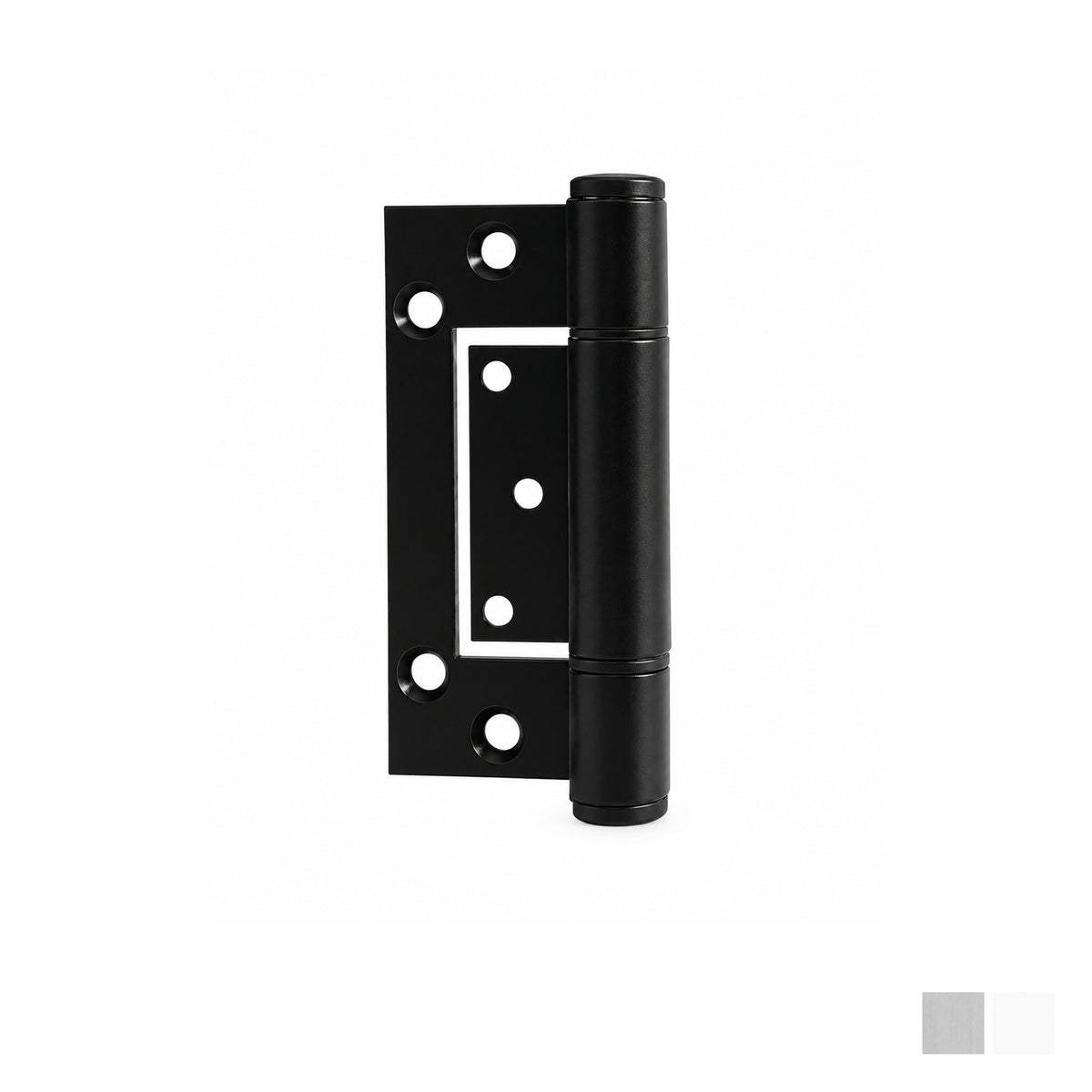

• Black - Black Powder Coat

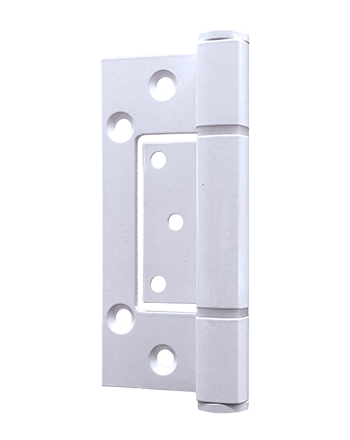

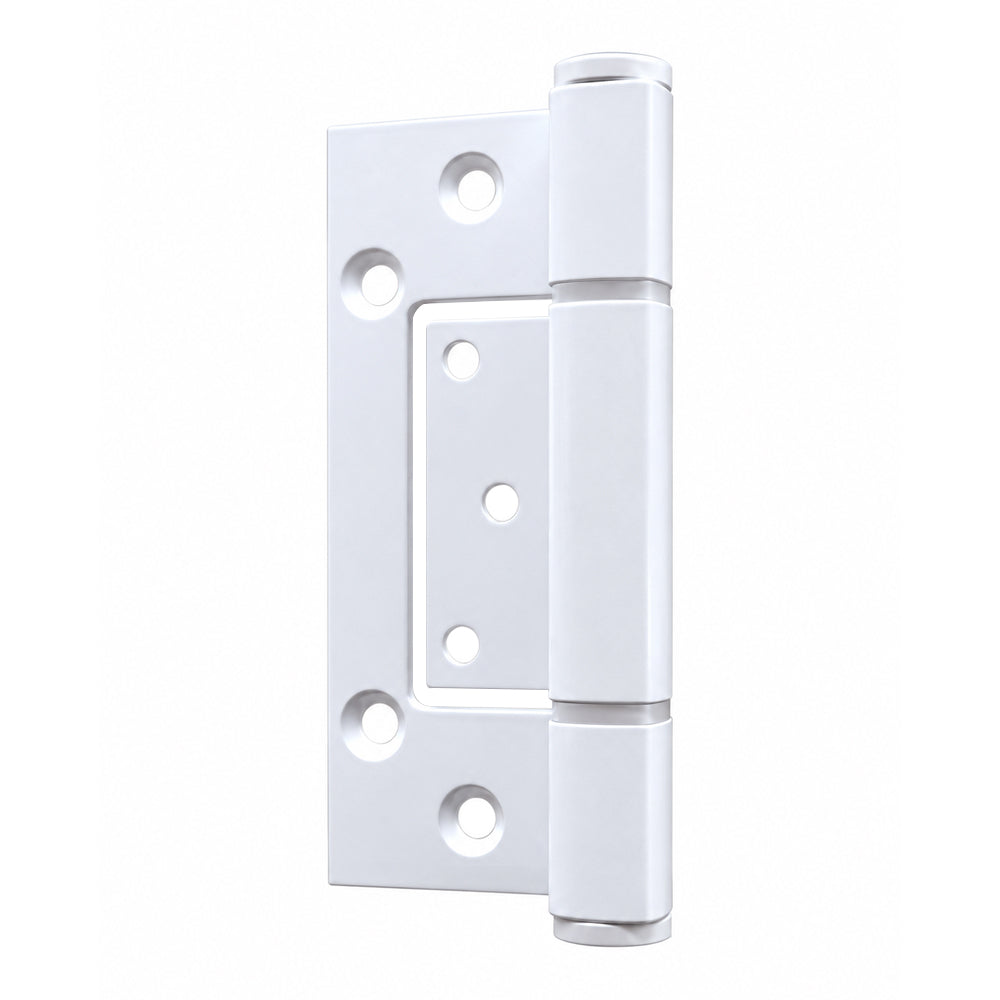

• White - White Powder Coat
