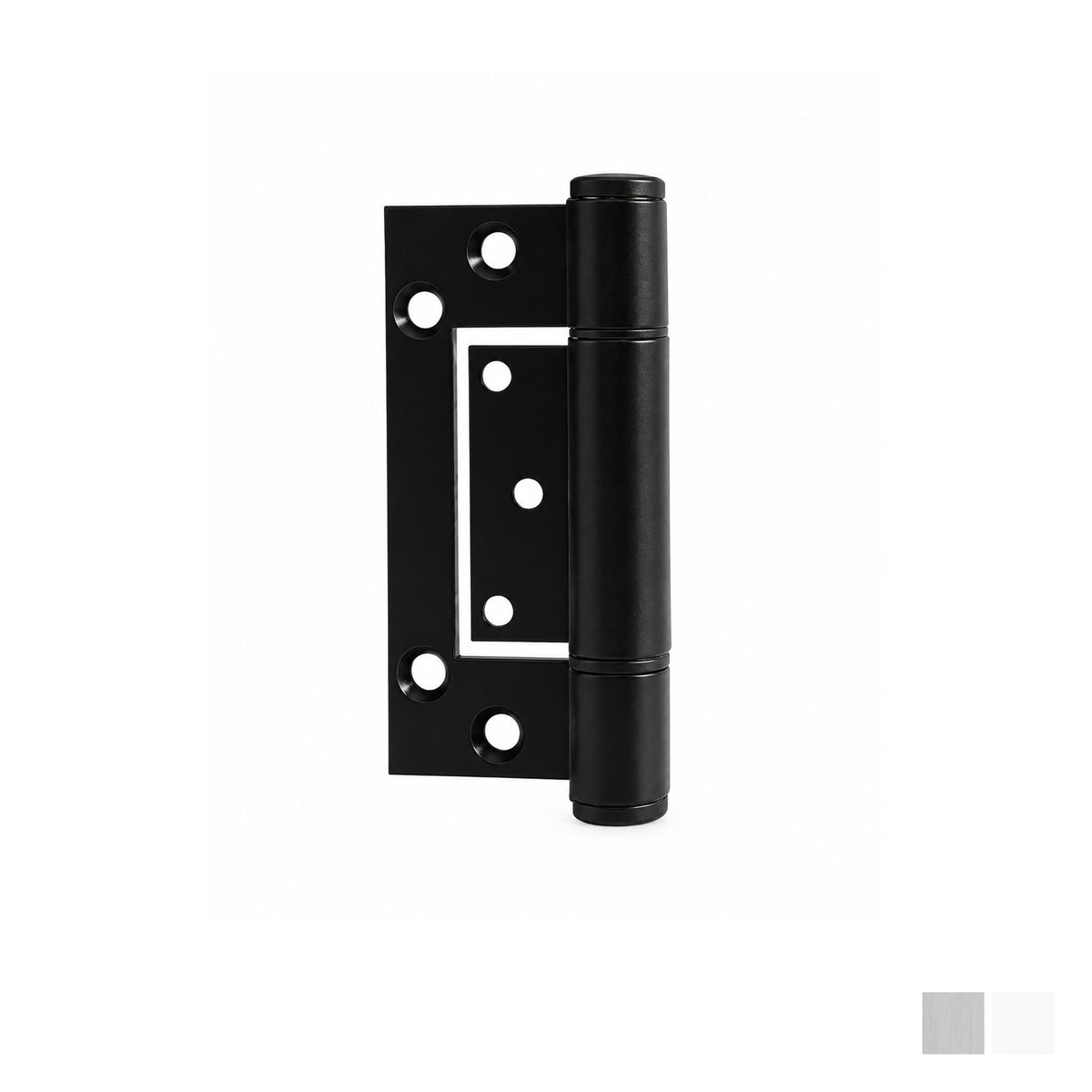

McCallum Aluminum Interfold Hinge Offset Knuckle 110mm - Available in Various Finishes

McCallum A117 Aluminum Interfold Hinge Offset Knuckle

Interfold Hinge commonly used on heavy aluminium and selected timber doors installed within aluminum frames.

Interfold Hinge Function - supports the door and enables smooth pivoting while its offset design provides the required clearance between the door and frame.

Features:

• Heavy-duty offset interfold design
• High-strength T6 aluminium construction
• Squareline offset knuckle
• 304-grade stainless-steel hinge pin
• Flanged nylon bushes for smooth operation
• Integrated hinge-positioning locator
• Supplied with fastening screws

Specifications:

• Length: 110mm

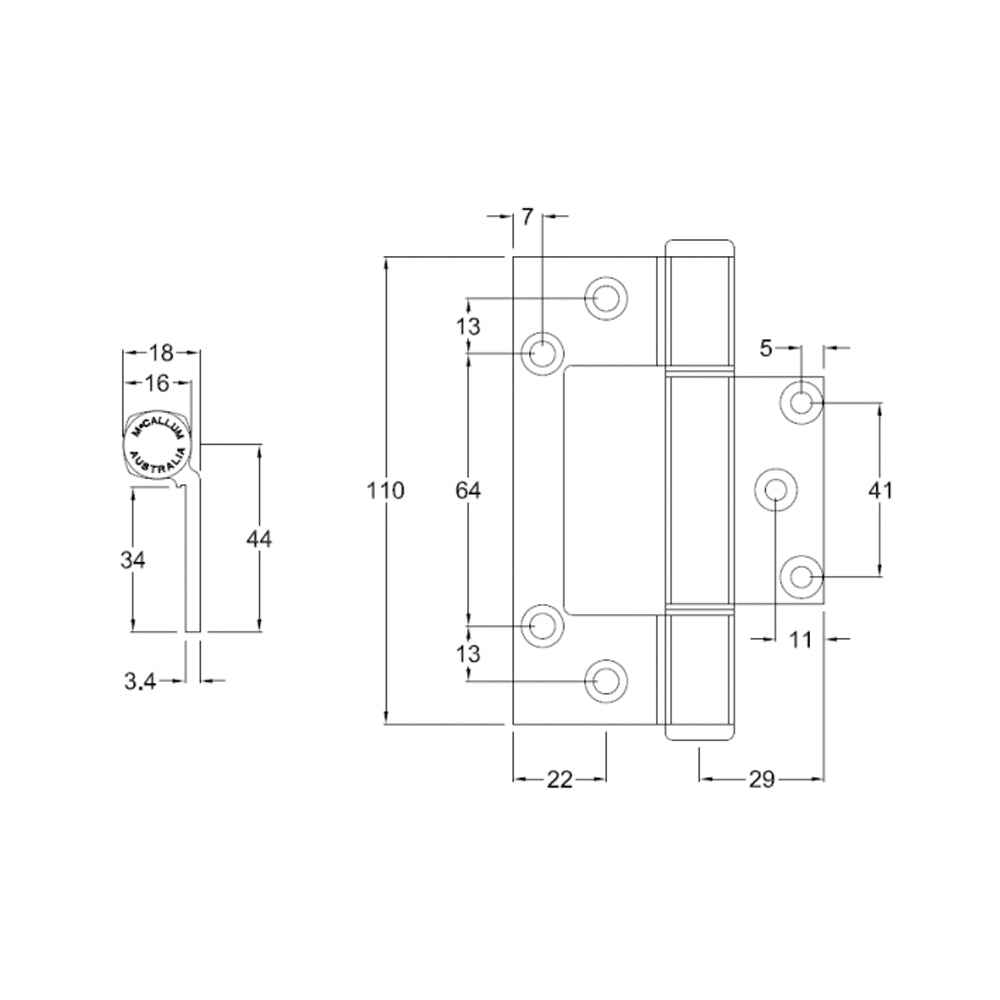

• Dimension: 110mm x 39mm x 3.4mm
• Material: T6 aluminum alloy
• Minimum Tensile Strength: 254MPa
• Hinge Pin: 6mm-diameter 304 stainless steel
• Knuckle: Heavy-duty squareline offset
• Minimum Door Thickness: 35mm
• Maximum Capacity: 50kg using three hinges
• Recommended Door Size: Up to 2040 × 820mm
• Application: Aluminum and selected timber doors in aluminum frames
• Available Finish:

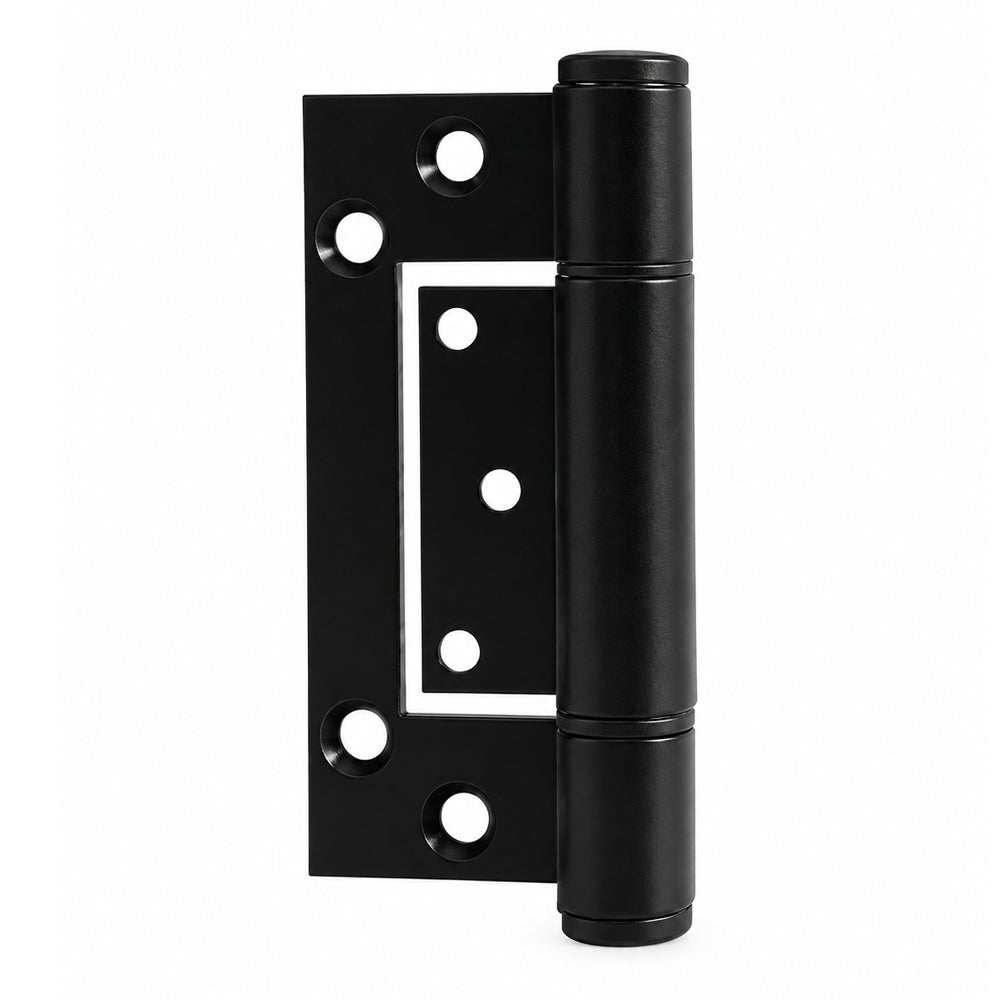

  • Black Powdercoat
  • Satin Natural Anodised

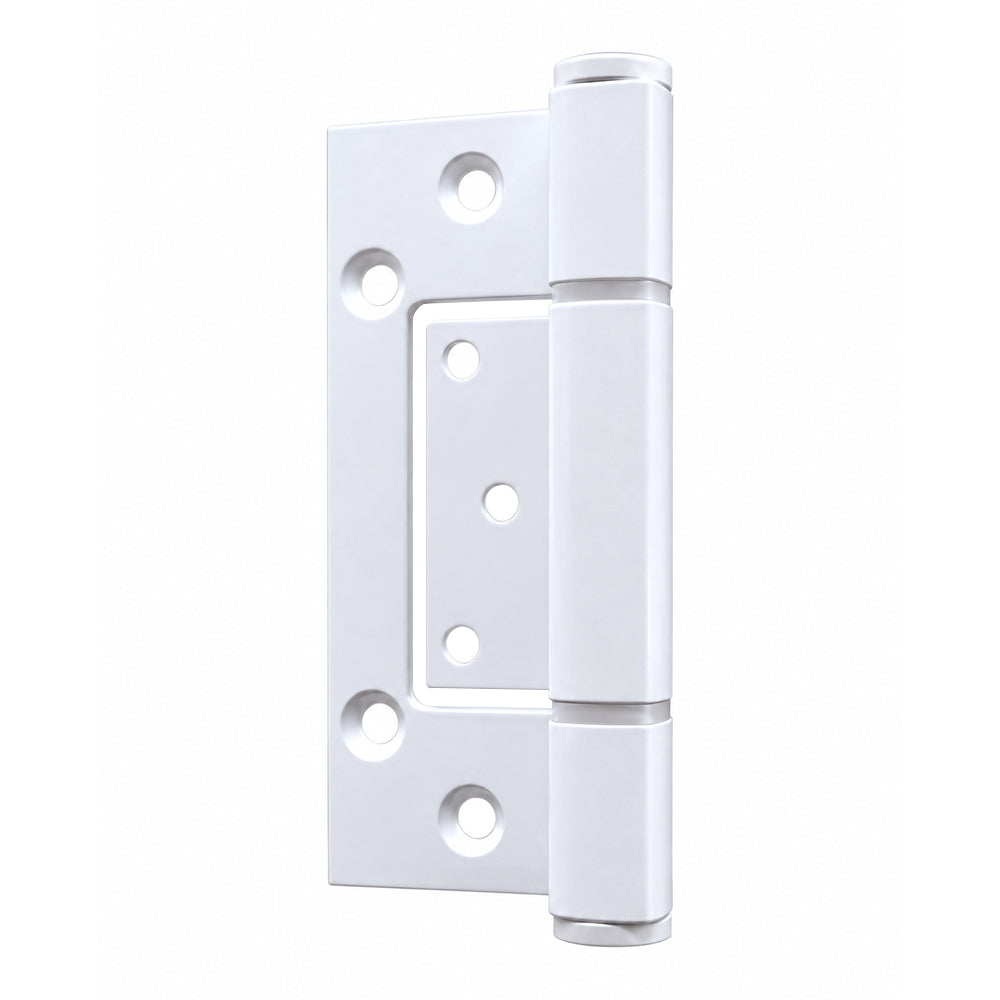

  • White Powdercoat
