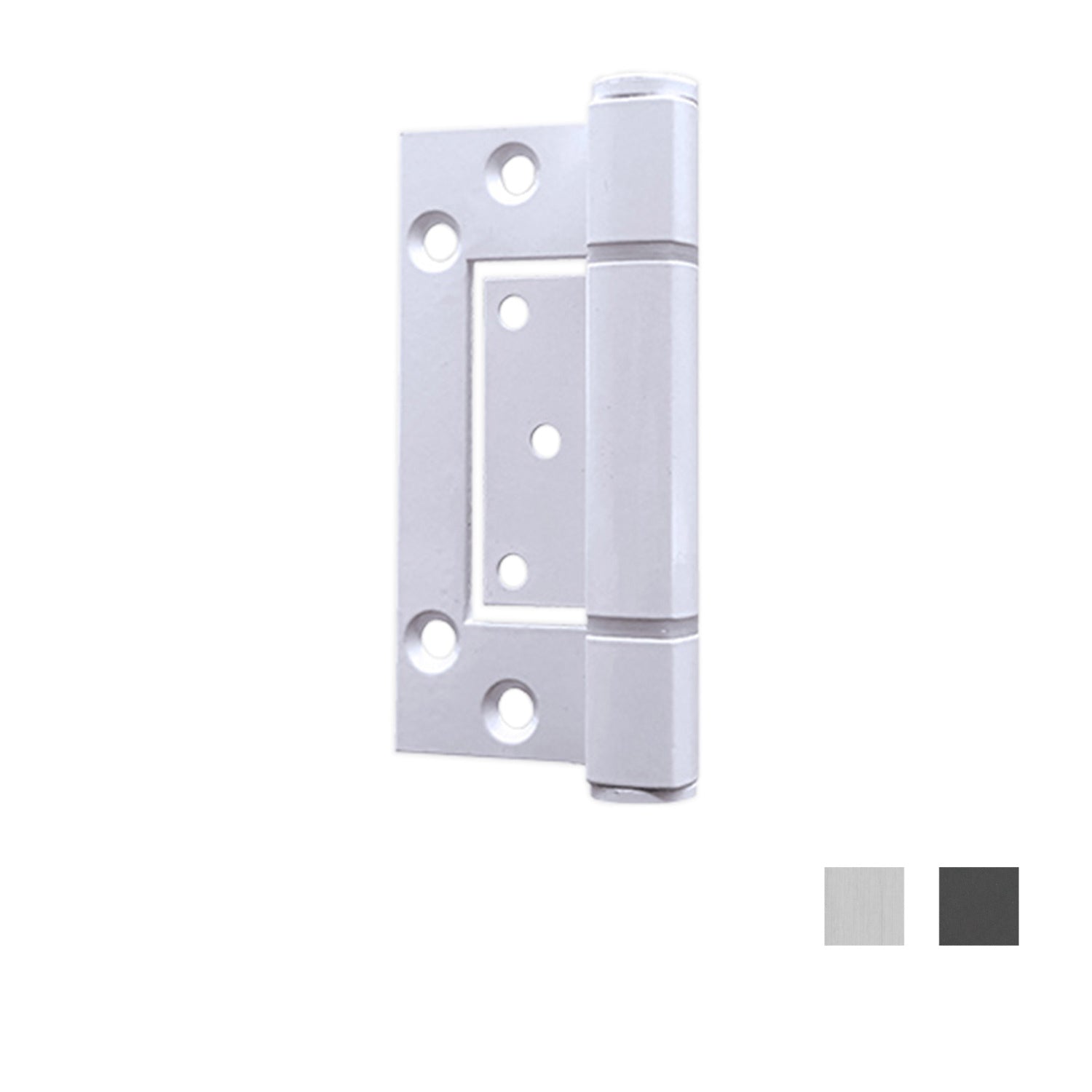

**10 Pack** McCallum Aluminium Offset Interfold Hinge A127 A107SHF

10 Pack McCallum Aluminium Offset Interfold Hinge AA107SHF
A127

• 10 x Hinge w/ screws

Application:

• Aluminium doors in high usage situations
• Suitable for some timber door applications
• Pre-drilling of the holes in the timber may be required.

Specification:

• Alloy: High strength T.6 minimum tensile 254 mpa.
• Pin Dia: 6mm 304 Stainless Steel with machined chamfer both ends
• Bushes: Flanged nylon.
• Knuckle: Squareline - Heavy Duty
• Aluminum Endcaps: Pressed-in interference fit
• Maximum Weight Capacity: 40kg

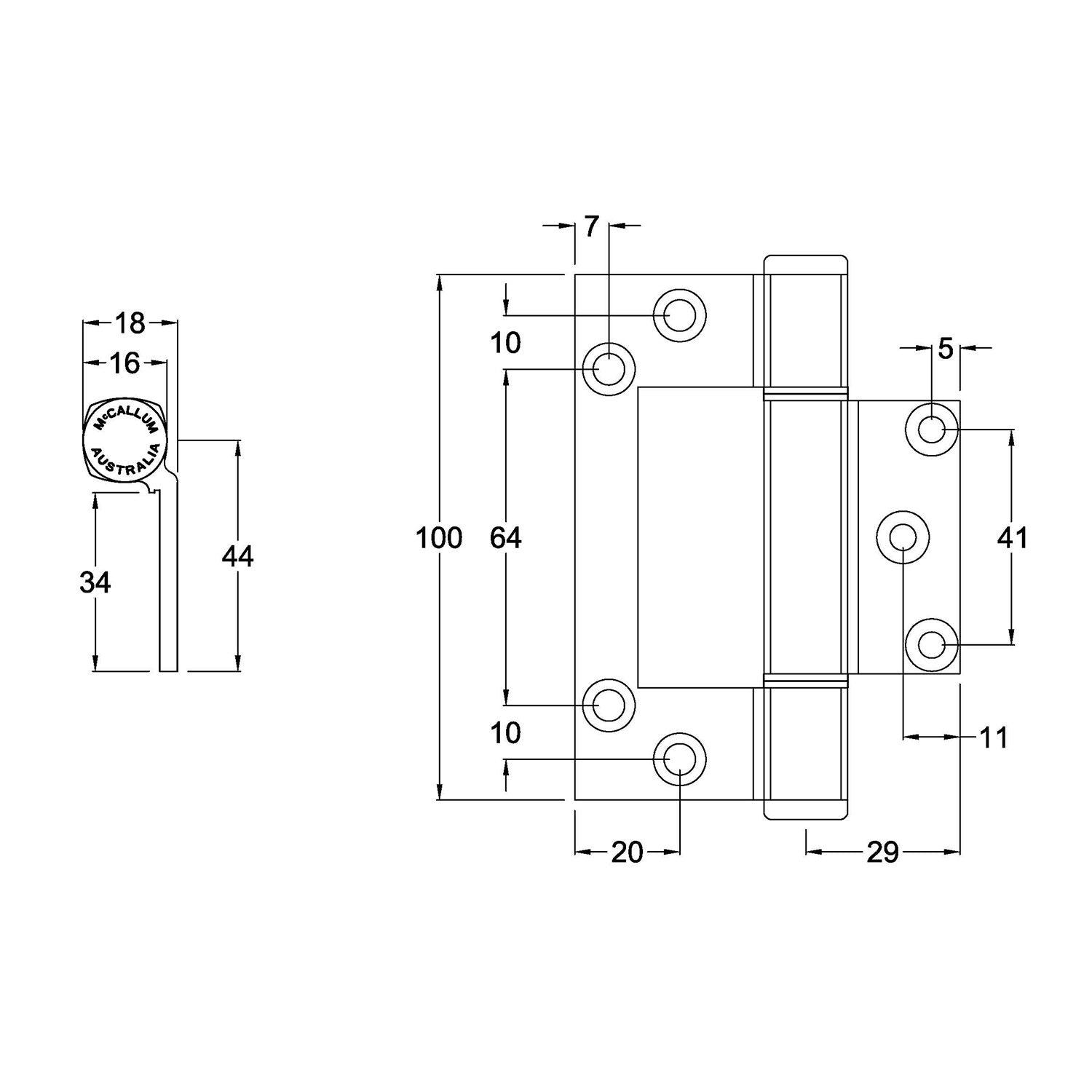

• Dimensions: 100mm x 34mm

Installation Guide Only:

• Door Thickness: Minimum 32mm
• When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required.
• Standard Door: 2040 (Height) x 820 (Width)
• Locator allows for fast fixing.

Fixing:

• Fastening Screws supplied
• Pop rivets are not recommended.

Finish:

• SNA - Satin Natural Anodised

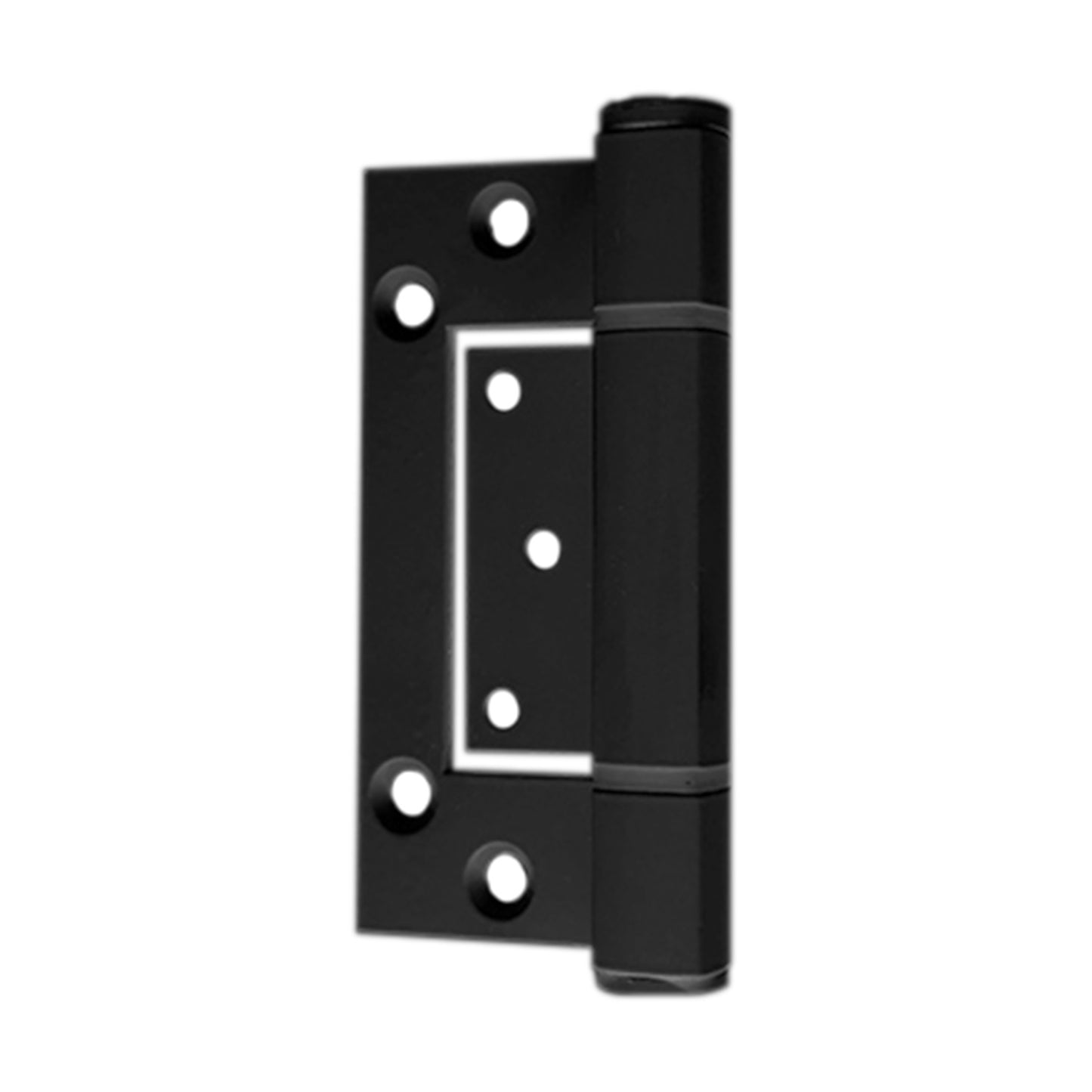

• Black - Black Powder Coat

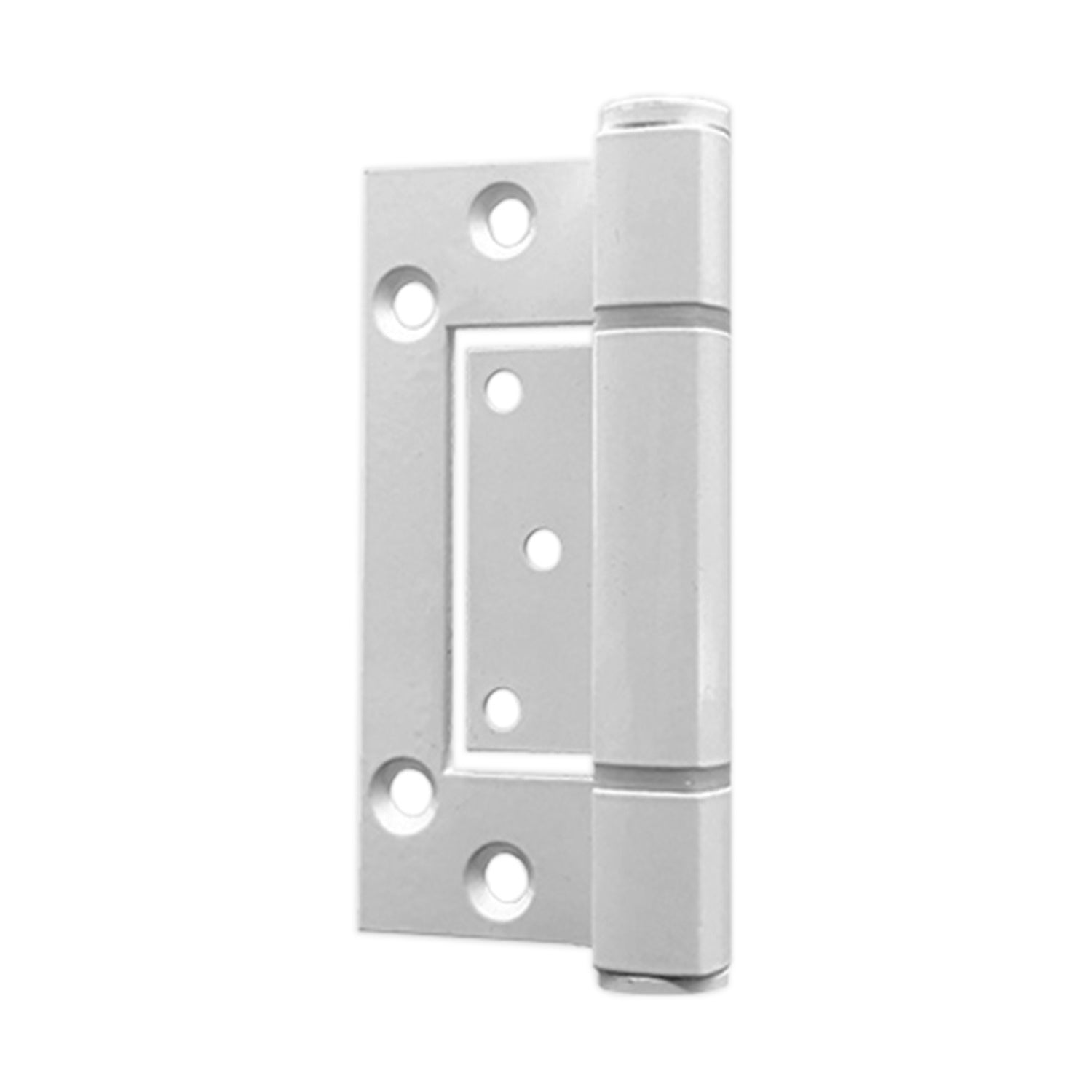

• White - White Powder Coat
