SKU: MCCA141P10

**10 Pack** McCallum Aluminum Concealed Butt Hinge Satin A141 AB4532

RRP: $139.50

$125.55
$125.55
Available:
Online: In Stock
LEAVES WAREHOUSE IN 3-5 BUSINESS DAYS
Instore: No Stock
- Please place order instore *Handling Times May Apply
Australian Owned

Australian Owned

Locally Stocked

Locally Stocked

Phone Support

Phone Support

Payments accepted:

  • Apple Pay
  • PayPal
  • Afterpay
  • Google Pay
  • Zip
View full details

Payments accepted:

  • Apple Pay
  • PayPal
  • Afterpay
  • Google Pay
  • Zip

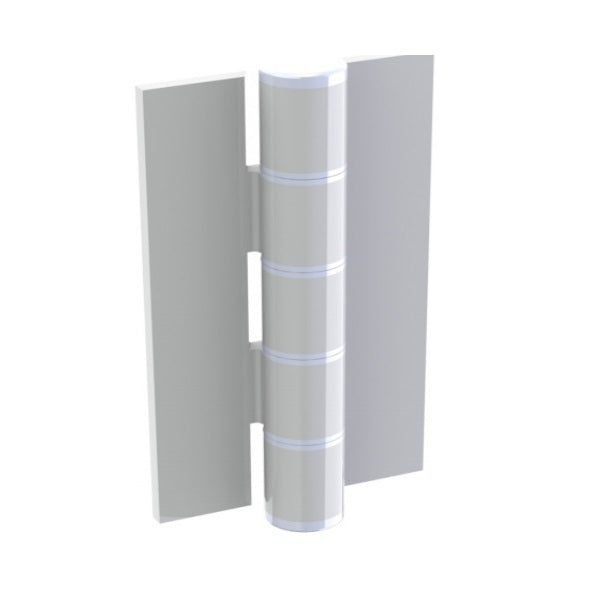

10 Pack McCallum Aluminum Concealed Butt Hinge Satin AB4532
A141

  • 10 x Hinge w/ screws

Application:

  • Suitable for Aluminum doors and partitions in medium usage
    situations

Specifications:

  • Alloy: High strength T.6 minimum tensile 254 mpa
  • Pin Dia: 4.7mm 304 Stainless Steel with machined chamfer both ends
  • Bushes: Flanged nylon
  • Knuckle: Round
  • Aluminum Endcaps: Pressed-in interference fit
  • Maximum Weight Capacity: 20 kg (turn over for further information)
  • Finish: Satin Natural Anodised

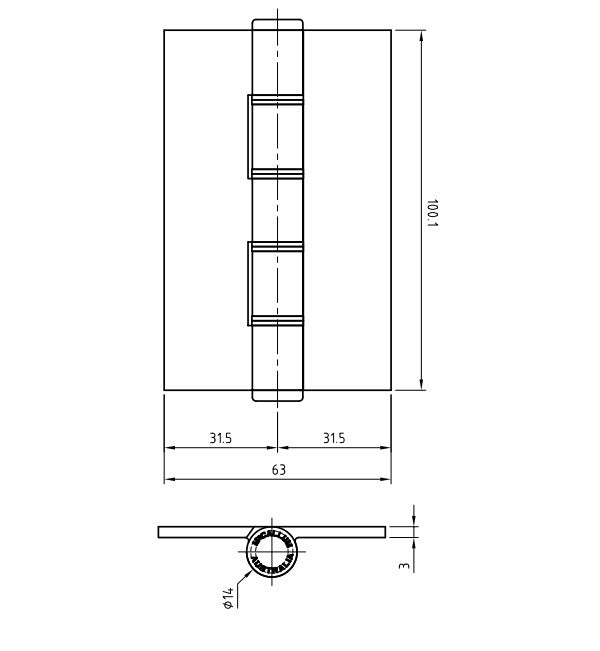

  • Dimensions: 100mm x 63mm

Installation Guide Only:

  • Door thickness: Minimum 35mm
  • When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required.
  • Standard Door: 2040mm (H) x 820mm (W)

Fixing:

  • Fastening screws not supplied
  • Concealed fix
  • Pop rivets are not recommended
