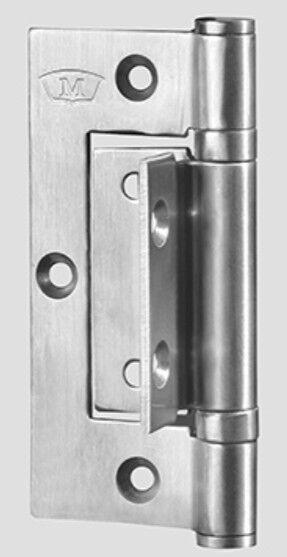

McCallum Stainless Steel Fast-Fix Hinge
S263

  • 10 x Hinge w/ screws

Application:

  • Suitable for aluminium entrance doors in medium usage situations
  • Suitable for either centre pocket or front edge glazing systems
  • Suitable for some timber door applications
  • Pre-drilling of the holes in the timber may be required

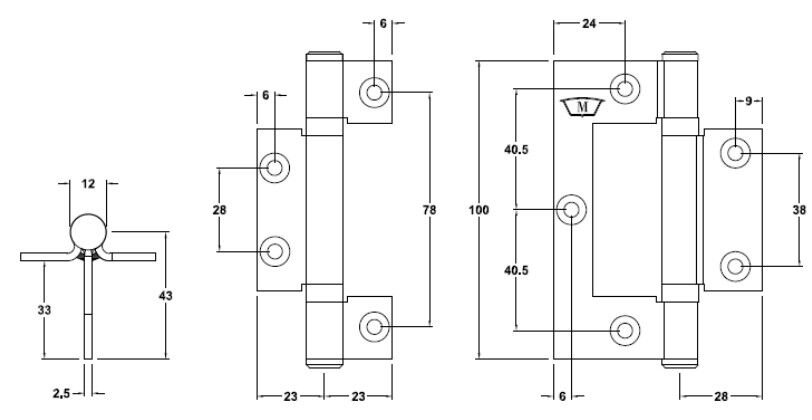

Specifications:

  • Material: 304 grade stainless steel
  • Bearings: 2 off cage & ball bearings. All 304 grade stainless steel
  • Pin Dia: 6.9mm 304 stainless steel
  • Knuckle: Round
  • Endcaps: Pressed-in interference knurled fit. 304 grade stainless steel
  • Size: 100mm

Installation Guide Only:

  • Door Thickness: Minimum 35mm.
  • When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage a fourth hinge may be required.
  • Standard Door: 2040 high x 820 wide x 50 kgs – 3 hinges.
  • Special Note: This hinge, which is 2.5mm thick, is suitable for retro fitting where standard fast-fix hinges have failed. The wing fastening prevents the hinge from opening, and allows for a greater door weight.

Fixing:

  • Fastening screws supplied
  • Two directional
  • Pop rivets are not recommended

Finish:

  • Satin stainless steel
