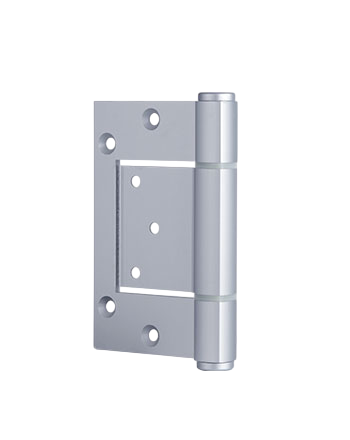

**10 Pack** McCallum Wide Throw Aluminum Interfold Hinge A155 A105MWTF

10 Pack McCallum Wide Throw Aluminum Interfold Hinge A105MWTF
A155

• 10 x Hinge

Application:

• Suitable for aluminum doors where extra throw is required
• Suitable for either centre pocket or front edge glazing systems
• Suitable for some timber door applications
• Pre-drilling of the holes in the timber may be required
• The A155 gives 15mm extra wide throw

Specifications:

• Alloy: High strength T.6 minimum tensile 254 mpa
• Pin Dia: 6mm 304 Stainless Steel with machined chamfer both ends
• Bushes: Flanged nylon
• Knuckle: Squareline - Heavy Duty
• Aluminum Endcaps: Pressed-in interference fit
• Maximum Weight Capacity: 40 kg (turn over for further information)

Installation Guide Only:

• Door thickness: Minimum 40mm
• When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required.
• Standard Door: 2040mm (H) x 820mm (W)
• Oversize Door: Turn over for further information
• Locator allows for fast fixing

Fixing:

• Fastening screws supplied
• Pop rivets are not recommended

Finish:

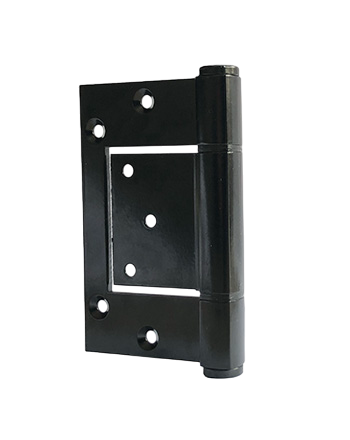

• Black - Black powder coat

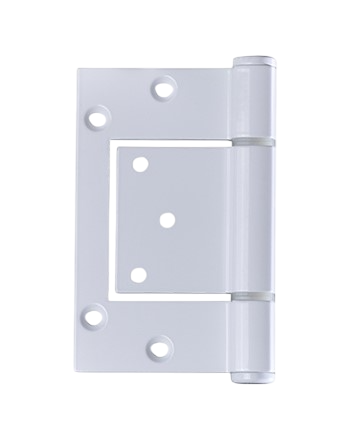

• White - White powder coat
