SKU: ASSES2003

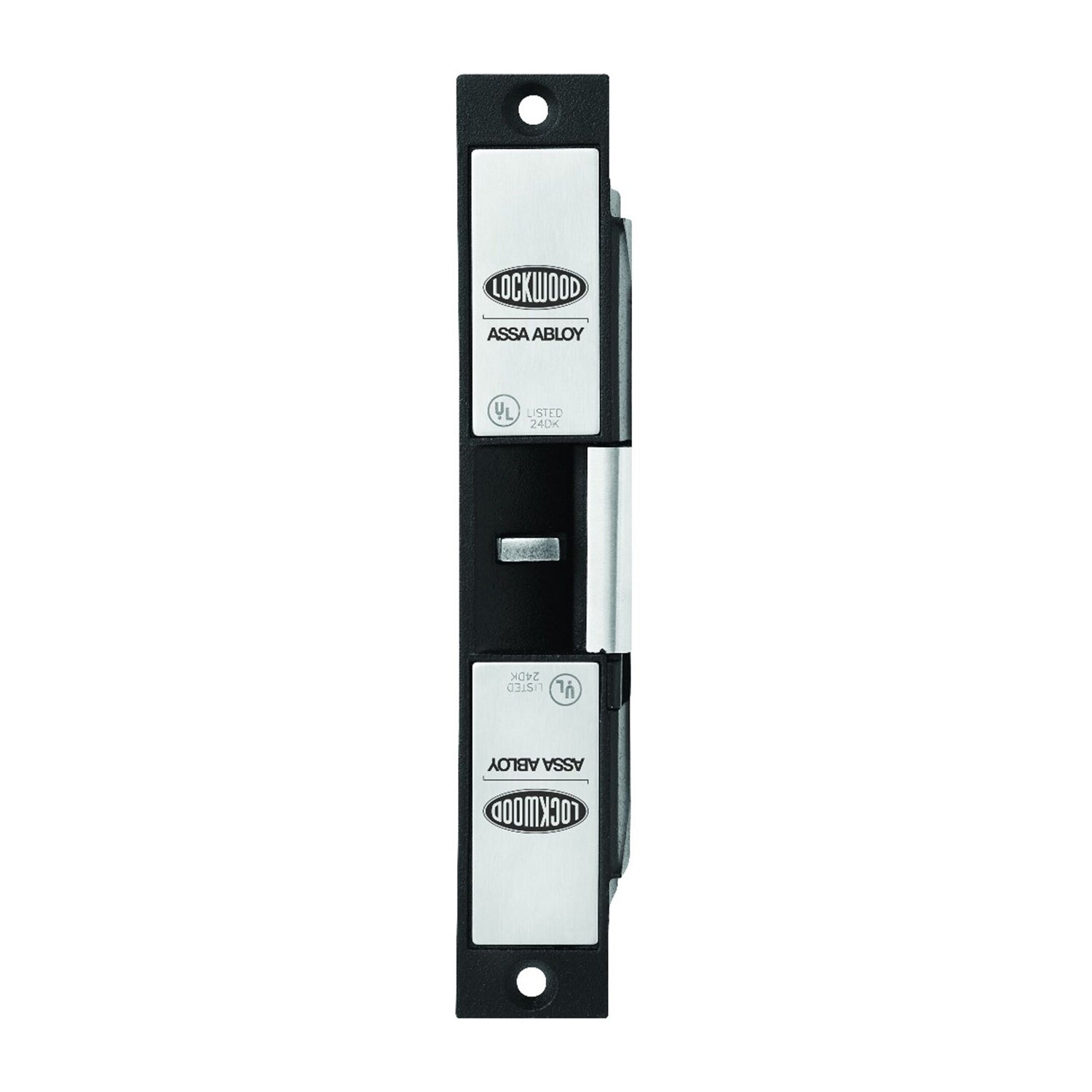

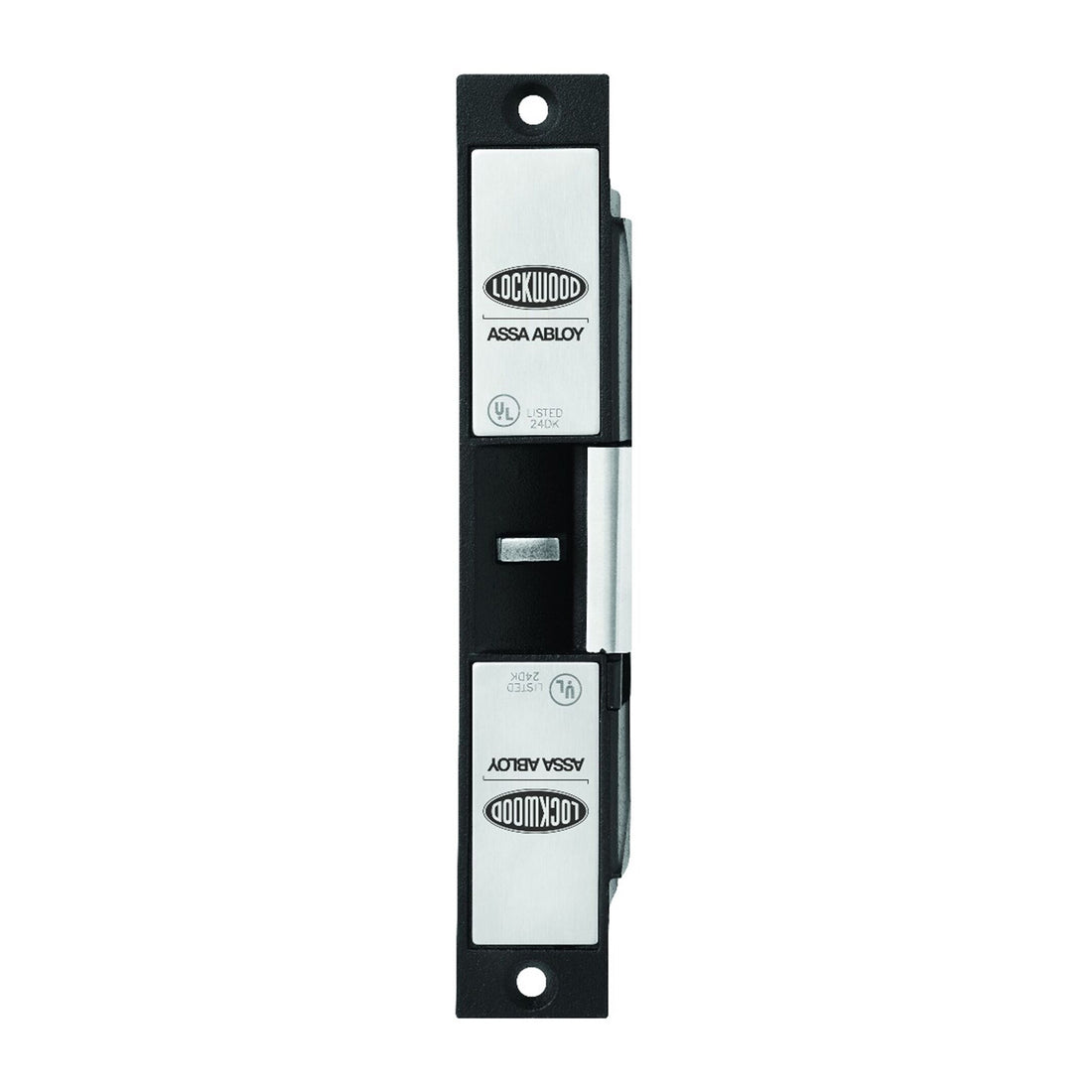

Lockwood ES200 Electric Strike 24VDC Fail Safe Non Monitored ES200-3
RRP: $673.05
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Lockwood ES200 Electric Strike 24VDC Fail Safe Non Monitored
ES200-3
PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)
This is a non-stocked item which leaves the warehouse in 4 business days after payment is made.
Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.
Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.
Features:
- High security products manufactured from stainless steel and designed for use with all access control systems
Specifications:
- Length: 176mm
- Width: 29mm
- Projection: 26.5mm
- Voltage: 24Vdc
- Holding Force: 850kg Static Strength Rating
- Endurance Cycle: tested to 1,000,000 operations
- Latch Suitable: 15mm latch bolt with 3mm door gap
- Environment Operational Temperature Range: -20 degrees C to +60 degrees C
- Material: Solid Stainless Steel Construction
- Finish: Satin Stainless Steel
