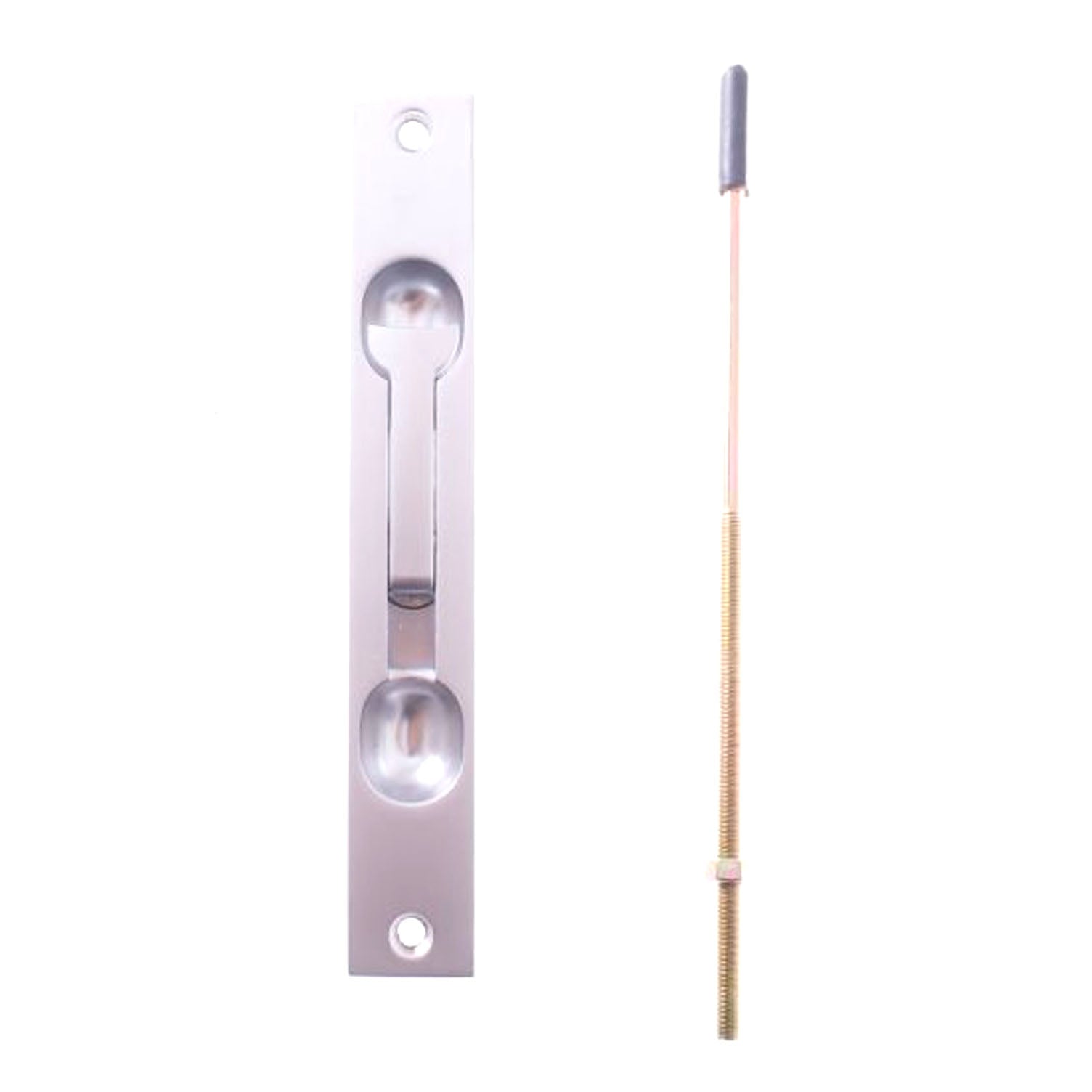

Lockwood Flush Bolt Standard Surface Mounted Nylon D Tip Satin Chrome P3512DSC

Lockwood Flush Bolt Standard Surface Mounted Nylon D Tip
P3512DSC

Flush Bolts are used most often on French doors, especially doors that lead to a kitchen, office, or living room.

Flush Bolts Function - extend into the frame head and into a floor strike to secure the inactive leaf of a pair of doors.

Features:

• The Yale flush bolt range is used for safe bolting of aluminium doors and windows
• The 7mm diameter plated steel rod provides high security and is activated by a strongly constructed die-cast zinc body and operating lever with comfortable finger grip
• The flush bolts are supplied as standard with a 300mm rod threaded for 150mm along its length, enabling the rod to be factory trimmed to suit varying window/ door sizes
• A rod guide is supplied for fitting inside the door/window frame
• Nylon D tip included
• The surface mounted model with a standard width faceplate is suitable for doors and can be mounted either on the face or the leading edge of the stile.

Specifications:

• Suits: Aluminium doors and windows
• Fixing Surfaces: Metal
• Flushbolt Throw: 16mm
• Overall Height: 172mm
• Projection: 26mm
• Finish: Satin Chrome
