Raven RP38 Door Bottom Seal Screw Bag With Alum Escutcheon Plate Set
A38CP1
Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:

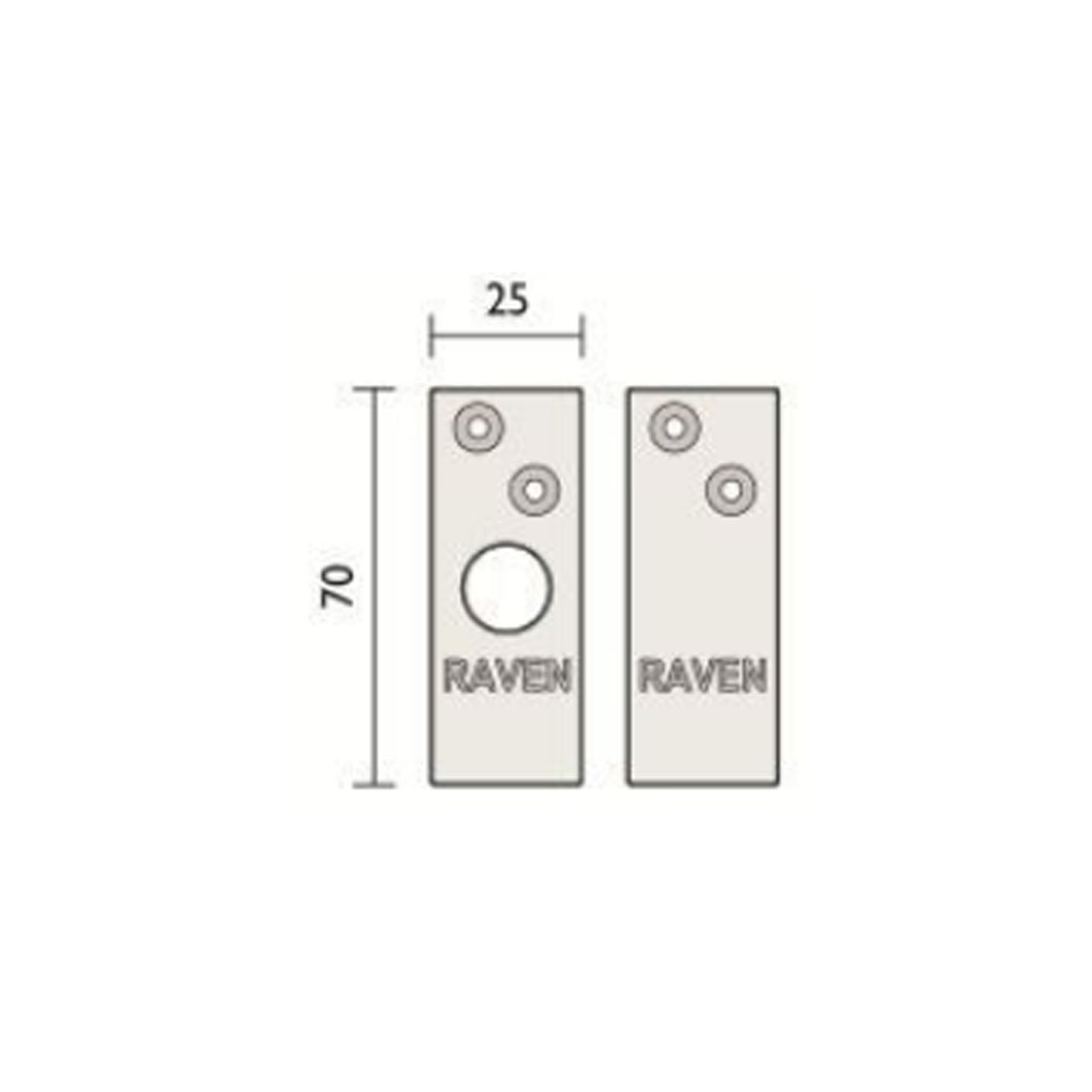

- RP38 Screw Bag & Escutcheon Plate - replacement part for the RP38 and RP38si door bottom seals.

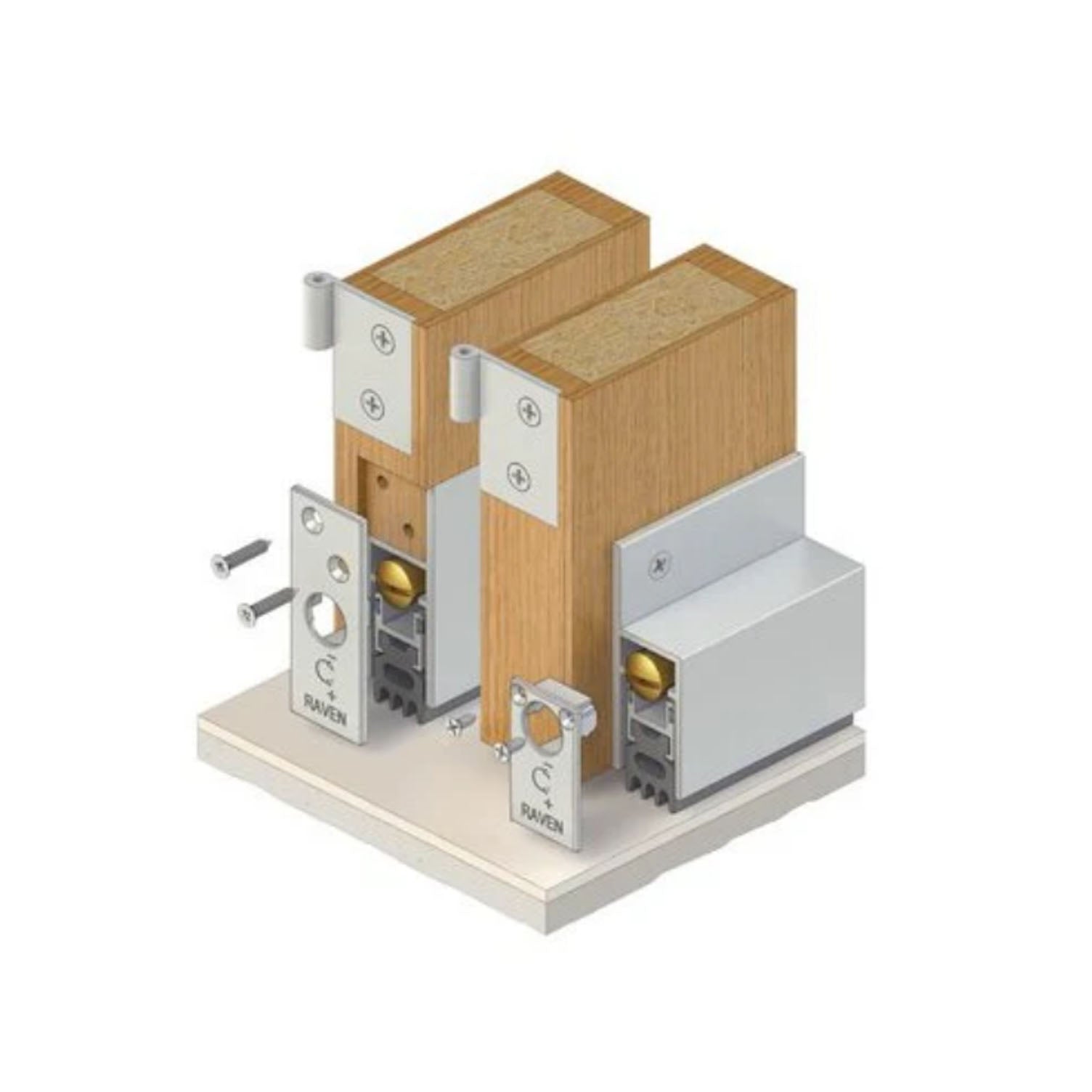

- Set includes srews, plugs and escutcheon plates for both face mounted and semi morticed applications.
Raven RP38 Door Bottom Seal Screw Bag With Alum Escutcheon Plate Set
A38CP1
Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:
- A heavy duty, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened.
- It is self levelling and reversible for left and right handed operation.
- Acoustically designed, it features an EPDM foam gasket for acoustic door applications and doubles as a kick plate when semimorticed.
- Operated automatically by pressure against the door jamb or stop on its adjustable brass strike.
Specifications:
- Location: Face mounted or semimorticed into bottom of single and double butt hinged doors. For semimortice minimum door thickness of 50mm for rebated meeting stiles and 40mm for plain meeting stiles is required. The RP38 can also be face mounted to the bottom of metal doors.
- Min/Max Gap: 3mm to 13mm.
- Fixing: Screw fix. Colour matched escutcheon plates and zinc plated, cross recess head S.T. screws supplied.
- Finish: Clear Anodised
Ratings/Compliant:
- Acoustic AUS/NZ:NCC Spec. F5.5.
- UK/EU:Approved Document E. Rated to BS EN ISO 717-1.
- Fire & Smoke AUS/NZ:NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
- UK/EU:Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
- FRL & FRR-/240/30 and FD240.
- EnergyNCC Pt. 3.12.3.3 & J3.4.
- Design for Access and MobilityHigh efficiency mechanism to assist with the closing force requirements detailed in AS1428.1.
- DurabilityTested to over 1,000,000 operating cycles without failure.
