SKU: AMBULANTPACK5
Ambulant Disabled Door Privacy w/ Indicator Bolt Latch & Lever Set Matt Black
RRP: $233.64
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Ambulant Disabled Door Privacy w/ Indicator Bolt Latch & Lever Set Matt Black
Privacy used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)
Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

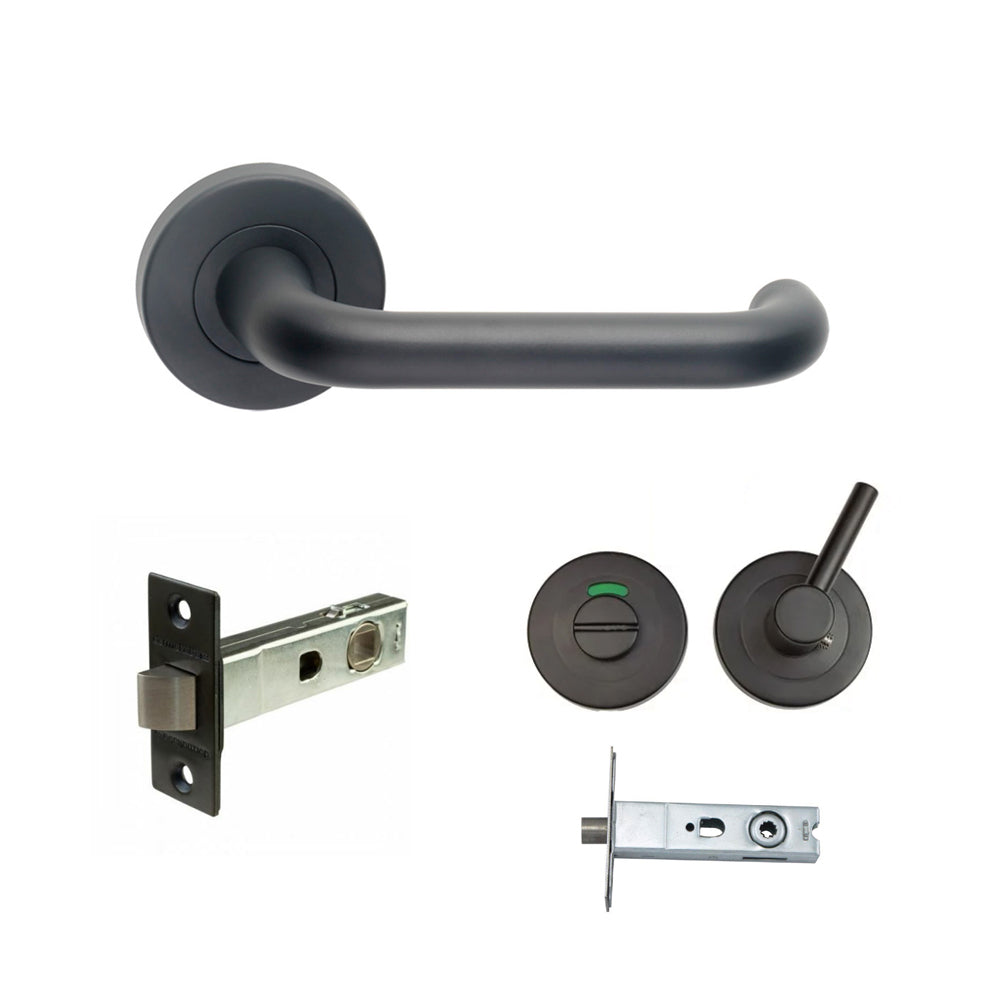

Includes:
- 1 x Dormakaba Vision Door Lever Handle on Round Rose Passage Black (8300/18BLK)
- 1 x Dormakaba 2202BLK Tubular Latch Through Fix 60mm Matte Black (9400000200209)
- 1 x Mappas Disabled Privacy Indicator Bolt Morticed 60mm Backset Matt Black (DIBBLK)

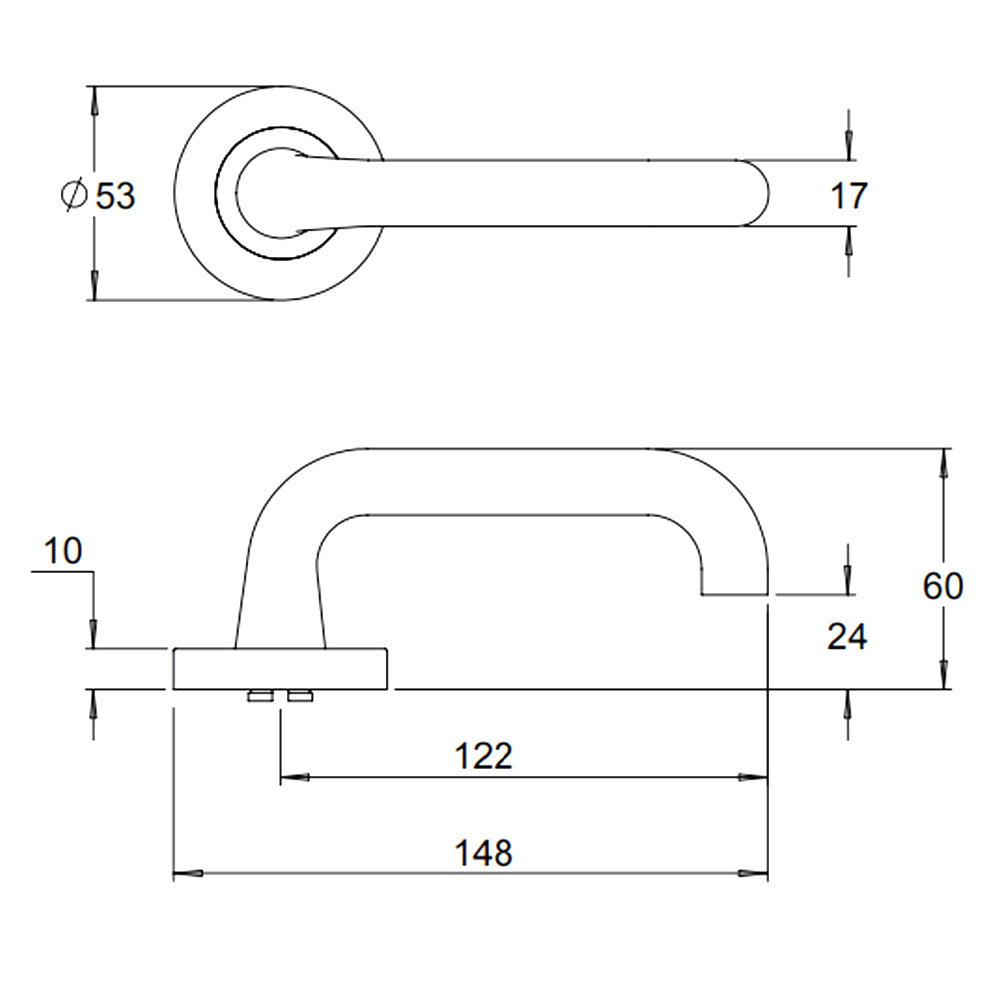

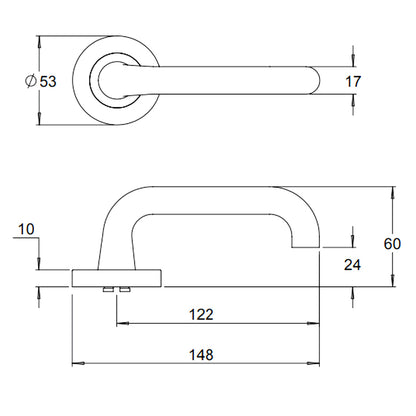

Dormakaba Vision Round Passage Door Handle Leverset
8300/18BLK
Features:
- High quality cost effective range of handles for light commercial and domestic applications
- Well suited for residential applications where aesthetics and contemporary appeal is desired
- Levers are fitted onto a 53mm rose mounting plate which has a slim 10mm projection of the door face
- Constructed using a die cast rose and lever and is designed to suit dormakaba passage mortice locks and tubular latches but can be equally compatible with other Australian tubular latches
Specifications:
- Material: Die-cast zinc
- Diameter Rose: 53mm
- Thickness: 10mm
- Fixing Centres: 41mm
- Fixings: Designed with a through fixing and perforated screws to allow a quicker installation. Fixings can be in a horizontal or vertical pattern.
- Handing: Roses are non-handed and in most cases can be reversed (refer to lever designs for more information).
- Fire Rating: Vision 8000 series furniture is fire rated and comply with AS1905.1.
- Function: Passage
- Finish: Black
- Sold as Pair

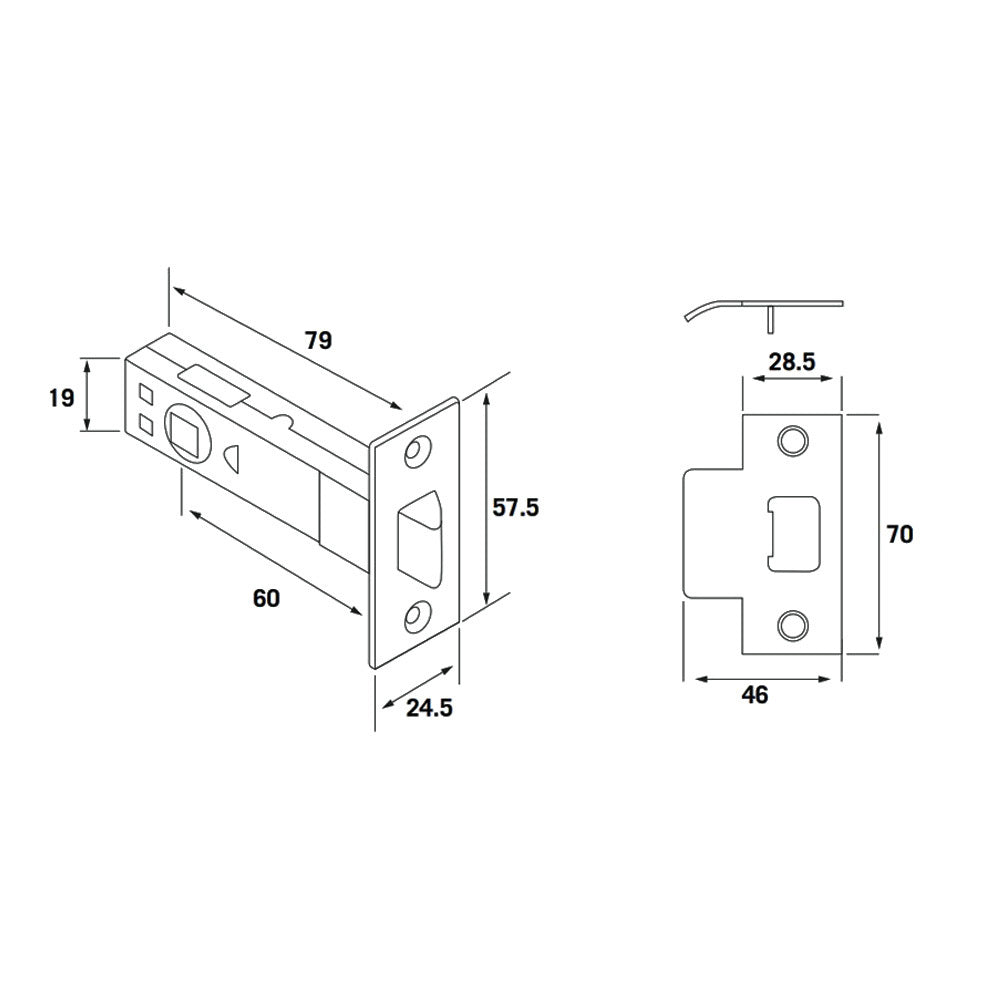

Dormakaba 2202BLK Tubular Latch Through Fix
9400000200209
- Suitable for residential and office applications
Features:
- Zinc plated steel housing with stainless steel latch bolt, face plate and strike plate as standard
- Solid 7.6mm stainless steel spindle hub for added strength and designed to suit horizontal fixed door furniture with 41mm fixing centres
- Strike plate with anti rattle feature
Specifications:
- Passage Latch: Yes
- Faceplate Width: 24.5mm
- Backset: 60mm
- Spindle Type: 7.6mm Square
- Material: Zinc plated steel housing and Stainless Steel latch
- Finish: Matt Black
Mappas Disabled Privacy Indicator Bolt
DIBBLK
Features:
- For commercial and residential facilities
- Emergency release with disibilty turn
- Disabled compliant
- Extended lever
Specifications:
- Door Thickness: 35mm - 45mm
- Backset: 60mm
- Finish: Matt Black
