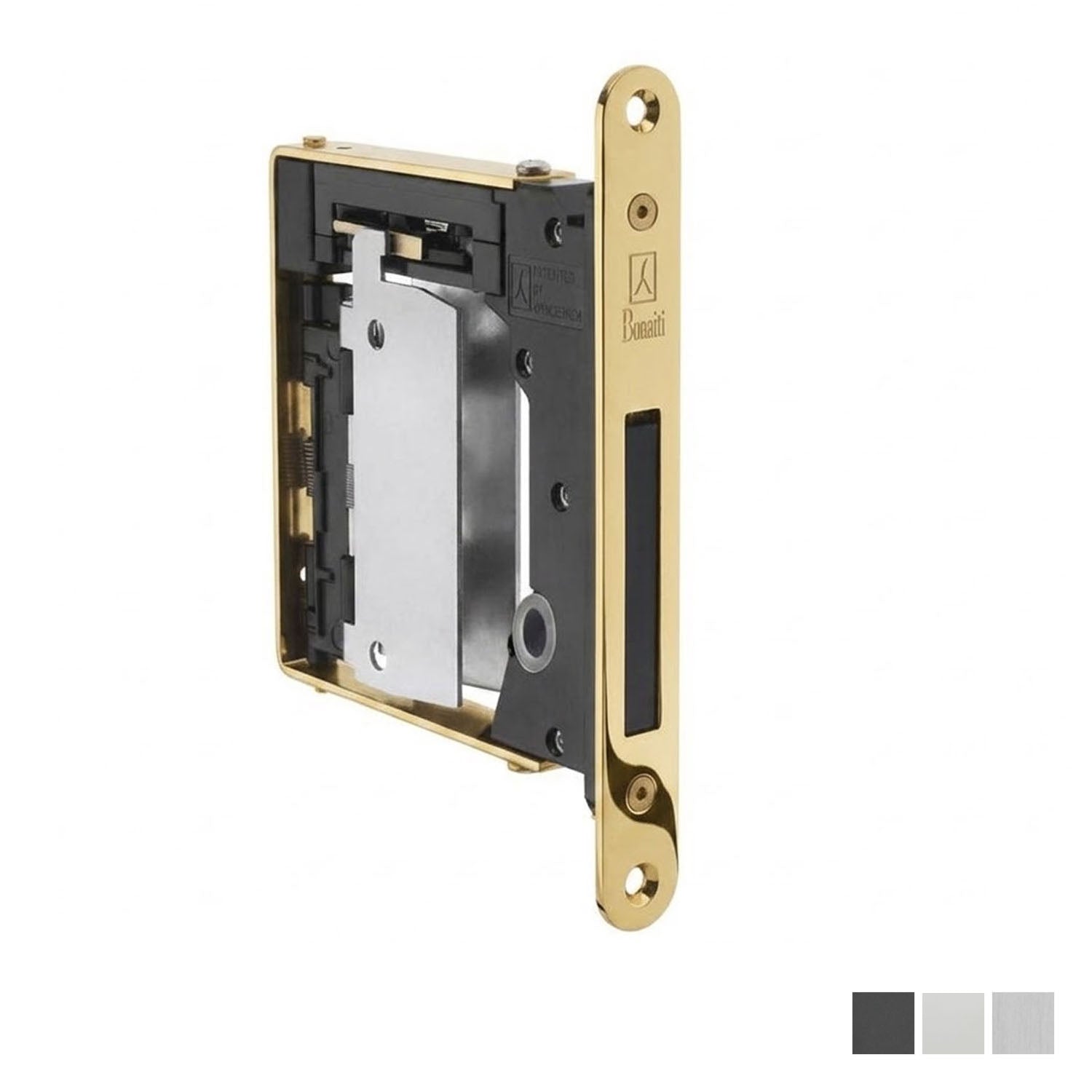

Bellevue Bonaiti Magnetic Handle Free Latch Passage - Available in Various Finishes

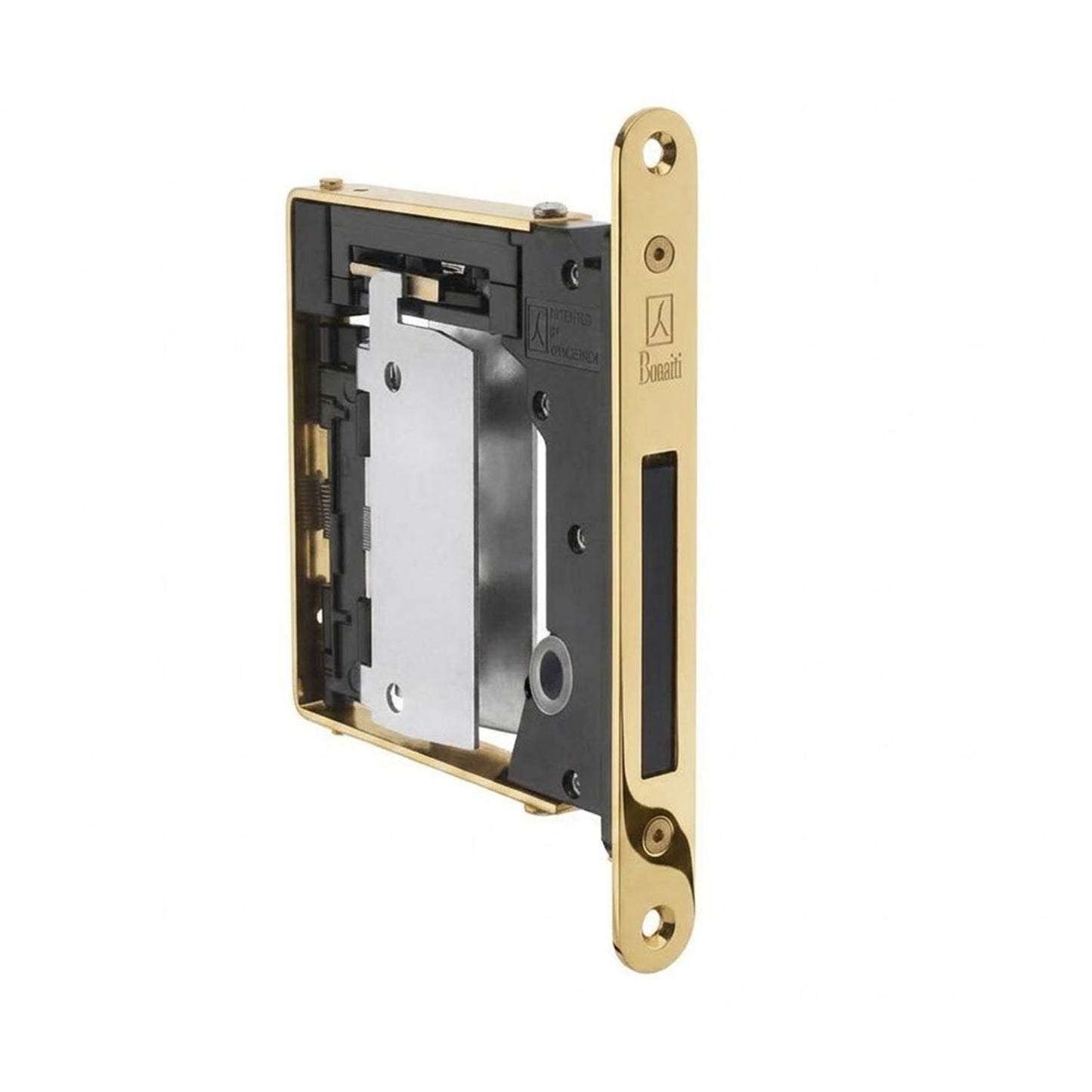

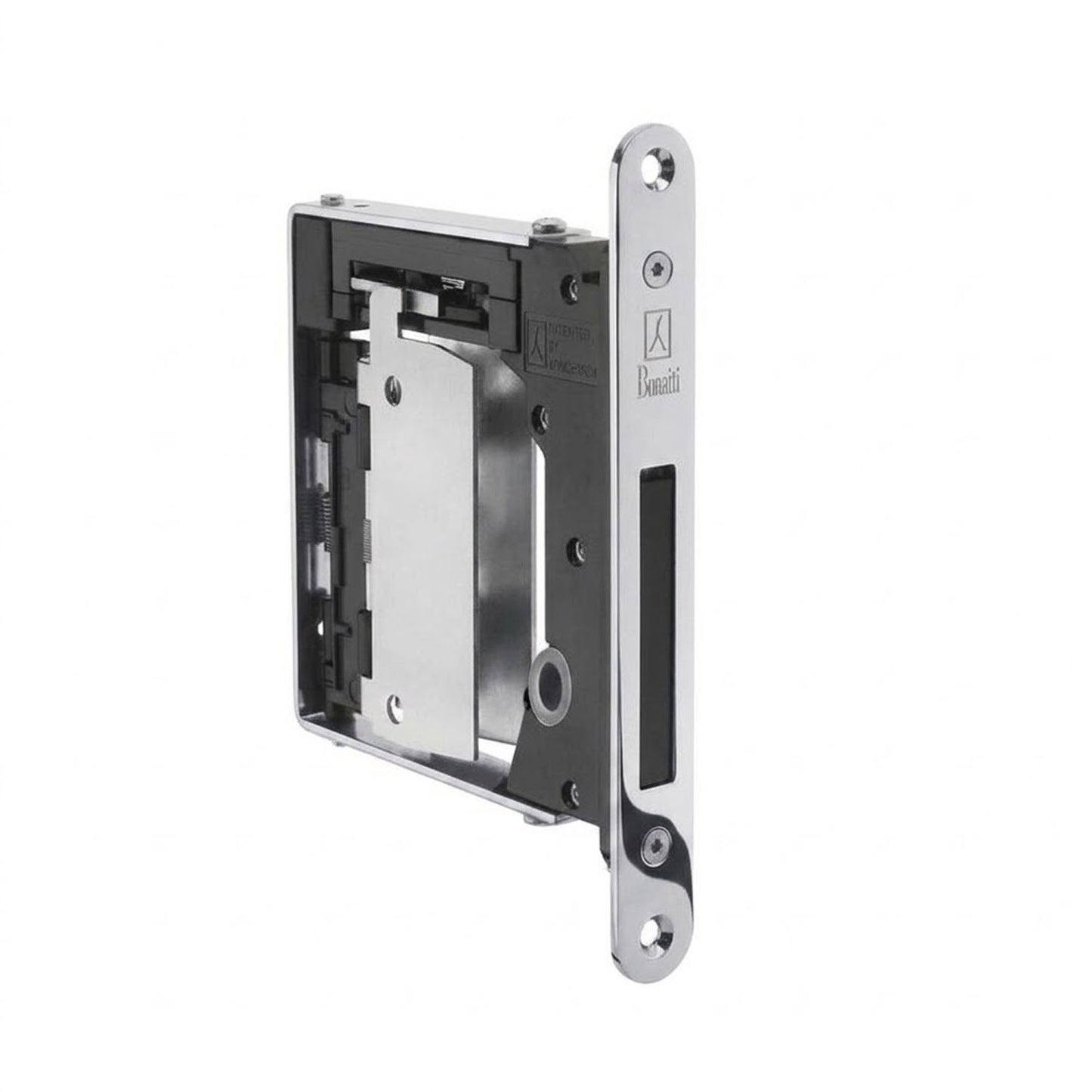

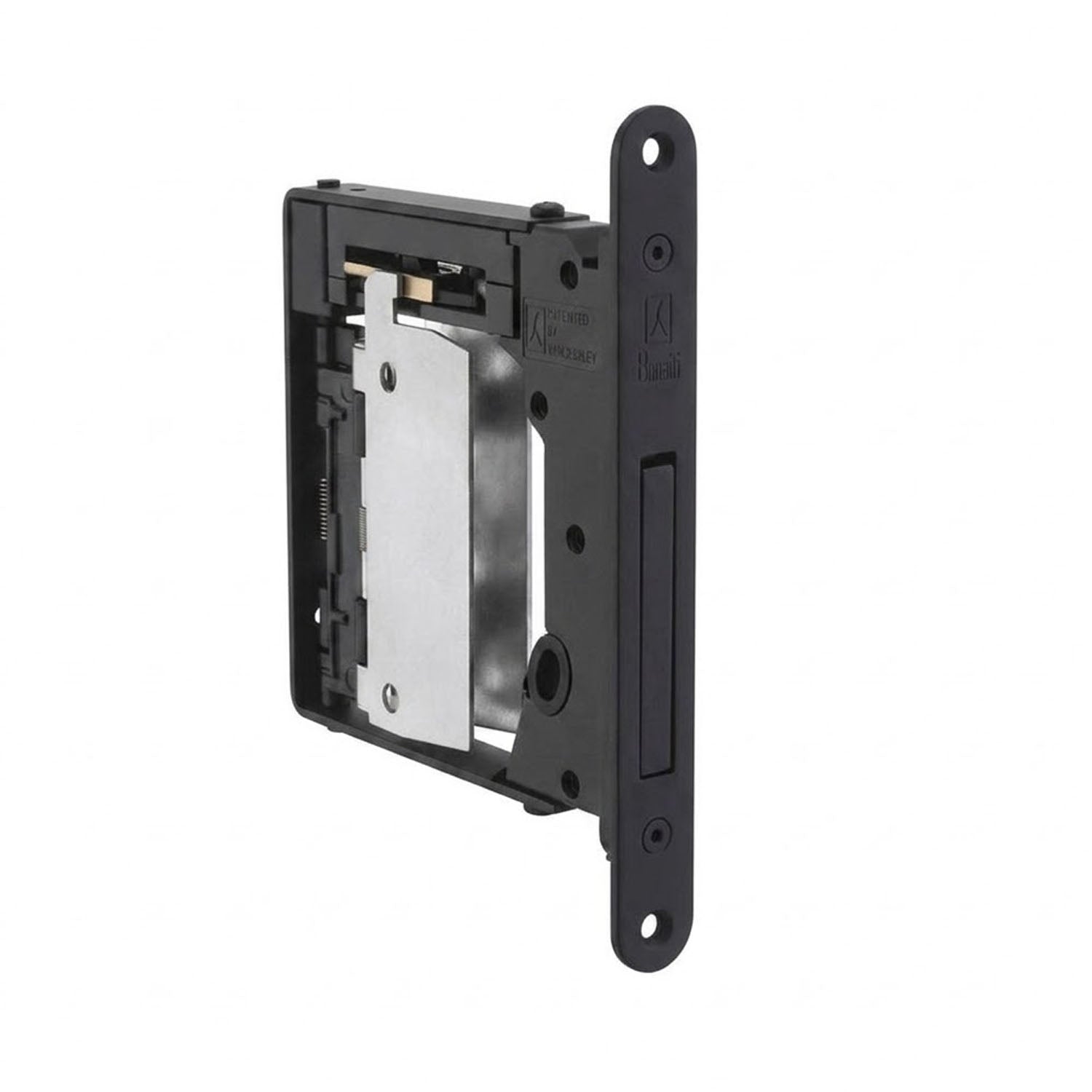

Bellevue Bonaiti Magnetic Passage Latch

Magnetic Passage Latch is a door-latching mechanism that uses a magnet to automatically hold the door closed. It is designed for doors that require latching but not locking, allowing free passage from either side

Magnetic Passage Latch Function - provides automatic, quiet door latching with unrestricted passage, making it suitable where privacy or key locking is not required.

Features:

• No visible door handle, latch tongue, or striker plate
• Creates a smooth wall and door appearance
• Silent magnetic operation
• Suitable for doors that need to blend seamlessly into surrounding walls
• Ideal for contemporary architectural and concealed-door applications
• Handle-free magnetic privacy latch for swing doors
• Designed to be used for internal privacy swing doors
• 100% made in Italy
• Milling tool provided to rent or buy for on site fitting

Specifications:

• Type: Magnetic Handle-Free Passage Latch
• Application: Internal passage swing doors
• Minimum Door Thickness: 36mm
• Material: Steel
• Operation: Push flap to release; magnetic self-latching when door closes
• Visible Latch Tongue: No
• Visible Striker Plate: No
• Cycle Testing: Over 400,000 cycles
• Door Swing: Non-handed; suitable for doors swinging in either direction
• Overall Height: 190mm
• Overall Width: 129.5mm
• Plate Width: 22mm
• Thickness: 2mm
• Avaiable Finish:
  • Black
  • Polished Brass
  • Polished Chrome
  • Satin Chrome
