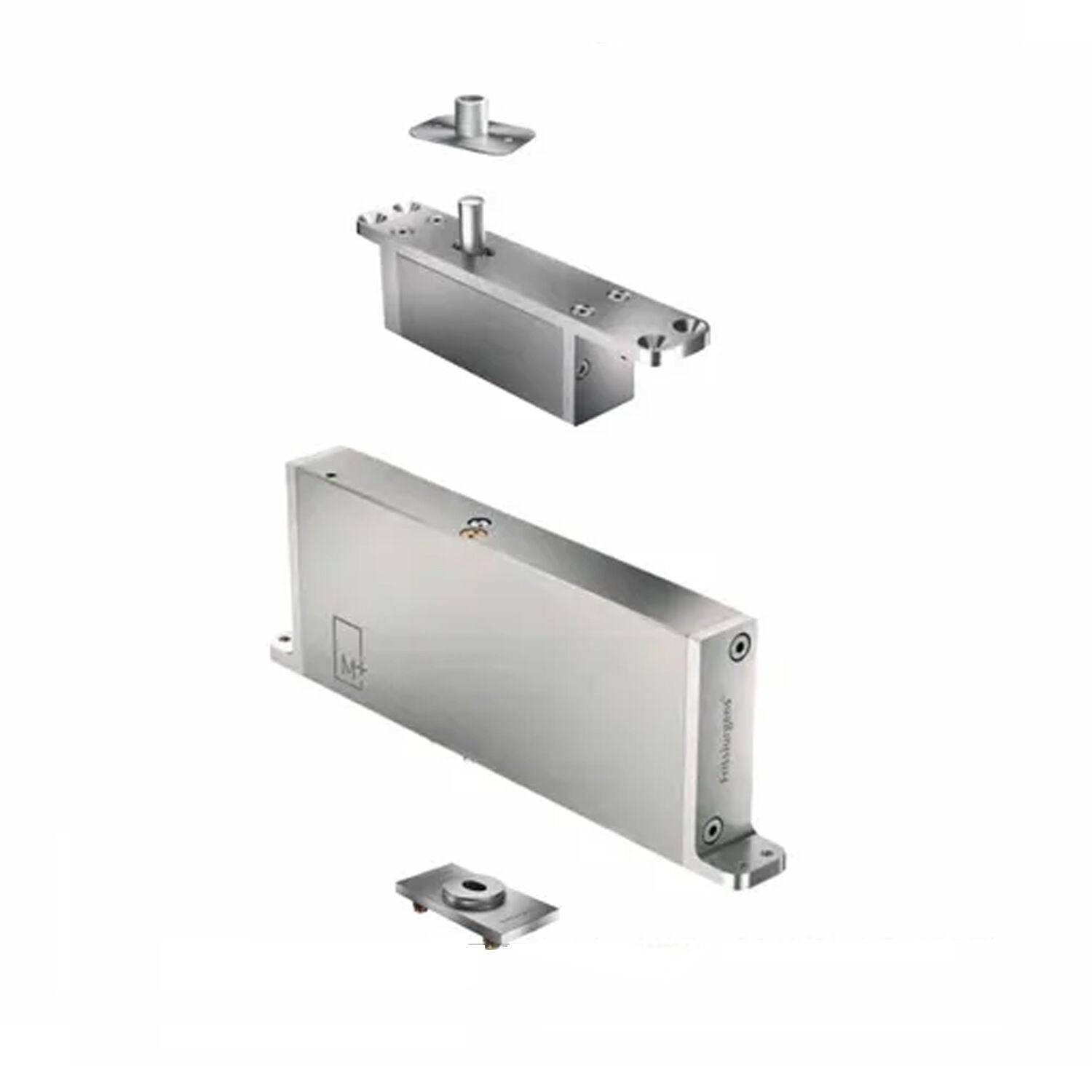

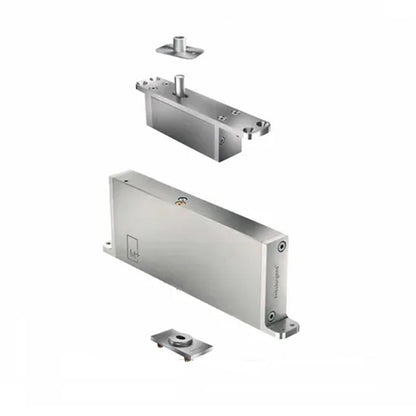

Bellevue Full Kit System M+E 70mm Min Pivot Point Flush Squared Floor Plate SSS FJS/STM+70EFSSS

FritsJurgens Full Kit System
FJS/STM+70EFSSS

Pivot Sets are commonly used for large and heavy doors that could pose challenges for traditional hinge systems. These doors might include oversized commercial doors, industrial doors, and entrance doors in public buildings.

Pivot Set Function - used to facilitate the rotation or pivoting of doors around a vertical axis. Pivot sets are designed to enable doors to swing smoothly and efficiently while providing stability and support. They are often used in situations where traditional hinges may not be suitable due to the size, weight, or design of the door.

Features:

• System M+ is an adjustable, self-closing pivot hinge
• It provides Latch Control to ensure proper latching, guaranteed control over the movement of doors from 20kg to 500kg, and extra adjustability for the movement of the door
• Supplied With Fixings

Specifications:

• Material: 420 Stainless Steel Surgical Grade
• Maximum Door Weight: 20kg to 79kg
• Maximum Door Height: Unlimited
• Maximum Door Width: 470mm To 3769mm
• Door Rotation:
  • Double-acting: 180 degrees
  • Single-acting: 90 degrees
• Hold Positions: 90 degrees
• Door Thickness: 40mm Minimum
• Maximum Door Weight: Class E 20kg - 349kg
  Pivot Point Adjustable: 70mm Minimum
• Hold Open: Standard
• Finish: Satin Stainless Steel
