SKU: LSCRH6100PB
Brava Metro Entrance Lever Set Tiebolt Fixing 60/70mm Polished Brass RH6100PB
RRP: $100.32
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Brava Metro Entrance Lever Set
RH6100PB
Entrance Outside Function - key locks and unlocks exterior lever
Entrance Inside Function - lever free at all times, snib inside locks and unlocks outside lever.
Features:
- Commercial grade
- Tiebolt concealed fixing
- Silca LW5 profile
- Incorporates the popular PD 8221 barrel
- Compatible with most restricted keying systems
- Boxed and colour coded
- 2 keys supplied

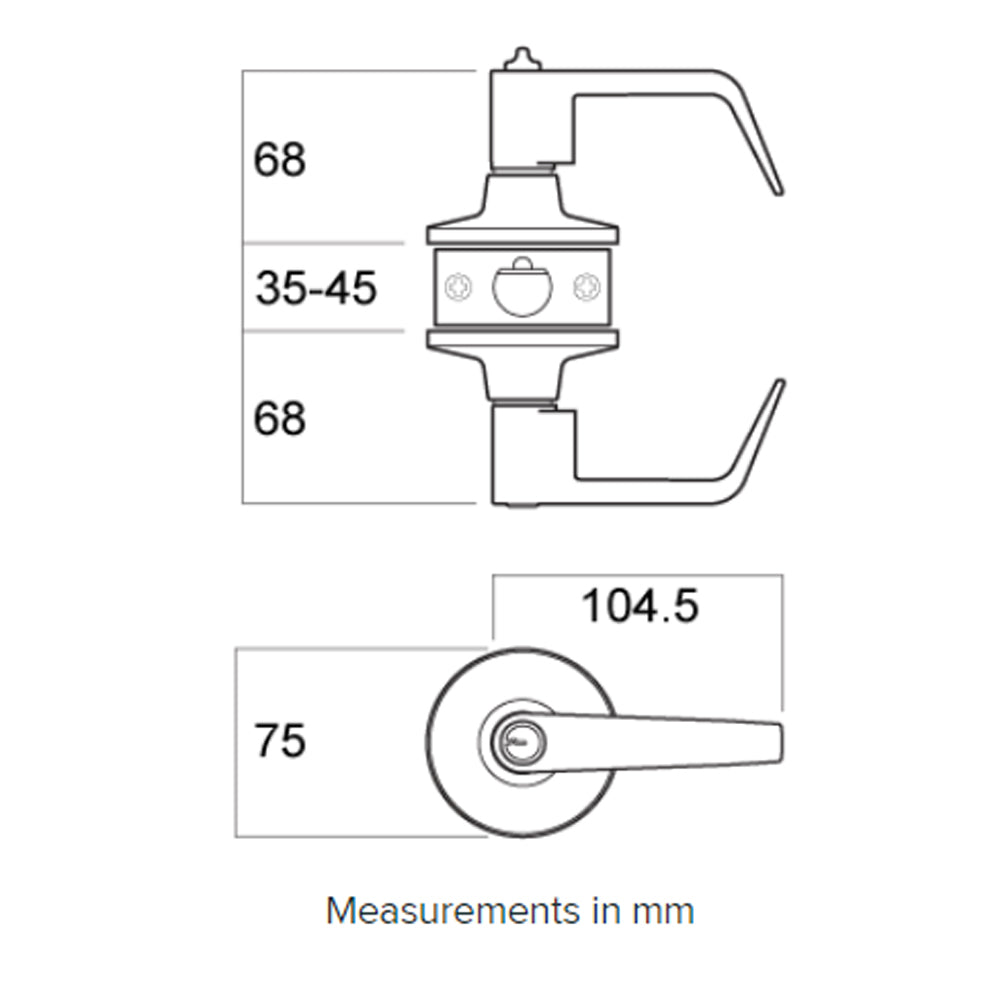

Specifications:
- Door Thickness: 35mm - 45mm
- Backset: 60 or 70mm adjustable latch
- Max. Lever Projection (distance may not include turnsnib): 68mm
- Strike: 70mm x 28mm x 2mm
- Latch Face Plate: 57mm x 25mm
- Cylinder: LW5 profile
- Door Handing: Non-handed levers
- Rose: 75mm
- Finish: Polished Brass
Compliance:
- Fire Rated: Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets
