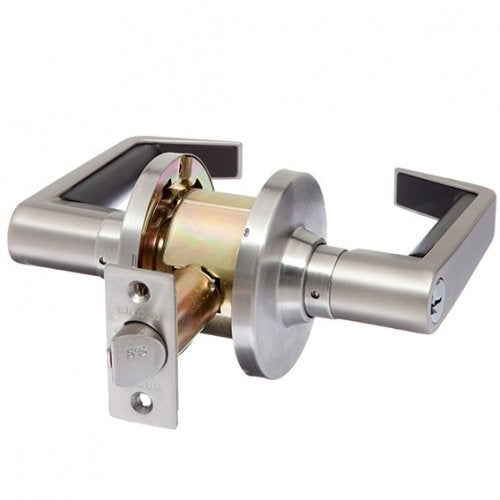

Brava Metro Glass Door Lever Set EL6011SC70 Fire Rated 70mm Satin Chrome

Brava Metro Glass Door Lever Set
EL6011SC70

BRAVA Metro EV6000 series glass door leverset. Commercial grade glass door leverset with external clutching lever.

Glass door function:

• Outside key locks and unlocks both levers
• Inside key locks and unlocks both levers

Additional info:

• Fire rated to 2 hours
• Cylindrical fixing
• Silca LW4/LW5 profile
• Incorporates the popular PD 8221 barrel
• Compatible with most restricted keying systems
• 2 keys supplied
• Finished in satin chrome

Features:

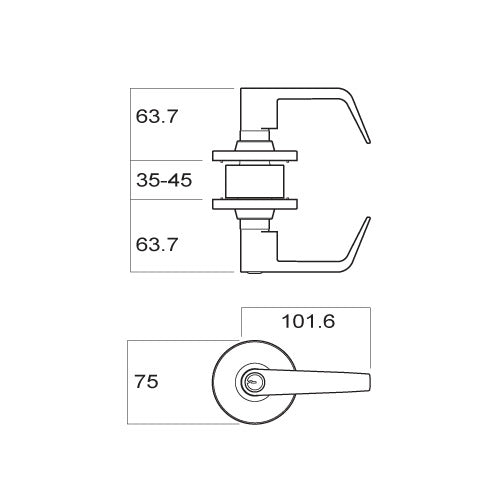

• Door thickness: 35-45mm
• Backset: 70mm
• Max. lever projection: 63.5mm (distance may not include turnsnib)
• Strike: 70mm x 27mm x 1.2mm
• Latch: 70mm
• Latch face plate: 57mm x 25mm
• Cylinder: LW5 profile (C4B)
• Door handing: Non-handed levers
• Rose: 75mm

Accessories*:

• BREXT6 - Brava Latch Extension Tube 57mm Long for 70-127mm Backset
• BREXT7 - Brava Latch Extension Tube 67mm Long for 60-127mm Backset
• BREE034SS - Brava Urban Rebate Kit
• FS3000 - BDS Scar Dress Plate
• 09351310 - BDS Packer 3mm
• 09351216 - BDS Packer 6mm
• 09351311 - BDS Packer 10mm

*Accessories are sold separately
