Brava Metro Passage Door Lever Set Fire Rated 60/70mm Polished Chrome RH6R82PC

Brava Metro Passage Door Lever Set
RH6R82PC

Passage Lever is ideal for interior hallways, closets and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

• BRAVA Metro RH6000 series commercial grade tiebolt passage leverset.

Features:

• Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
• Tiebolt concealed fixing

Specifications:

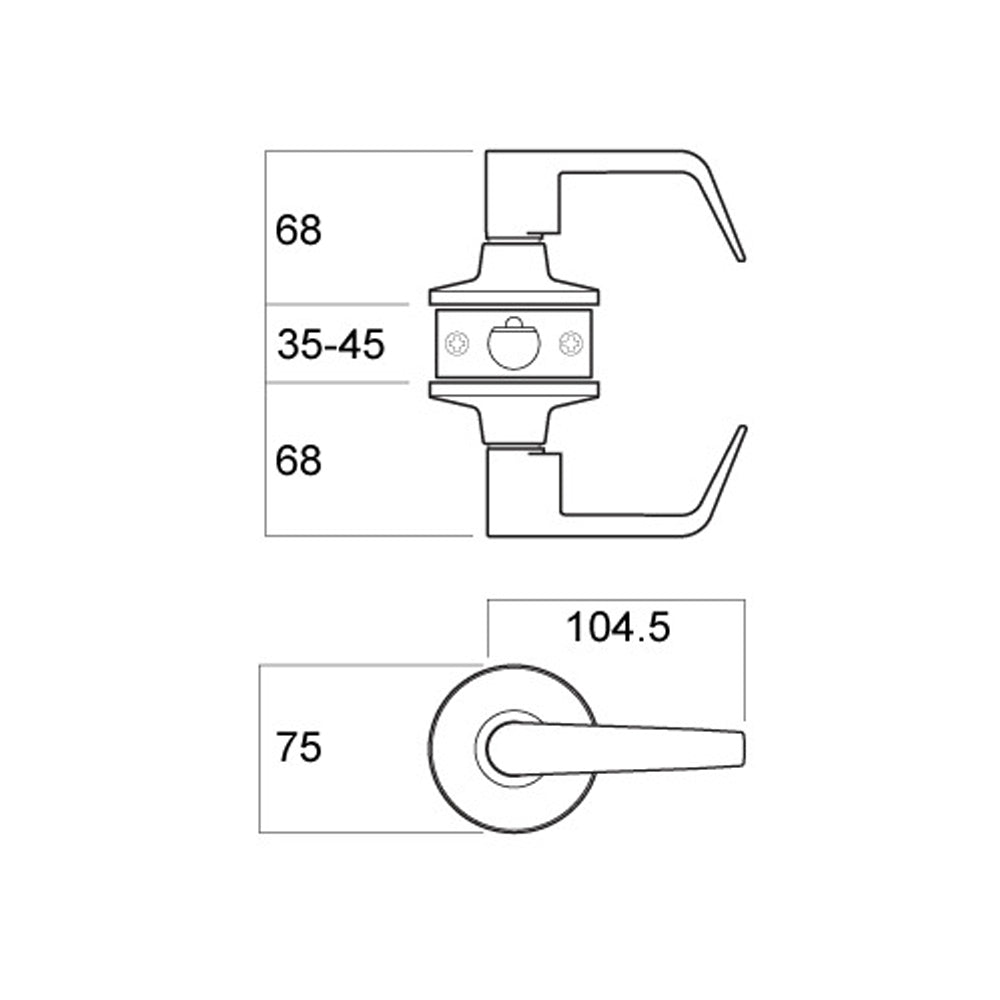

• Door Thickness: 35mm - 45mm
• Backset: 60/70mm (adjustable latch)
• Max. Lever / Knob Projection: 68mm
• Strike: 70mm x 28mm x 2mm
• Latch: 60/70mm (adjustable)
• Latch Face Plate: 25mm x 57mm
• Door handing: Non-handed levers
• AS1428.1 Compliant Lever (AS1428.1CO): No
• Clutching Levers: No
• Function:    Passage
• Lock Grade: Commercial
• Lock Type: Tiebolt
• Rose Diameter: 75mm
• Finish: Polished Chrome
