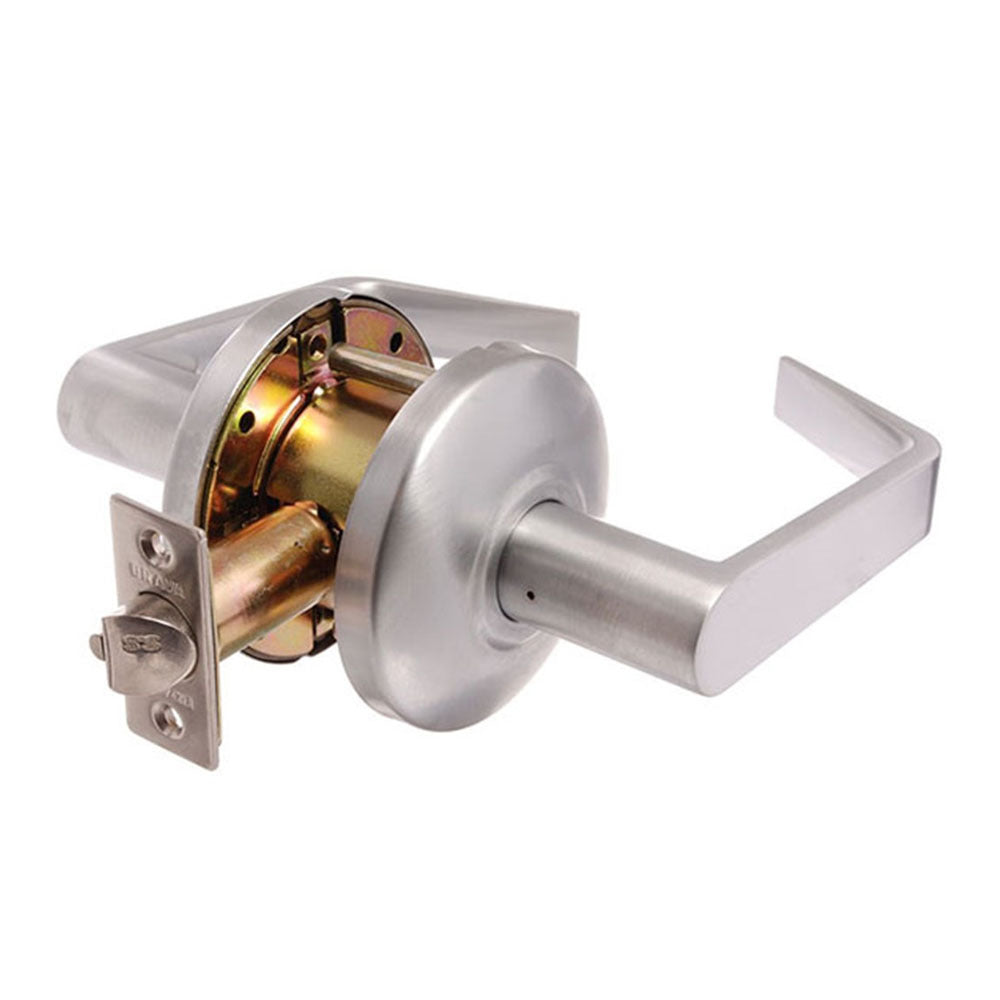

Brava Metro Passage Door Lever Set
EV6082SC70
Passage is ideal for interior hallways, closets and other rooms that don't need privacy locks.
Passage Function - Both outside and inside levers are always free.
- BRAVA Metro EV6000 series commercial grade Passage Leverset.
Features:
- Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets
- Screw post to prevent lock rotation are removable
- Charlotte lever design
- Cylindrical fixing

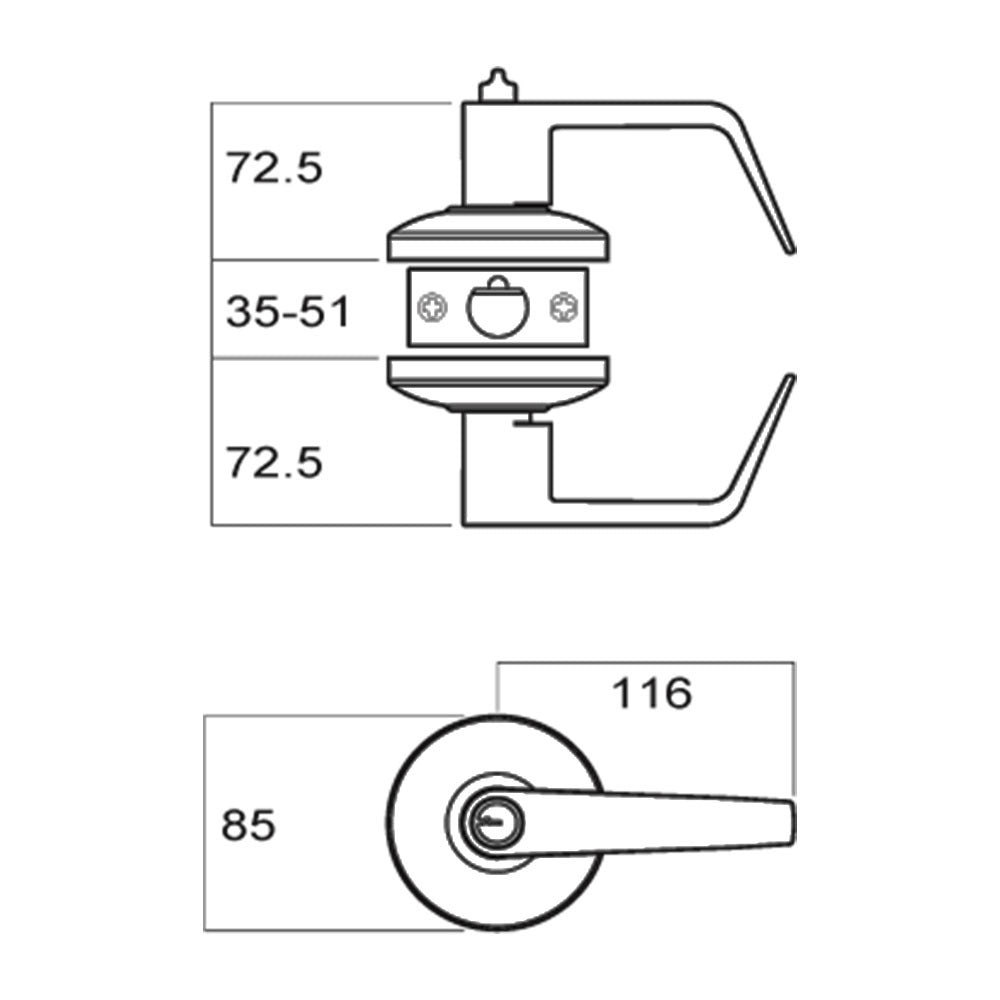

Specifications:
- Door thickness: 35mm to 51mm
- Backset: 70mm
- Max. Knob Projection: 72.5mm (distance may not include turnsnib)
- Strike: 28mm x 70mm x 2mm
- Latch: 70mm (12.7mm throw)
- Latch Face Plate: 57mm x 25mm
- Door handing: Non-handed levers
- AS1428.1 Compliant Lever: No
- Clutching Levers: No
- Lock Grade: Commercial
- Lock Type: Cylindrical
- Rose Diameter: 85
- Function: Passage
- Finish: Satin Chrome
