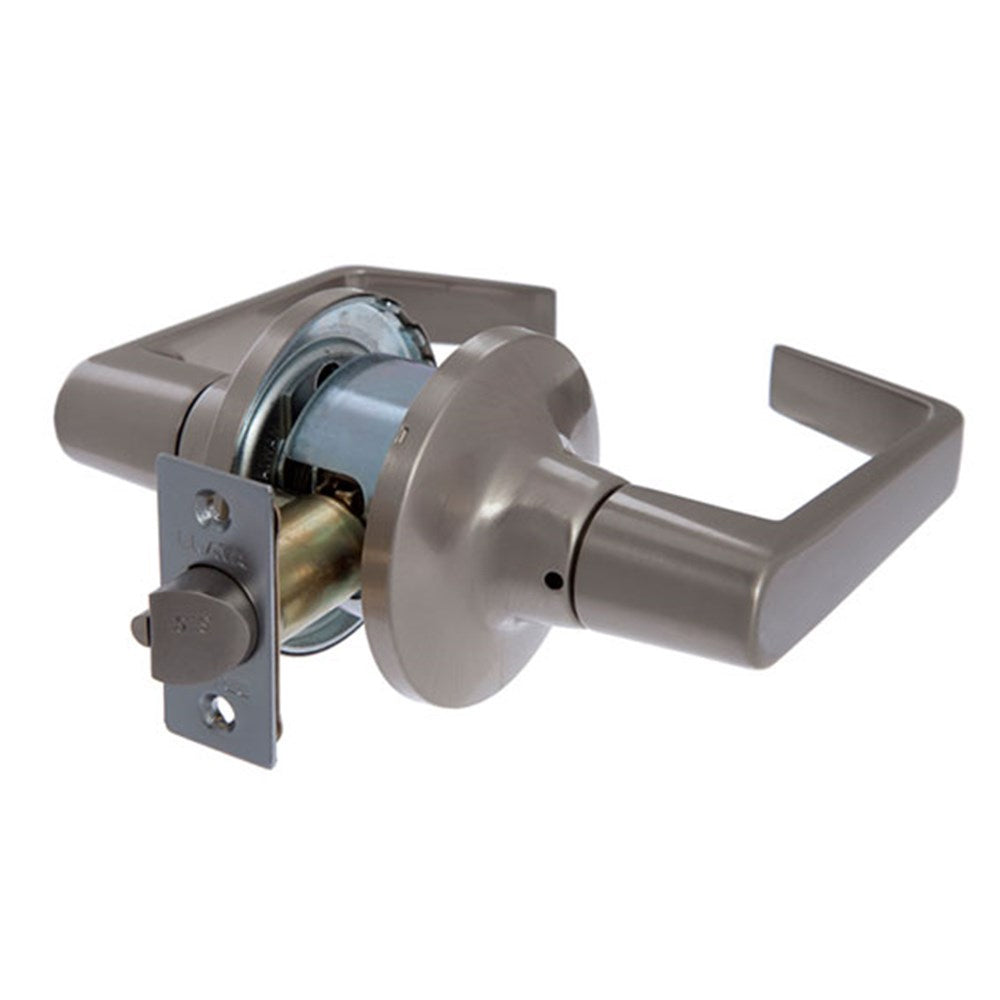

Brava Metro Passage Lever Set
RH6082SC
Passage ideal for interior hallways, closets and other rooms that don't need privacy locks.
Passage Function - Both outside and inside levers are always free.
- BRAVA Metro RH6000 series commercial grade tiebolt passage leverset.
Features:
- Tiebolt concealed fixing
- Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

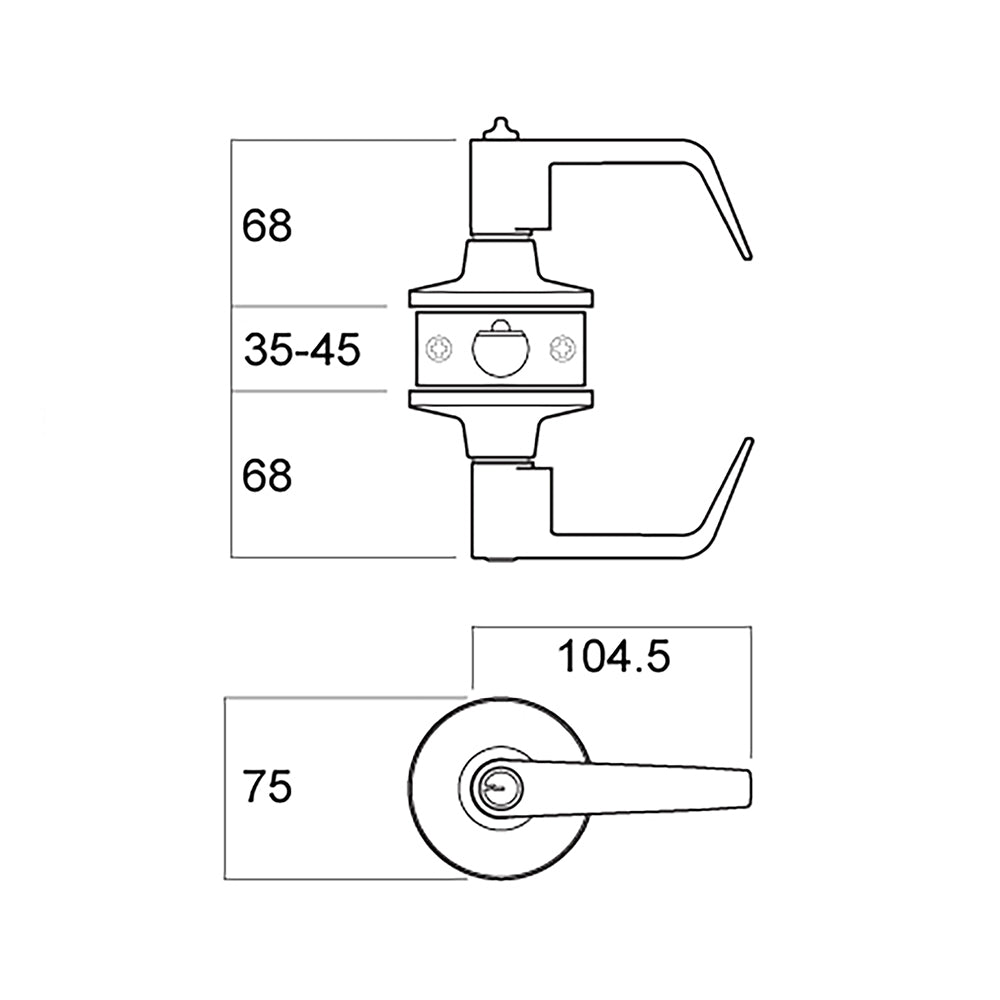

Specifications:
- Door Thickness: 35mm to 45mm
- Backset: 60mm to 70mm (adjustable latch)
- Max. Lever / Knob projection: 68mm (distance may not include turnsnib)
- Strike: 70mm x 28mm x 2mm
- Latch: 60mm to 70mm (adjustable)
- Latch Face Plate: 25mm x 57mm
- Rose Diameter: 75mm
- AS1428.1 Compliant Lever: No
- Clutching Levers: No
- Function: Passage
- Lock Grade: Commercial
- Lock Type: Tiebolt
- Finish: Satin Chrome
Brava Metro Passage Lever Set
RH6082SC
Passage ideal for interior hallways, closets and other rooms that don't need privacy locks.
Passage Function - Both outside and inside levers are always free.
- BRAVA Metro RH6000 series commercial grade tiebolt passage leverset.
Features:
- Tiebolt concealed fixing
- Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
Specifications:
- Door Thickness: 35mm to 45mm
- Backset: 60mm to 70mm (adjustable latch)
- Max. Lever / Knob projection: 68mm (distance may not include turnsnib)
- Strike: 70mm x 28mm x 2mm
- Latch: 60mm to 70mm (adjustable)
- Latch Face Plate: 25mm x 57mm
- Rose Diameter: 75mm
- AS1428.1 Compliant Lever: No
- Clutching Levers: No
- Function: Passage
- Lock Grade: Commercial
- Lock Type: Tiebolt
- Finish: Satin Chrome
SKU
LSCRH6082SC
Barcode #
9329673114588
